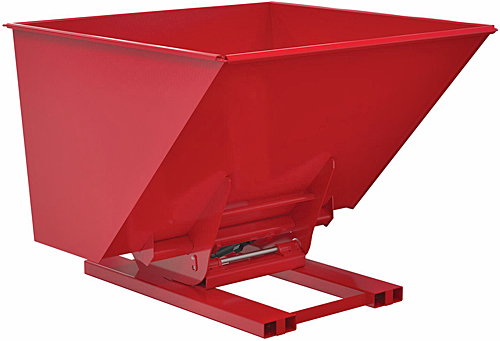

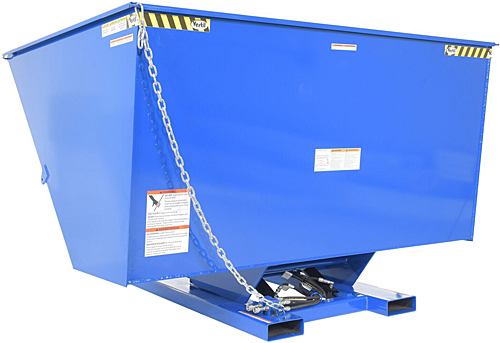

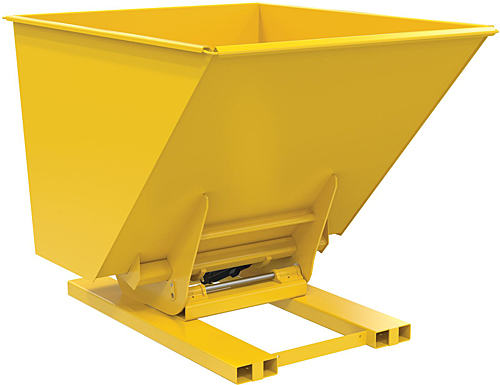

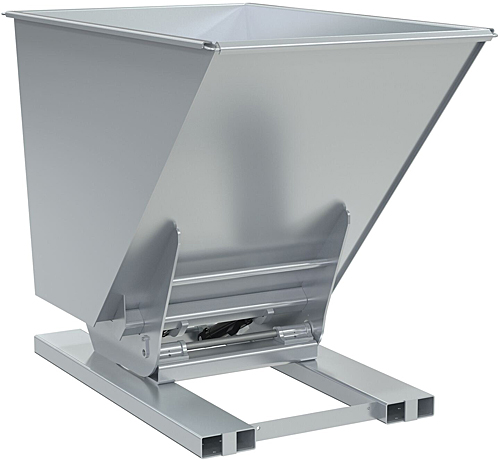

Vestil Hydraulic Self-Dumping Hoppers are designed for easy and fast dumping from the forklift cabin. These hydraulic hoppers connect to the forklift using the hydraulic hose hookup, allowing the forklift driver to dump the hopper and bring it back to the upright position, using the forklift levers. Models are available with capacities ranging from 1½ to 3 cubic yards, and can handle loads weighing up to 6,000 LBS. These forklift dump hoppers aid in complying with OSHA 29 CFR 1910.178(m)(5)(iii) since the fork lift operator stays at the forklift controls when dumping. The built-in fork pockets measure 7½"W x 2½"H on 28" centers. Vestil Hydraulic Self-Dumping Hoppers are built from 8-gauge steel with a powder coat finish for durability. Powder coat blue finish comes standard - other colors & galvanizing available - please contact HOF for information & pricing.
Vestil D-series Hydraulic Hoppers are built to order with an estimated lead time to leave the warehouse of 50 business days.
Specifications:
- Uniform Capacity: 6,000 LBS
- 1½ to 3 Cubic Yard Model Available - See Chart Below

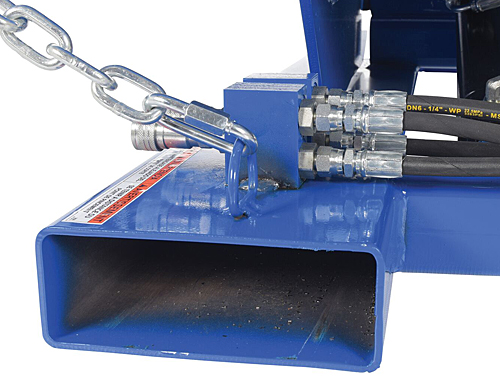

- Hydraulic hose connectors allow dumping using forklift levers
- Usable fork pockets measure 7½"W x 2½"H on 28" centers
- Includes safety chain for securing hopper to forklift
- Made of 8-gauge steel with durable blue powder coat finish
Optional Casters (see options below)
When casters are ordered with hopper, quick-install caster pads are factory-welded to the base of the hopper.
The weight of the hopper must be subtracted from the rated caster capacity to calculate usable caster capacity.
When using casters, the maximum hopper capacity is the lower of the hopper capacity or the caster capacity.
Optional Heavy-Duty Poly Hopper Lids:
Keep the contents of hoppers out of sight for a cleaner appearance with our Hopper Lids. Click on link or photo below to view selections & order.
Optional Colors - Contact HOF For A Quote (Galvanized Models Also Available)
Other Options (see options below)
- Welded Leak Proof Option: Model LEKP
- Welded Leak Proof Option With 2" Threaded Drain Plug (located in left corner): Model D-DPLG-2
- (4) welded lifting lugs (one on each corner): Model LUG
- High visibility yellow extensions add 15-1/16" of steel mesh to the top of sides and back of hopper.
