Vestil EHLTS Shorty Lift Tables

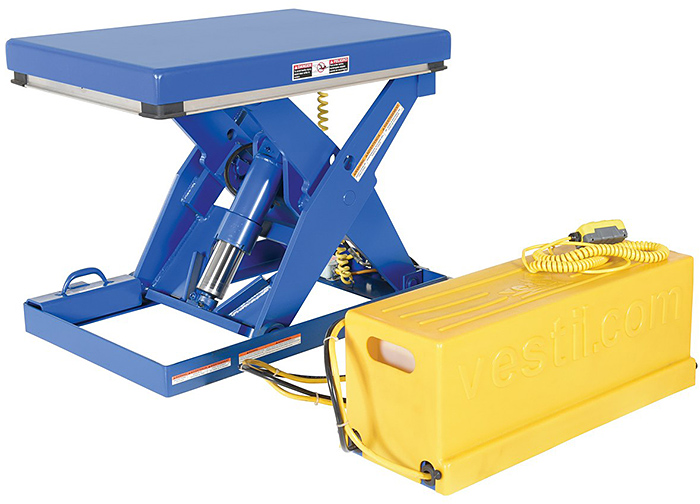

Vestil EHLTS Short Scissor Lift Table
Vestil Accordion Skirting
Vestil RRC-2PB Remote Control
Vestil EHLTS-SCALE
Vestil EHLTS-PROGRAM, programmable height control
Back to List
$3,164.00 - $6,726.00
SKU: EHLTS-2436-2-31

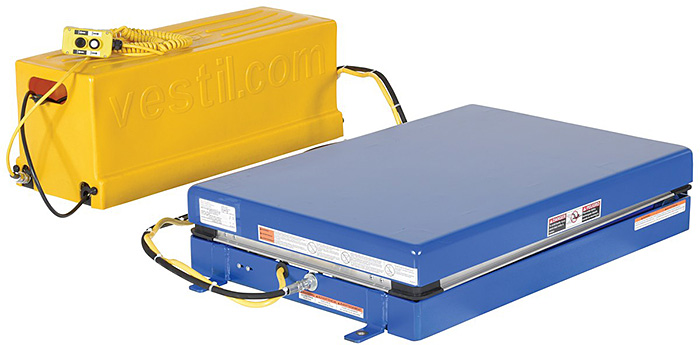

Vestil EHLTS shorty lift tables offer smaller deck sizes that are ideal for use in confined spaces. These high quality scissor lift tables are designed to lift items to an ergonomic working height of up to 31". Safety features include a full perimeter pinch point guard and an emergency internal safety velocity fuse. An external power unit and a hand control on an 8’ coil cord comes standard. Options for Vestil EHLTS shorty scissor lift tables are a built-in scale, manual integrated carousel, and accordion skirting. Lift tables feature steel construction and industrial quality parts for years of dependable service..



Vestil EHLTS Shorty Lift Tables are built to order and have an estimated lead time to leave the warehouse of 5 weeks.



Specifications:

  • Capacity: 1,000 to 5,000 LBS
  • Lowered/Raised Height: 7" / 31"
  • 460V/3 phase 60 Hz external electric motor (See options below for alternate voltages)
  • Raise time for 1,000 to 3,000 LB capacity models is approx. 12 seconds (23 seconds for 4,000 LB and 5,000 LB models)
  • 3000 psi hydraulic component rating
  • Internal Velocity Fuse to maintain platform height in case of hose or fitting failure
  • Adjustable Upper Travel Limit Switch to stop table at maximum height
  • Pinch Point Perimeter Guards for OSHA compliance
  • Fused 24V Hand Pendant Control on 8 ft. coil cord
  • Lifetime Lubricated Bearings
  • Pressure Plated Pump/Manifold System



Options:

  • Voltage change to 115v/1ph, 208-230v/1ph, or 208-230v/3ph (replaces standard 460v/3ph) - Models with prefix VCC
  • 12V power option also available - please contact us for a quote.
  • Foot control - replaces hand control. Model FC-2
  • Wireless remote control. Model RRC-2PB
  • Integrated scale features include LCD readout, zero weight & tare weight, lb or kg, 5,000 lb. capacity, installs & removes in seconds. Adds 4.5" to platform height. Not designed to be driven over if pit mounted - please contact us if you require a scale that can be driven over. Available on 36"x36" & 48"x48" deck sizes. Model EHLTS-SCALE
  • Programmable Height Control features fully integrated controller with 4 preset heights for repeat repositioning applications. 15 button keypad with LCD Display. Model EHLTS-PROGRAM
  • Accordion Skirting (contact us for pricing).





Vestil EHLTS Shorty Lift Tables:
SKUCapacity/Desc.Avail. Deck WidthsAvail. Deck LengthsRaised Ht.WeightPriceQty
EHLTS-1-311000 LBS24"-48"36"-48"31"689 LBS $3,164.00
EHLTS-2-312000 LBS24"-48"36"-48"31"769 LBS $3,629.00
EHLTS-3-313000 LBS24"-48" 36"-48"31"788 LBS $4,483.00
EHLTS-4-314000 LBS24"-48" 36"-48" 31"850 LBS $4,844.00
EHLTS-5-315000 LBS36"-48"36"-48"31"937 LBS $5,012.00
Options:
SKUCapacity/Desc.WeightPriceQty
VCC-115-1Voltage Change To 115v/1ph Power (replaces standard 460v/3ph)0 LBS $76.00
VCC-208/230-1Voltage Change To 208v-230v/1ph Power (replaces standard 460v/3ph)0 LBS $76.00
VCC-208/230-3Voltage Change To 208v-230v/3ph Power (replaces standard 460v/3ph)0 LBS $76.00
EHLTS-PROGRAMProgrammable Height Control295 LBS $1,661.00
RRC-2PBWireless Remote Control1 LBS $1,078.00
FC-2Foot Control (replaces 2 button hand control)5 LBS $150.00
EHLTS-SCALEIntegrated Scale - adds 4.5" to the height of the lift. Available on 36"x36" / 48"x48" & 48"x60" deck sizes.295 LBS $1,714.00
