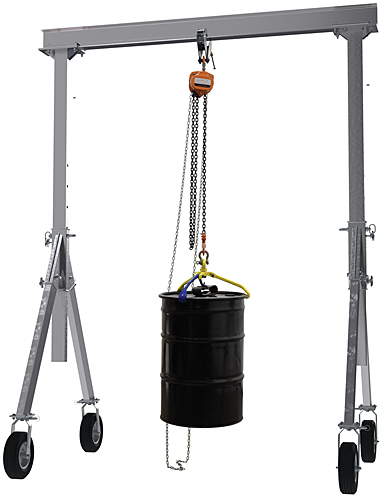

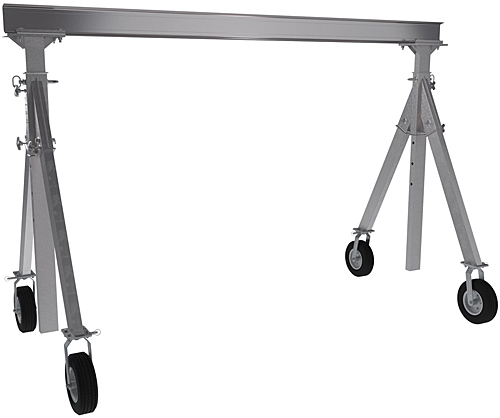

Vestil AHA-15 Adjustable Aluminum Gantry Cranes with Pneumatic Casters are ideal for use in multiple workstations. Lightweight aluminum construction makes transportation easy, while the pneumatic swivel wheels provide smooth rolling even over rough surfaces, and will not mar. Pneumatic casters are four-way locking for safety. These aluminum gantry cranes are easily height-adjustable from 6'2" to 8'8" usable height under beam, using removable pins. Height can be adjusted by two people, or by a single person if using the optional AHA-KIT ratcheting come-alongs. These adjustable gantry cranes are made of heavy-duty welded aluminum and have an overall capacity of 1,500 LBS. Vestil AHA-15 Adjustable Aluminum Gantry Cranes are not designed to be moved while loaded.
AHA-15 Aluminum Gantry Cranes with Pneumatic Casters have an estimated lead time to leave the warehouse of 3 to 5 business days.
Specifications:
- Capacity: 1,500 LBS
- I-Beam Length: 8', 10', 12' or 15'
- Under I-Beam Usable Height: 6'2" to 8'8"
- Height is adjustable in 6" increments
- Maximum overall height: 110¼"
- S Type I-Beam
- Usable distance between uprights is overall beam length minus 18"
- Usable trolley travel length is overall beam length minus 24"
- Base Width: 53¾"
- Four-position swivel locking 12" dia. pneumatic casters (lock at 0°, 90°, 180°, 270°)
- All aluminum construction
Options:
- Festoon System, 115V AC - Model FES-KIT
- Optional Ratcheting Come Alongs for easy one-person adjustment (set of 2). Not for lifting - Model AHA-KIT
Hoist and Trolley sold separately. Click link to see our selection of Hoists and Trolleys
Product should be inspected frequently to insure safe operation. Testing and inspection of the unit is the responsibility of the end user after final assembly has been completed. For further details see ASME B30.17.
