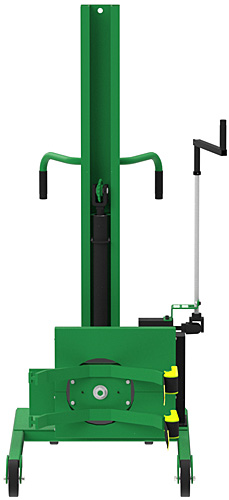

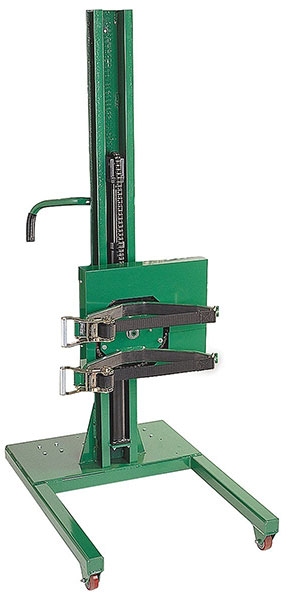

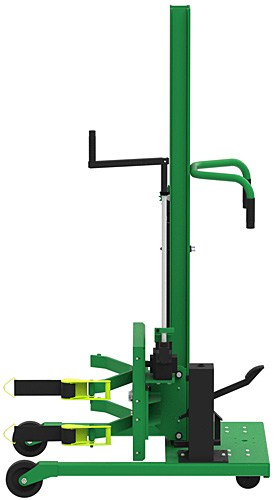

Valley Craft Roto-Lift Straddle Drum Lifters, models F88563B9 & F88564B8, are versatile drum handlers which transport, lift and rotate drums weighing up to 800 LBS. Compatible with steel, plastic and fiber drums and cylinders measuring 14" to 24" in diameter. Roto-Lift Drum Lifters feature manual lift and rotate functions, with full 360° rotation. Two wide straps secure the drum to the portable drum handler. These manual drum rotators have a single mast, which ensures high visibility while transporting loads. Valley Craft Roto-Lift Drum Handlers are made of steel with a green powder coat finish for durability. Factory air powered models are also available - contact HOF for more information.
Valley Craft Roto-Lift Drum Lifters, models F88563B9 & F88564B8, have an estimated lead time to leave the warehouse of 15 business days.
Specifications:
- Capacity: 800 LBS
- Compatible with steel, plastic and fiber drums 14" - 24" dia.
- Manual drive
- Manual 360° rotation in either direction
- Maximum lift height: 78" or 90", depending on model
- 44" Turn Radius
- (2) 6" Front and (2) 4" Rear casters
- Straddle legs
- Steel construction
Options:
- Floor lock - Model F89410A2
