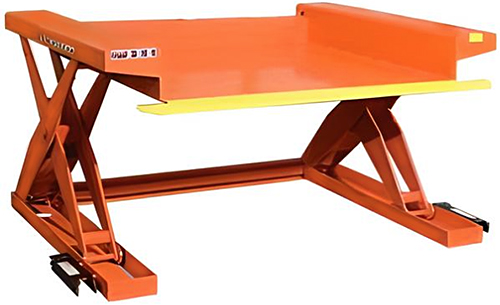

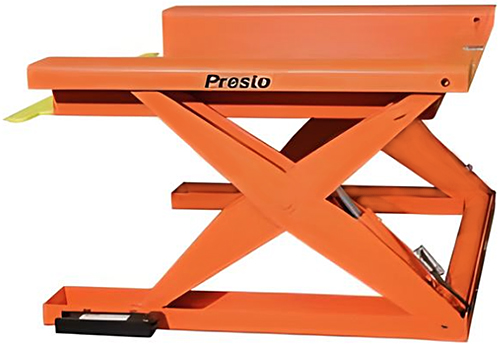

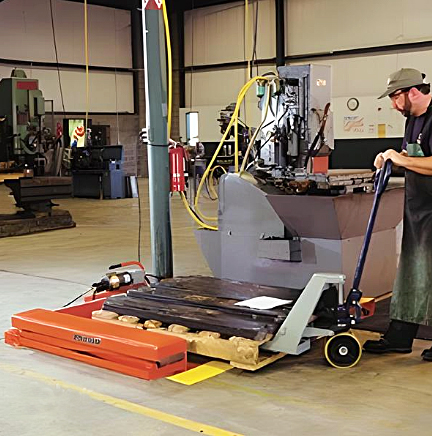

Presto XZ50 Ground Lift Scissor Tables are engineered to enhance material handling efficiency in environments where forklifts or stackers are unavailable. Featuring a unique pan-style platform that lowers to just 3/8" above the floor, these lifts allow for seamless loading and unloading with a standard hand pallet truck. These floor height lift tables feature a low-profile design that eliminates the need for ramps or pits, facilitating easy access from all four sides and minimizing reach-over distance. Available in capacities of 2,000, 4,000, and 6,000 lbs, the XZ50 ground lift scissor tables accommodate a variety of load requirements. Each model is equipped with an external 1 HP 115V single-phase power unit and offers a choice between foot or hand-held controls for precise operation. Safety features include a 6" flexible yellow toe guard and lifting eyes for secure positioning. With a vertical travel of up to 35", Presto XZ50 Floor Height Lift Tables are ideal for applications such as palletizing, assembly, and loading operations in diverse industrial settings.
Presto XZ50 Ground Lift Scissor Tables are built to order with an estimated lead time to leave the factory of 3 to 5 weeks.
Model XZ50-60 is built to order with an estimated lead time to leave the factory of 8 to 10 weeks
Specifications:
- Load Capacities: 2,000, 4,000, or 6,000 lbs available
- Platform Size: 50"W x 48"L
- Lowered Height: 3/8" for XZ50-20 and XZ50-40 | 1/2" for XZ50-60
- Raised Height: 35-1/2" for XZ50-20 and XZ50-40 | 34-1/2" for XZ50-60
- Vertical Travel: Up to 35"
- Overall Dimensions: 67-1/4"W x 59"L
- Power Unit: External 1 HP 115V single-phase motor
- Controls: Foot or hand-held control options
- Safety Features: 6" flexible yellow toe guard, lifting eyes for secure positioning
