Presto M452 Manual Lift Stacker

Presto M452 Manual Lift Stacker
Slip on platform, Inverted Forks, Ram, Boom & Hook
Roller Platform, Die Puller & Rollers, Drum Grabber
Click to see More Photos
Back to List
Call/Email For Pricing
SKU: M452



Scroll Down for More Info

The Presto M452 Manual Lift Stacker is built to tackle a variety lifting tasks ranging from handling small open bottom skids to moving machinery. This manual lift truck can lift 1,000 LBS to a maximum height of 50”. Stacker features manual foot pump lift operation, adjustable width steel forks, and fixed straddle legs. Platform is raised 1¹⁄₈” per foot stroke. A perforated metal screen allows for forward visibility while protecting the operator. The Presto M452 rolls easily on floor protecting 5" dia. front and 4" dia. rear phenolic casters.


The Presto M452 Platform Lift Truck normally leaves the warehouse in 5 to 7 business days.







Specifications:

  • Adjustable 30" long forks (18" load center)
  • Capacity: 1,000 LBS
  • 3¼" lowered height / 50" max. raised height
  • Manual hydraulic foot pump operation
  • Fork width adjusts from 6½"W to 26½"W O.D.
  • Legs are fixed at 26"W I.D. / 32"W O.D.
  • Full height push handle for enhanced steering
  • Perforated mesh screen provides visibility and safety
  • (2) 5" dia. front and (2) 4" dia. rear phenolic casters
  • Foot operated floor lock
  • Overall Size: 33"W x 49"L x 66"H
  • Weight: 370 LBS

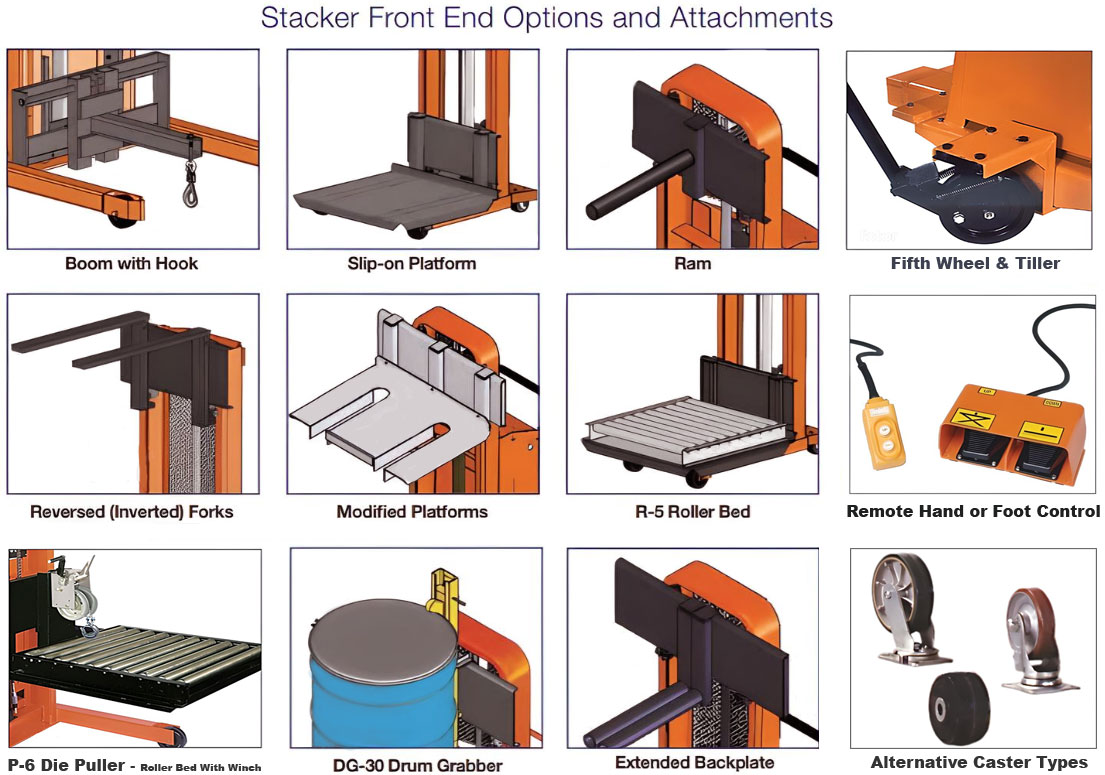

Options (See Photos Above):

  • Solid 32"W x 30"D Platform Option (Slips over forks) - see options below - Model SP32

  • Inverted Forks. Ideal for overhead installation. Provides an increased lowered & raised height - see options below - Model I-FORK

  • Coil Ram to carry roll & coil material. Ram can be up to 30" long. 4-5 week lead time. Contact HOF Equipment For Pricing.

  • Boom with Lifting Hook for lifting and suspending loads with chains or lifting straps. 4-5 week lead time. Contact HOF Equipment For Pricing.

  • Roller Bed for moving heavy items to and from stacker. 3" rollers can be positioned front-to-back or side-to-side. 1,000 LB capacity. 4-5 week lead time. Contact HOF Equipment For Pricing.

  • Die Puller With Roller Bed. Includes winch with cable and hook. 1,000 LB capacity. 4-5 week lead time. Contact HOF Equipment For Pricing.

  • Drum Grabber automatically grabs 30 or 55 gallon drums for transport and stacking in the vertical position. Parrot beak mechanism works with steel and fiber drums. 4-5 week lead time. Contact HOF Equipment For Pricing.

Presto M452 Lift Stacker:
SKUCapacity/Desc.Fork LengthLoad CenterWeightPriceQty
M452Presto Lift Stacker / 1000 LBS30"18"370 LBSRequest Quote in Cart
Options:
SKUCapacity/Desc.WeightPriceQty
SP32Slip On 32"W x 30"D Platform52 LBSRequest Quote in Cart
IFORKInverted Forks - provides an increased lowered and raised height. (20 business day lead time)0 LBSRequest Quote in Cart
