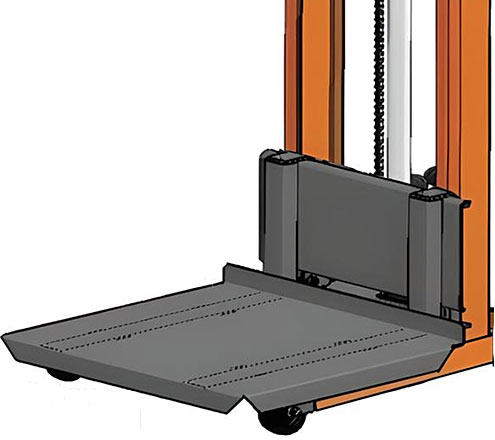

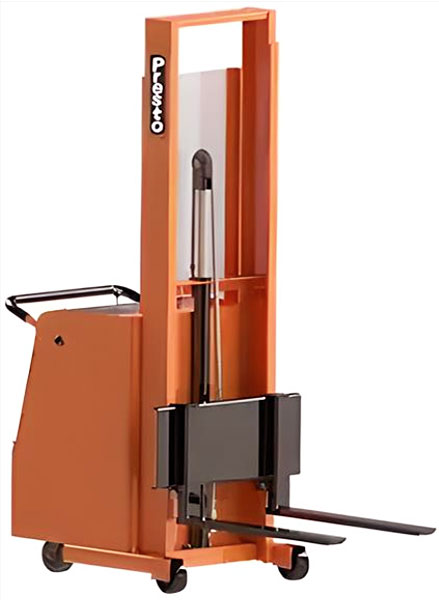

Presto C74A Counterbalance Stackers feature manual push and powered lift operation and are designed to lift items to a maximum height of 74". These counterweight stackers do not have fixed or straddle legs, making them perfect for applications such as loading racks with bottom bars, feeding machinery, and loading/unloading trucks. Stackers feature a 12V battery powered hydraulic lift that lifts at 5" per second, an integral 10 amp automatic tapering battery charger, a battery status gauge, and quick-disconnect battery cables. Presto C74A Counterweight Stackers are made of all steel and high quality parts making them a top choice for counterbalance stacking applications. Optional solid steel platform available.
Presto C74A Counterbalance Stackers are built to order and normally leave the warehouse in 5 to 7 business days.
Presto C74A Counterbalance Stackers are not ideal for use with pallets or loads greater than 25" deep.
- 200, 400, 600, 800 or 1,000 LB capacity @ 13' load center
- 74" lift height
- Counterweight (ballast) included
- 5" per second lifting speed
- Heavy-duty 12V battery with quick connect cables & smart charger
- High visibility battery discharge indicator
- 25" Forks (13" load center)
- Forks adjust from 6½" to 20" O.D. between wheels
- 15½" high fork backs
- 1" thick x 3" wide adjustable solid steel forks
- Leaf type chain with 8,250 lbs. yield point
- Heavy-duty C100 foot operated floor lock
- LED dash mount - diagnostic display
- 3 position "Comfort Cushion" push handle
- High impact 5" x 5" phenolic wheels
- Overall Size: 92"H x 27"W x 36"L (61"L with forks included)
