Presto C62A-1000 Counterbalance Stacker

Presto C62A Counterweight Stacker
Presto Stacker Options
Presto C62A
Presto Counterweight Stacker

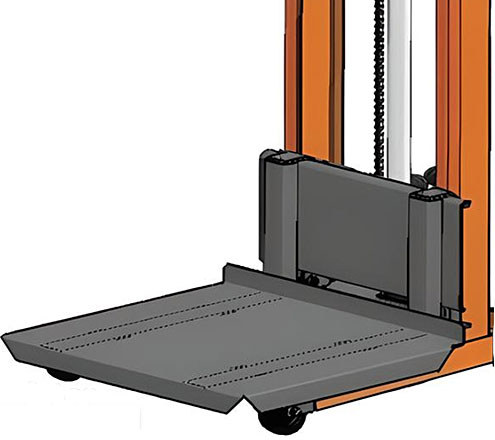

Presto SP24 Slide On Platform (optional)
Click to see More Photos
Back to List
$7,199.00
SKU: C62A-1000



Scroll Down for More Info

Presto C62A Counterbalance Stackers feature manual push and powered lift operation and are designed to lift items to a maximum height of 62". Stackers are available with capacities ranging from 200 LBS to 1,000 LBS. These counterweight stackers do not have fixed or straddle legs, making them perfect for applications such as loading racks with bottom bars, feeding machinery, and loading/unloading trucks. Stackers feature a 12V battery powered hydraulic lift that lifts at 5" per second, an integral 10 amp automatic tapering battery charger, a battery status gauge, and quick-disconnect battery cables. Presto C62A Counterbalance Stackers are made of all steel and high quality parts making them a top choice for counter-balanced pallet stacking applications. Options include solid steel slip on platform, wired remote hand or foot control, fifth wheel with tiller, roller bed with winch for die pulling, eagle beak vertical drum grabber, boom with hook, ram, extended backplate, inverted forks, roller bed, custom platforms and more - see link below.



Presto C62A Counterweight Pallet Stackers are built to order and normally leave the warehouse in 5 to 7 business days.



Presto S62A Counterweight Pallet Stackers are not ideal for use with pallets or loads greater than 25" deep.



Specifications:

  • 200, 400, 600, 800 or 1,000 LB capacity @ 13" load center
  • Lowered Fork Height 1" | Max. Raised Fork Height 62"
  • Counterweight (ballast) included
  • 5" per second lifting speed
  • Heavy-duty 12V battery with quick connect cables & smart charger
  • High visibility battery discharge indicator
  • Individual Forks are 25"Long x 3"Wide x 1"Thick (13" load center)
  • Forks adjust from 6½" to 20" O.D. between wheels
  • 15½" high fork backs
  • Leaf type chain with 8,250 lbs. yield point
  • Heavy-duty C100 foot operated floor lock
  • LED dash mount - diagnostic display
  • 3 position "Comfort Cushion" push handle
  • High impact 5" x 5" phenolic wheels
  • Overall Size: 80"H x 27"W x 36"L (61"L with forks included)

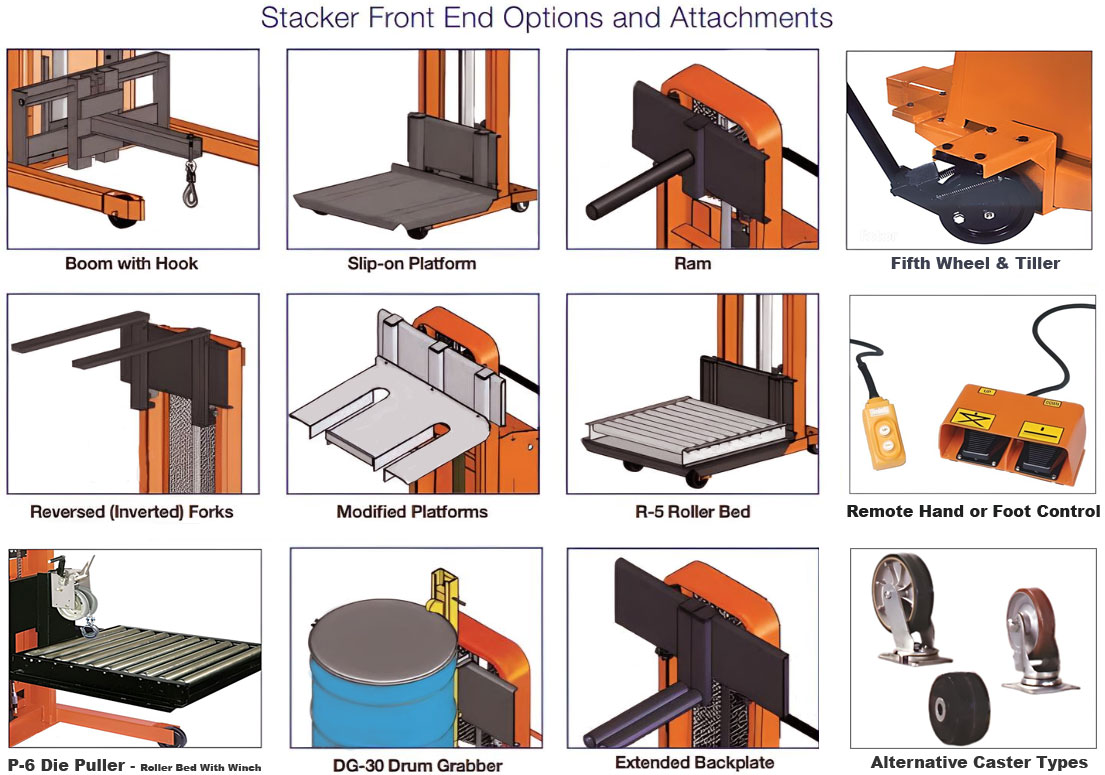

Stacker Options:

To see all available options for Presto Stackers, Click on link or photo below to view selections & request a quote.

Presto Stacker Options

Presto Stacker Options







Presto C62A Counterbalance Stackers:
SKUCapacity/Desc.Lowered / Raised HeightWeightPriceQty
C62A-200200 LBS1" / 62"750 LBS $6,768.00
C62A-400400 LBS1" / 62"900 LBS $6,920.00
C62A-600600 LBS1" / 62"1000 LBS $7,066.00
C62A-800800 LBS1" / 62"1100 LBS $7,226.00
C62A-10001000 LBS1" / 62"1200 LBS $7,199.00
