Morse 82H-125 Electric Drum Lifter / Palletizer

Morse 82H-125 Electric Drum Lifter
Morse 82H-125
Back to List
$2,900.00 - $12,203.00
SKU: 82H-125

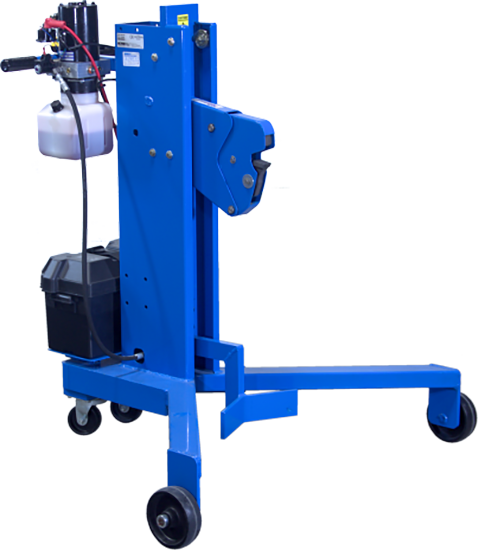

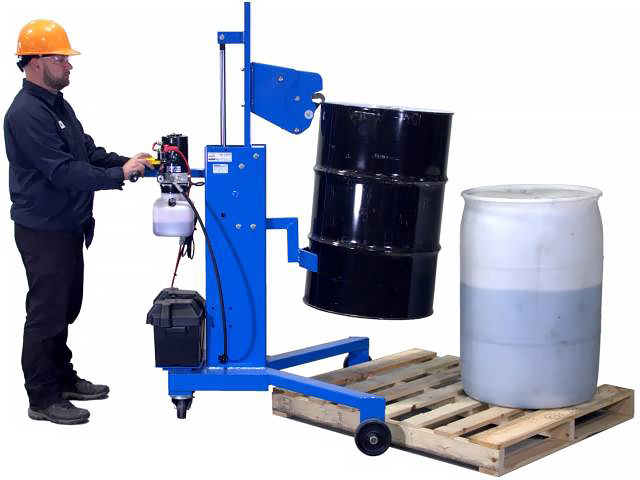

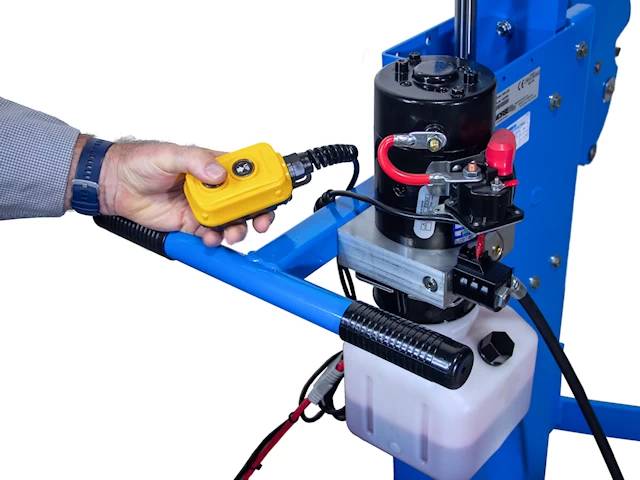

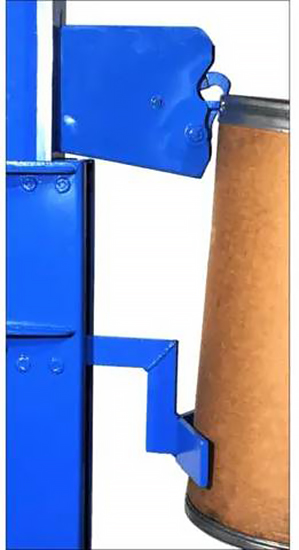

The Morse 82H-125 Drum Lifter features 12V DC powered lift and is ideal for loading a single steel, plastic or fiber rimmed drum onto and off of a pallet, drum dolly, or spill containment pallet (drum must be a minimum of 22.5” tall). All powered lift requires no manual effort to grip and raise a drum weighing up to 1,000 LBS in the vertical position to a maximum of 19” off the floor and move it to another location. A v-shaped base design allows the operator of this electric drum truck to quickly lift and place a drum on the corner of a pallet. The Morse 82H-125 can straddle a pallet that is up to 41" (104 cm) wide and 7" (18 cm) high (can palletize and depalletize a drum at the corner of a pallet). The Morse electric drum lifter features a turning radius of 53” (135 cm) and includes a counter-weight to stabilize the drum truck. To operate, simply push the Morse 82H-125 against the side of the drum, raise the "head" containing the jaws to engage the grip, hold and lift drum. The jaws will release automatically when the drum is lowered onto a pallet or the floor. AC and Air powered drum lifters available - see chart below.

Morse electric drum lifter models 82H-125, 82H-120, & 82H-124 are built to order with an estimated lead time to leave the warehouse of 15 business days.


The Morse 82HM-124 Air Powered Drum Lifter features spark resistant parts. This item is built to order with an estimated lead time to leave the warehouse of 20 business days.

Morse 82H-SS-125, 82H-SS-120 & 82H-SS-124 electric stainless steel drum lifters feature stainless steel construction. These items are built to order with an estimated lead time to leave the warehouse of 12 weeks.



Specifications:

  • Capacity: 1,000 LBS (454 kg)
  • Handles rimmed steel, fiber & plastic drums that are a minimum of 22.5" (57.5 cm) tall and have a 75 LB (34 kg) minimum weight
  • Palletize or Depalletize a drum at the corner of a pallet
  • 12 Volt DC powered. Deep cycle lead acid battery and external 100/200V 50/60Hz AC charger included
  • Straddle a pallet up to 41" (104 cm) wide and 7" (18 cm) tall
  • Can transport, palletize and depalletize various diameter drums
  • Counterweight for improved stability
  • 53" (135 cm) turning radius
  • Can lift drum up to 19" (48 cm) off of floor
  • Overall Size: 48.5"W (123 cm) x 43"L (109 cm). Legs are 9" (22.9 cm) High and extent 20.75" (52.7 cm) in front of upright stanchion
  • Rolls smoothly on (2) 6" front wheels and (2) 4" rear swivel casters for easy steering







Morse Electric Drum Lifters:
SKUCapacity/Desc.WeightPriceQty
82H-12512v DC Powered Drum Lifter / Drum Palletizer469 LBS $2,900.00
82H-120115v AC Powered Drum Lifter / Drum Palletizer469 LBS $2,900.00
82H-124Air Powered Drum Lifter / Drum Palletizer 435 LBS $2,900.00
82HM-124Air Powered Drum Lifter / Drum Palletizer With Spark Resistant Parts420 LBS $3,555.00
82H-SS-12512v DC Powered Stainless Steel Drum Lifter / Drum Palletizer512 LBS $12,203.00
82H-SS-120115v AC Powered Stainless Steel Drum Lifter / Drum Palletizer470 LBS $12,203.00
82H-SS-124Air Powered Stainless Steel Drum Lifter / Drum Palletizer440 LBS $12,203.00
