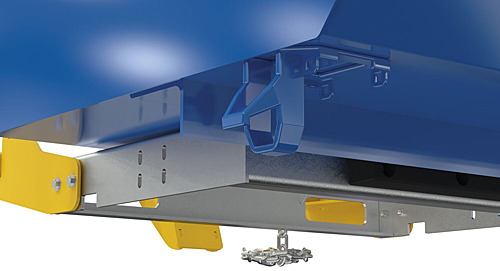

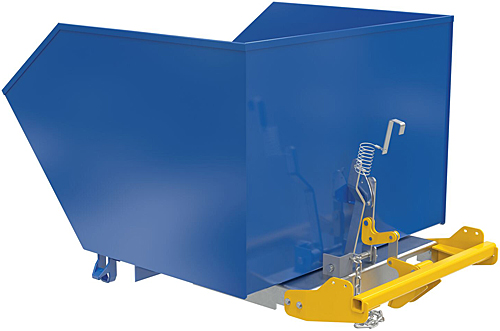

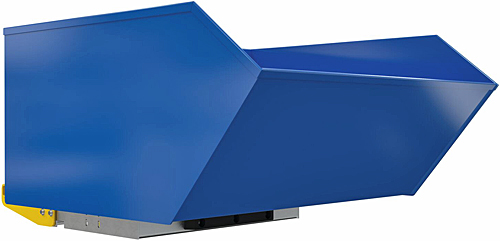

Vestil H-Series Low Profile Self-Dumping Steel Hoppers With Bumper Release automatically dump when the bumper release contacts the side of a dumpster or other solid surface and feature a cushioned rubber bump stop. Hoppers may also be dumped manually using a pull cable operated from the seat of the forklift. Self Dumping Hoppers automatically return to an upright/locked position after dumping. A safety harness is provided to secure the hopper to the forklift. These forklift dump hoppers aid in complying with OSHA 29 CFR 1910.178(m)(5)(iii) since the fork lift operator stays at the forklift controls when dumping. Powder coat blue finish comes standard, while other colors are available - please contact HOF for information & pricing.
Vestil H-series Low Profile Self-Dumping Hoppers with Bumper Release have an estimated lead time to leave the warehouse of 20 to 25 business days.
Specifications:
- 2,000, 4,000 or 6,000 LB Capacities
- 1 or 1½ Cubic yard volume
- Automatically dumps when the bumper release makes contact with a solid surface
- May also be dumped manually from seat of a forklift via a pull cable
- Automatically returns to the upright position after dumping
- Usable fork pockets measure 7"W x 2"H on 21⅝" centers
- 90° dump angle
- Made of steel with durable blue powder coat finish
Optional Casters (see options below)
When casters are ordered with hopper, quick-install caster pads are factory-welded to the base of the hopper.
The weight of the hopper must be subtracted from the rated caster capacity to calculate usable caster capacity.
When using casters, the maximum hopper capacity is the lower of the hopper capacity or the caster capacity.
Optional Heavy-Duty Poly Hopper Lids:
Keep the contents of hoppers out of sight for a cleaner appearance with our hopper lids. Click on link or photo below to view selections & order.

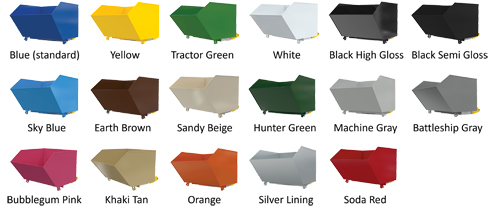

Optional Colors - Contact HOF For A Quote
Other Options (see options below)
- Welded Leak Proof Option: Model LEKP
- Welded Leak Proof Option with 2" Threaded Drain Plug (located in left hand corner): Model H-DPLG-2
- (4) Welded Lifting Lugs (one on each corner): Model LUG
