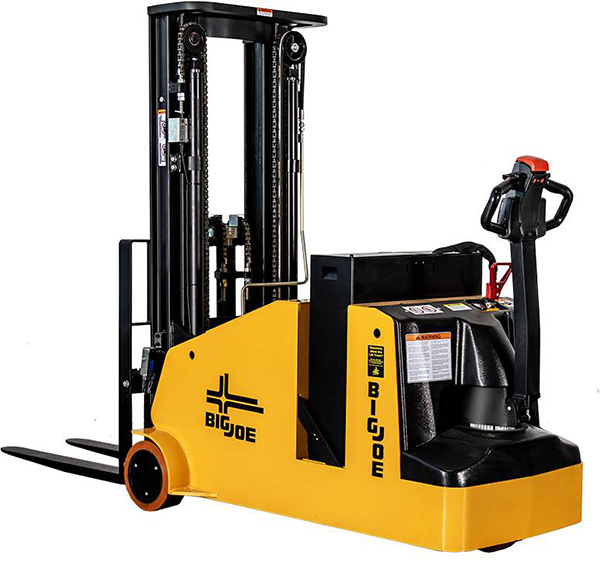

Big Joe CB22-128 Counterbalance Pallet Stacker

Big Joe CB22-128 Counterbalance Pallet Stacker
Big Joe CB22-128
Click to see More Photos
Back to List
$16,900.00
SKU: CB22-128



Scroll Down for More Info
Additional Info

The Big Joe CB22-128 Counterbalance Pallet Stacker is a powered drive and powered lift pallet stacker with adjustable forks allowing it to handle virtually any type of pallet or skid. The CB22-128 features a counterbalance instead of front support legs providing for a tight 56" turning radius, narrower profile, and increased maneuverability. Perfect for loading and unloading trucks, pallet stacking, and positioning loads. Stacker has a 2,200 LB capacity at 24" load center, a 128" lift height, and a mast that tilts 4° back and 2° forward. Drive speed is infinitely variable from 0 mph to 3.1 mph fully loaded and 3.4 mph empty. The powerful lift motor raises loads at 25 feet/minute loaded and 33 feet/minute empty. An ergonomic, gas assist spring handle controls speed and lift with left or right hand, and features an auto-reverse safety belly button switch. The Big Joe CB22-128 counterbalance stacker is all steel construction with a welded rigid steel chassis for years of reliable service.



The Big Joe CB22-128 Counterbalance Pallet Stacker has an estimated lead time to leave the warehouse of 5 to 7 business days.



Specifications:

  • Capacity at 24" load center (48"L pallet with load evenly distributed): 2,200 LBS 2" to 128"
  • Lowered fork height 2" / Max. raised fork height 128"
  • (4) 6V 224AH AGM batteries with 110V/25 Amp integral charger comes standard for light duty use (255AH industrial battery option with 120V/25 Amp external smart charger with bluetooth is recommended for standard or heavy use - see chart below)
  • Gas assist spring handle with finger tip controls, safety reversing belly switch, and horn
  • Key switch, battery discharge gauge, hour meter
  • Forks adjust from 8” ID to 28” OD
  • Individual forks are 42” long x 4” wide
  • Class 2 ITA fork carriage with 36” tall load back rest
  • Mast/forks tilt 4° back and 2° forward
  • Infinitely variable speed operation from 0 mph to 3.4 mph empty and 0 mph to 3.1 mph loaded
  • Gradability: 5% loaded / 8% unloaded
  • Anti-roll back and regenerative “neutral” braking
  • Lift speed is up to 33 fpm empty and up to 25 fpm loaded
  • Lower speed is up to 29 fpm empty and up to 57 fpm loaded
  • Collapsed overall unit height 83.2"
  • Weight: 4,500 LBS
  • Warranty: 2 years or 1000 hrs on frame, transmission, & weldments. 1 year on batteries. All other parts excluding wearables are 6 months or 1000 hrs parts and labor.





Big Joe CB22-128 Counterbalance Pallet Stacker:
SKUCapacity/Desc.WeightPriceQty
CB22-128Stacker With Standard 224AH Batteries & Built In 110V/25 Amp Charger4500 LBS $16,900.00
CB22-128IBStacker With Industrial 255AH Battery & External 120V/25 Amp Charger w/ Bluetooth4500 LBS $19,400.00
