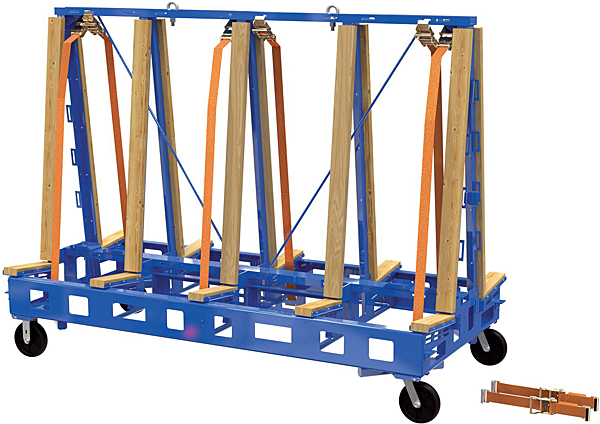

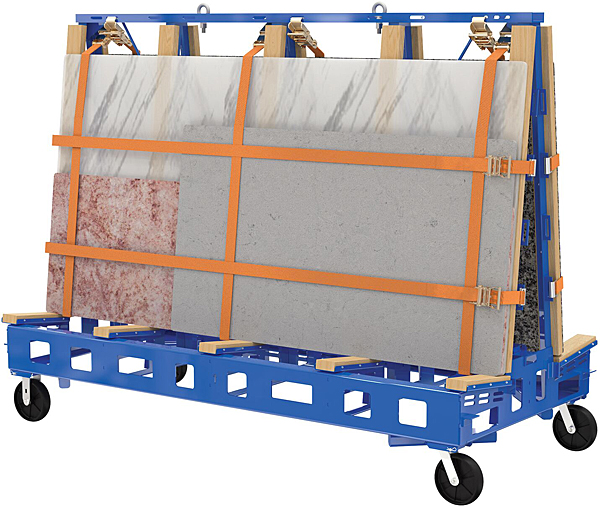

The Vestil STR-M-9764-4-CK1 Slab Transport Rack is ideal for storing and transporting panels and slabs of wood, glass or stone weighing up to 4,000 LBS. Slab rack measures 97" long by 43½" wide and features 8"W x 3"H fork pockets on 28" centers at sides and ends. Wooden boards are attached to the bottom and back of the rack supports, to protect materials from scratching or other damage. Slab rack comes standard with (6) 84" long straps for attaching vertically and (2) 27' long straps for securing loads horizontally. four glass-filled nylon 8" dia. casters: two rigid and two swivel with brake. Casters can be easily removed and stored on top of the rack platform when not needed, or when the rack is being transported using a fork truck. Casters measure to 74" high. Vestil STR Slab transport rack is built from welded steel with a blue powder coat finish for durability.
The Vestil STR-M-9764-4-CK1 Slab Transport Rack is built to order with an estimated lead time to leave the warehouse of 7 to 8 weeks.
Specifications:
- Maximum Capacity: 4,000 LBS
- Rack measures 43½"W x 97"L x 64"H / 74"H with casters
- Includes lifting eye bolts for use with overhead lifting devices
- 8"W x 3"H fork pockets on 28" centers at sides and ends
- Includes 8 straps for securing load horizontally and vertically
- Features wooden boards to protect load
- Holes in base allow lagging to wooden floor (hardware not included)
- 8" dia. x 2"W glass-filled nylon casters: 2 swivel with brake, 2 rigid. Casters can be removed for transport by truck
- Welded steel construction with durable powder-coat finish
- Weight: 380 LBS
