Vestil HDC-905-IDC Drum Crusher / Drum Compactor

Vestil HDC-905-IDC/460V Drum Crusher
Vestil HDC-905-IDC
Vestil HDC-905-HC High Cycle Drum Crusher
Vestil HDC-900-GPT Portable Drum Crusher
Drum Crushed to 6 inches
Back to List
$7,795.00 - $15,974.00
SKU: HDC-905-IDC/460V
Additional Info

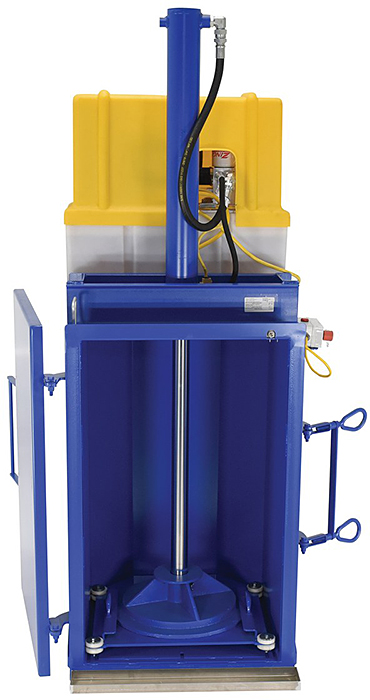

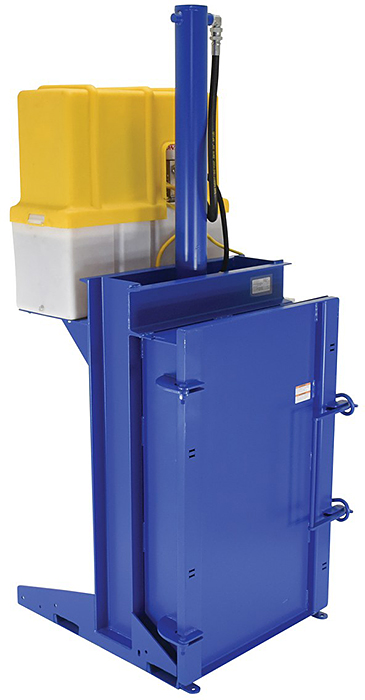

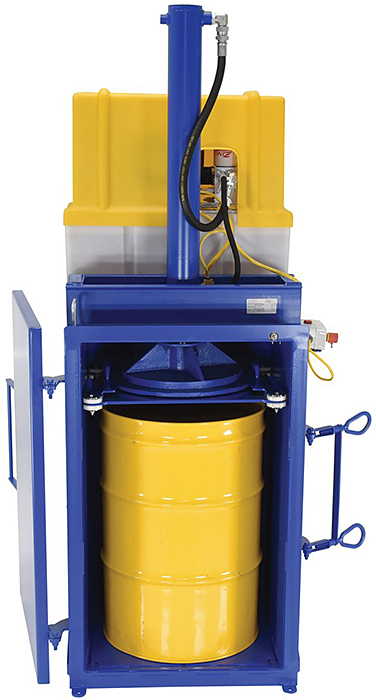

The Vestil HDC-905-IDC Drum Crusher / Drum Compactor features a versatile design that can crush and compact 55 gallon drums giving the user two pieces of equipment in one. When used as a barrel crusher, this unit crushes 55 gallon steel drums to approximately 6" high and then resets automatically to crush another drum all in approximately 25 seconds. An integral aluminum drip pan catches any liquid remaining in drum while crushing. The drum compactor feature can compact the contents inside of various drum sizes up to 55 gallons. The drum crushing platen is easily removed for compacting. Safety features include a pressure relief valve to prevent overload and a door interlock system which only allows the motor to function if the door is closed. The HDC-905-IDC drum crusher has a duty cycle (barrel crushing or compacting) of up to 250 drums per week in a non-hazardous, room-temperature environment when using a 3 phase power supply. Comes standard with built-in fork pockets for easy transport via forklift. Meets OSHA 1910.212 and ANSI Z245.5 standards.

Model Vestil HDC-905-IDC is designed to run 10 to 12 cycles per hour for a 3 hour period before requiring a cooling off period. The estimated lead time for this item to leave the warehouse is 5 to 7 business days.



Model Vestil HDC-905-HC is a high cycle unit designed to run continuously without the need for a cooling off period. This item is built to order with an estimated lead time to leave the warehouse of 5 to 6 weeks.



Model Vestil HDC-900-GPT is a portable unit that includes drum crusher, trailer and a gas engine. Please contact HOF Equipment Company for lead time.




Specifications:

  • Designed to crush 55 gallon drums (not designed to crush any other drum sizes)
  • 460V, 3 phase, 60 Hz, 6.5 H.P. motor (amp draw is 9) comes standard - other voltages available
  • Dual speed hydraulic pump provides 25 second cycle time (crush and retract)
  • Door interlock system prevents motor from running if door is not closed
  • Aluminum drip pan holds 1 gallon and measures 31½"L x 4½"W x 1⁵⁄₈"H (not included with model HDC-900-GPT)
  • 38,000 LBS of crushing power
  • Drum head piercer to allow for drum venting
  • The crushing platen is removable to allow for drum compacting of various drum sizes up to 55 gal.
  • Built-in fork pockets for easy transport
  • 15 gallon oil reservoir
  • COMPACT/CRUSH selector switch and key on/off switch
  • Emergency stop button
  • Relief valve to prevent hydraulic system overload
  • Protective plastic cover on power unit for indoor and outdoor applications
  • Barrel crushing chamber size - 25"W x 25"D x 37"H
  • Meets OSHA 1910.212 / ANSI Z245.5 standards



Options:

  • Voltage change to 208-230v/1 phase (repaces standard 460v/3phase). 3 HP power unit requires 50 Amp wiring and 40 Amp Breaker. Cycle time increases to approx. 70 seconds. Model HDC9-1
  • Washdown motor & nema 4 enclosure. Contact for a quote







Vestil HDC-905-IDC Drum Crusher / Drum Compactor:
SKUCapacity/Desc.WeightPriceQty
HDC-905-IDC/460VVestil Drum Crusher 460V/3PH1420 LBS ($7,795.00)
HDC-905-IDC/208VVestil Drum Crusher 208V/3PH (Use For 220V supply)1420 LBS ($7,795.00)
HDC-905-IDC/230VVestil Drum Crusher 230V/3PH1420 LBS ($7,795.00)
HDC-905-HC/460VVestil High Cycle Drum Crusher 460V/3PH1700 LBS ($11,812.00)
HDC-905-HC/208VVestil High Cycle Drum Crusher 208V/3PH (Use For 220V supply)1700 LBS ($11,812.00)
HDC-905-HC/230VVestil High Cycle Drum Crusher 230V/3PH1700 LBS ($11,812.00)
HDC-900-GPTVestil Portable Drum Crusher2750 LBS ($14,936.00)
Options:
SKUCapacity/Desc.WeightPriceQty
HDC9-1For HDC-905-IDC Model - Voltage Change to 115V/1PH or 208V-230V/1PH0 LBS ($1,038.00)
