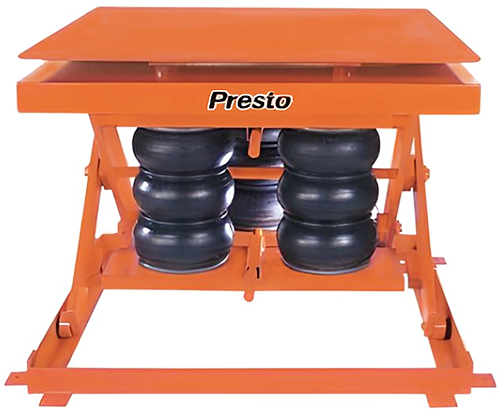

The Presto AXSR Pneumatic Lift Tables deliver rugged, powered rotation and vertical movement—ideal for high-capacity industrial tasks requiring loading/unloading from multiple angles. Pneumatically driven with shop-air (80 psi at 15 cfm), these lifts offer dependable performance without electrical power. Available in capacities of 2,000, 4,000, 6,000, and 8,000 lbs, with platform sizes ranging from 36"×48" up to 48"×60", each unit features a robust ½" steel turntable and provides a 24" vertical travel (from 15" lowered height to 39" raised). Safety and durability of the Presto Air Bag Lift Tables are enhanced by a standard pressure‑relief valve, lifetime-warranted air actuator, optional turret bearing, and a standard pedestal control (with optional foot valve). These lifts are transportable, require no floor anchoring, and offer customizable options such as detents, oversized platforms, pit mounting, and fork pockets, making them versatile and powerful tools in material handling applications. Presto AXSR Pneumatic Lift Tables are made of steel with an orange enamel finish for durability and visibility.
Presto AXSR Pneumatic Lift Tables are built to order with an estimated lead time to leave the warehouse of 4 to 6 weeks.
Specifications:
- Load Capacities: 2,000 lbs, 4,000 lbs, 6,000 lbs, or 8,000 lbs
- Platform Sizes: 36"×48" | 48"×48"| 48"×56" | or 48"×60"
- Lowered Height: 15"
- Raised Height: 39"
- Vertical Travel: 24"
- Turntable Construction: ½" solid steel plate
- Air Requirements: 80 psi at 15 cfm
- Actuator: Pneumatic with lifetime warranty and pressure-relief valve standard
- Controls: Pedestal-mounted valve standard; foot control optional
- Mobility: Transportable design—no floor anchoring required
- Optional Features: Turret bearing, manual or spring detent stops, pit mounting, oversized platforms, beveled edges, lifting eyes, fork pockets
