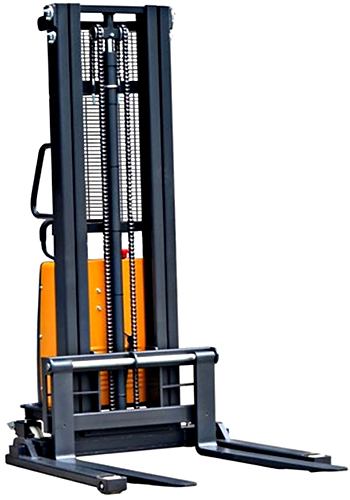

The Ekko EA15B pallet stacker is a manual push, powered lift electric pallet stacker that features adjustable width forks and adjustable width legs allowing it to handle virtually any type of pallet or skid. This Ekko stacker is ideal for moving and stacking pallets and skids on loading docks, in warehouses and in factories. A 12v 100AH battery and 110v integral charger come standard with the stacker. The metal mesh mast provides the user with a clear forward view. Pallet Stacker capacity at a 24" load center is 3,300 LBS 2.4" to 63", 2,420 LBS 63" to 79", 1,980 LBS 79" to 98", and 1,540 LBS 98" to 119". The turning radius is 53.2" allowing for better maneuverability in tight aisles. Ergonomic push handles, lift and lower lever and battery discharge indicator come standard. A 1.5kW lift motor raises loads at 3.6” per second loaded and 5.4” per second unloaded. The EA15B Ekko walkie stacker features all robotically welded steel construction and industrial grade components for years of reliable service.
The EB15B Ekko pallet stacker normally leaves the warehouse in 3 to 5 business days.
Specifications:
- (1) 12v 100AH deep cycle, maintenance free battery with 110v (15A) internal direct connect charger are included
- Capacity At 24" Load Center (48"L pallet with evenly distributed load): 3,300 LBS 2.4" to 63", 2,420 LBS 63" to 79", 1,980 LBS 79" to 98", and 1,540 LBS 98" to 119"
- 2.4" lowered fork height / 119" max. raised fork height
- Collapsed Mast height is 84.5" / Fully Extended Mast Height is 140.5"
- Ergonomic push handles
- 53.2" turning radius for use in tight areas
- Lift/lower control lever and battery discharge indicator
- Fork width adjusts from 8” O.D. to 33.4” O.D.
- Individual forks are 45” long x 3.9” wide x 1.38” thick
- Legs width adjusts from 43.5"W O.D to 59.1"W O.D.
- Lift speed is 5.4 i.p.s. empty and up to 3.6 i.p.s. loaded
- Lower speed is 3.9 i.p.s. empty and up to 4.4 i.p.s. loaded
- Foot brake
- Overall Size: 70"L x 59"W x 84.5"H (fully collapsed)
- Service Weight: 1,200 LBS
- Warranty: 1 year limited
