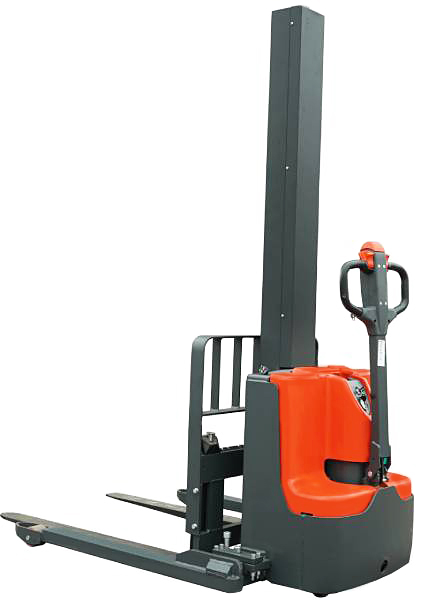

The Ballymore Stacker BALLYPAL22MSL63 is a full featured, powered drive / powered lift pallet stacker with a 2,200 LB lift capacity and a 63" max lift height. A mono mast provides enhanced forward operator visibility. This Pallet stacker has an overall fork width of 18" to 39-1/2". Unit operates on a two 12V 85Ah batteries and comes with a 110v built-in charger. Stacker has a fork length of 45" and a fork width of 4". Mesh protection screen for operator safety during use. The mast has a lowered height of 77" and extended height of 97". Travel speed ranges from from 2.3 MPH to 2.5 MPH and ability to operate on a grade is rated at 5% loaded and 10% unloaded. The BALLYPAL22MSL63 is made from the highest quality industrial components for a long service life.
The BALLYPAL22MSL63 Ballymore Stacker has an estimated lead time to leave the warehouse of 3 to 5 business days.
Specifications:
- Powered Drive / Powered Lift
- Capacity: 2,200 LBS
- Lowered Fork Height: 1.6" | Max. Raised Fork Height 63"
- Lowered Mast Height: 77" | Fully Extended Mast Height: 97"
- Overall Fork Width Adjustment: 18” to 39-1/2”
- Overall Leg Width Adjustment: 46” to 58” O.D.
- Travel Speed: 2.3 to 2.5 MPH
- Gradeability: 5% loaded | 10% unloaded
- (2) 12V 85 Ah batteries and built-in 110v charger
- Battery discharge indicator and lock-out setting to optimize battery life
- Individual Fork Size 4"W x 45"L
- Overall Size: 46"W x 71"L x 77"H Collapsed
- Weight: 1,355 LBS
