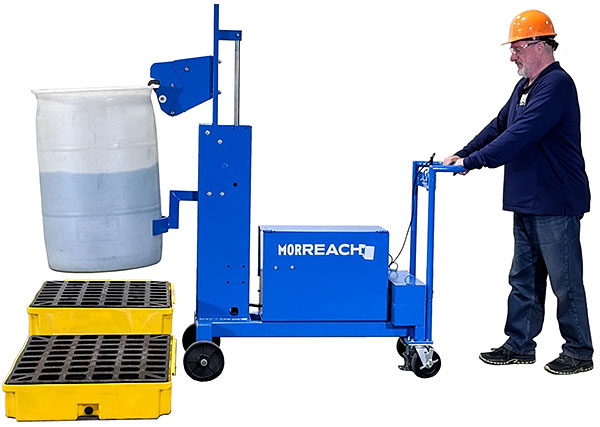

The Morse 82H-XR-125 Drum Palletizer features 12v DC powered lift and extended reach making it ideal for grasping, moving, and placing a RIMMED steel, plastic or fiber drum onto and off of pallets, drum spill containers, racks, and cabinets. Drum must be a minimum of 22” tall and weigh at least 75 LBS. This drum palletizer's powered lift requires no manual effort to grip and raise a drum weighing up to 600 LBS in the vertical position to a maximum of 19” off the floor. Palletizer is designed to quickly lift an upright drum and place it on a pallet or other location as needed. The Morse 82H-XR-125 includes a counter-weight to stabilize the palletizer and a foot operated floor lock to hold the unit in place. To operate, simply push the drum palletizer against the side of the drum, raise the "head" containing the jaws to engage the grip, hold and lift drum. The jaws will release automatically when the drum is lowered onto a pallet or the floor. AC and Air powered drum lifters available please request a quote.
The Morse 82H-XR-125 drum palletizer is built to order with an estimated lead time to leave the warehouse of 10 weeks.
Specifications:
- Capacity: 600 LBS (272 kg)
- Handles RIMMED steel, fiber & plastic drums that are a minimum of 22" (55.8 cm) tall and have a 75 LB (34 kg) minimum weight
- Extended reach capability allows the user to palletize or depalletize a drum from almost any point on the pallet

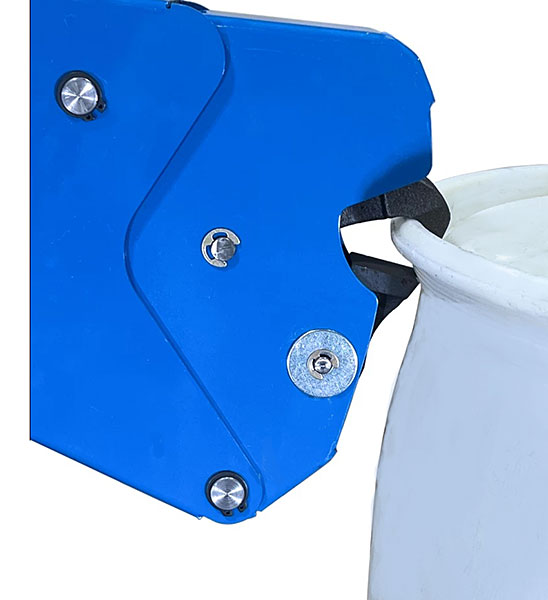

- 12v DC powered lift/lower with mechanical automatic drum grip

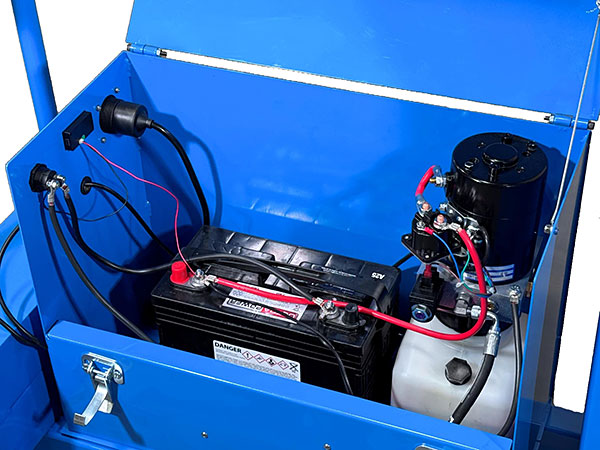

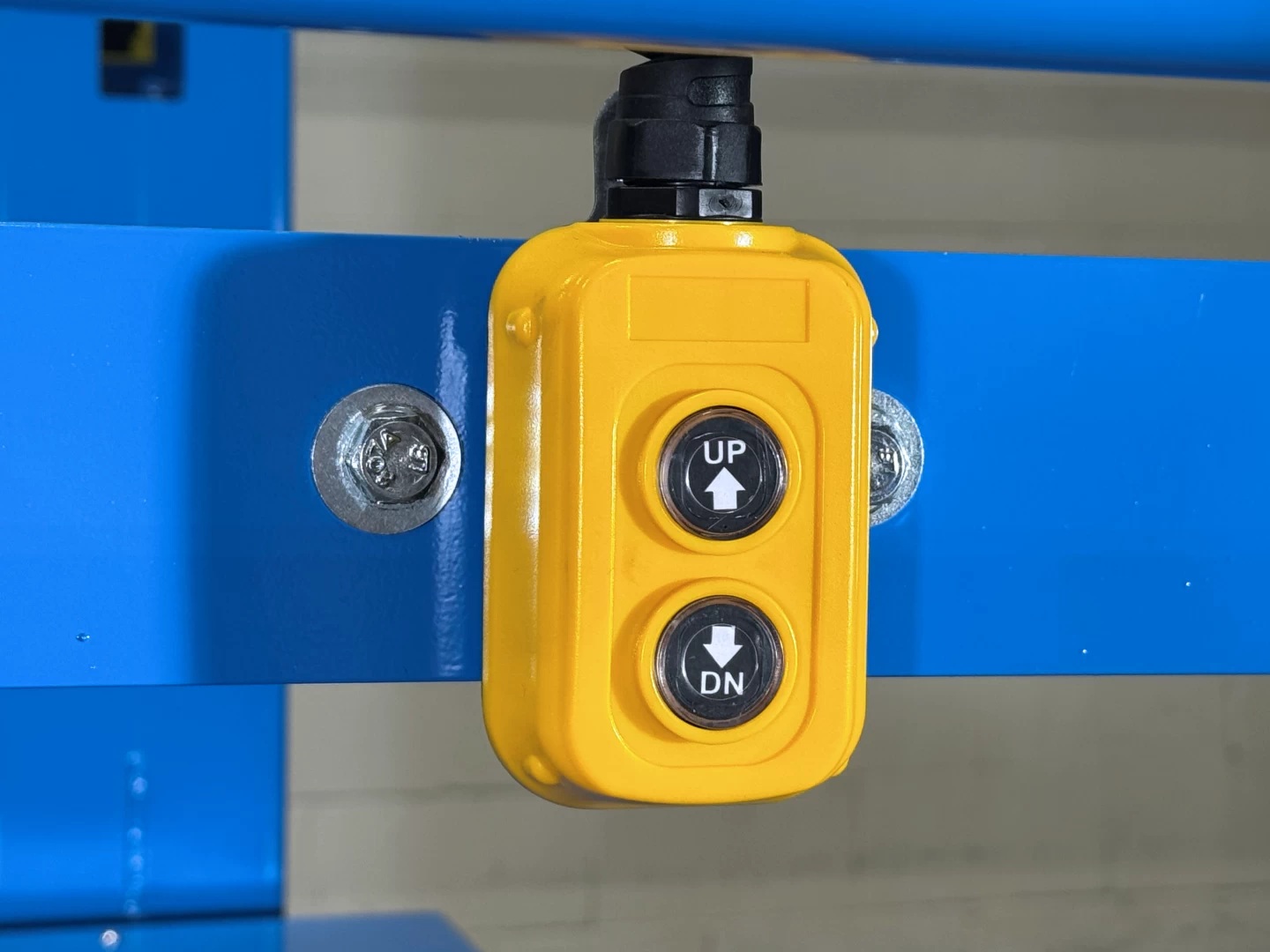

- 12v battery, built-in 100/220V 50/60Hz AC battery charger, battery level display, and 2 button hand control pendant included
- Raise a 34-7/8” (886 mm) tall drum up to 19” (483 mm) above the floor
- Easily move upright drum onto and off pallets and floor
- Counterweight for improved stability
- 24” (60.96 cm) wide base allows for maneuverability in confined spaces
- Foot operated floor lock holds drum palletizer in place
- Overall Size: 24" (61 cm) Wide x 61.4" (156 cm) Long x 49.5" (125.7 cm) High (collapsed)
- Rolls smoothly on (2) 6" front casters and (2) 4" rear swivel casters for easy steering
