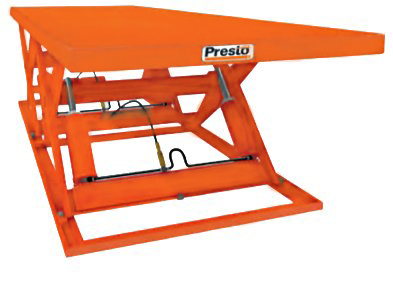

Presto X3W48 Wide Base Lift Tables are engineered for exceptional stability and versatility, featuring an additional 12" of base width to accommodate platforms up to 60" x 88". This design ensures safe handling of off-center loads without the risk of tipping, making them ideal for various industrial applications. Available in capacities of 2,000, 4,000, or 6,000 lbs, these lifts offer a vertical travel of 48", with a lowered height of 7.75" and a raised height of 55". Each wide base lift table is equipped 1-1/2 HP motor with 230,460V / 3Phase / 60Hz power, delivering lifting speeds between 32 to 38 seconds. The robust construction includes 3/4" steel plate scissor legs, heavy-duty hydraulic cylinders with chrome-plated rams, and polyurethane seals, ensuring durability and smooth operation. Additional features such as lifetime-lubricated bearings on all rollers and pivot points, a hinged platform for easy cylinder access, and optional hand or foot controls enhance functionality and ease of maintenance. Designed to meet the demands of heavy-duty lifting tasks, these X3W48 Wide Base Lift Tables provide reliable performance and enhanced safety in material handling operations.
Presto X3W48 Wide Base Lift Tables have an estimated lead time to leave the warehouse of 5 to 6 weeks.
Specifications:
- Lift Capacities: 2000 lbs, 4000 lbs, or 6000 lbs
- Vertical Travel: 48"
- Lowered Height: 7.75"
- Raised Height: 55"
- Standard Platform Size: 36" x 64"
- Maximum Platform Size: 60" x 88"
- Lifting Speeds: 32 sec (X3W48-20), 34 sec (X3W48-40), 38 sec (X3W48-60)
- Motor: 1-1/2 HP
- Voltage: 230,460V / 3Phase / 60Hz
- Construction: 3/4" steel plate scissor legs
- Hydraulic Cylinders: Heavy-duty with chrome-plated rams and polyurethane seals
- Bearings: Lifetime-lubricated on all rollers and pivot points
- Platform Access: Hinged platform for convenient cylinder access
- Control Options: Hand control pendant (standard), foot control (optional)

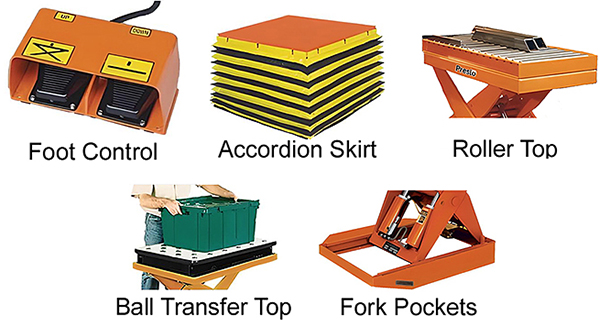

Options:
To see all available options for Presto Lift Tables, Click On Link or photo below to view selections & request a quote.
