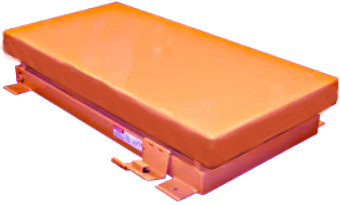

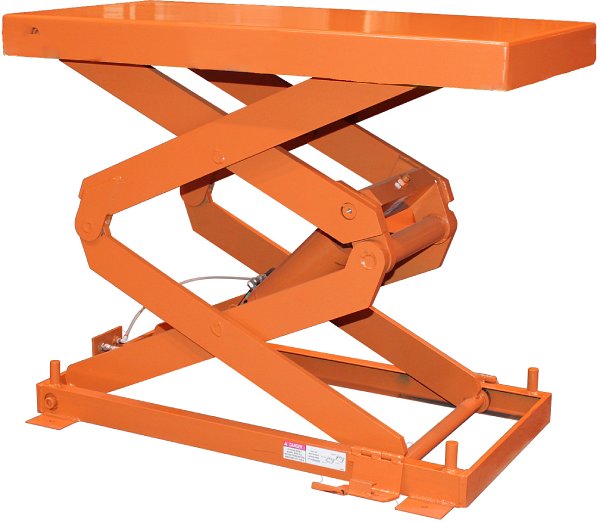

Ecoa CLT compact double scissor lift tables are designed and built for industrial applications that require extended vertical travel. Capacities from range from 2,000 LBS to 6,000 LBS. Lift heights of 44-1/2" and 56-1/2quot; are available. These double lift tables feature an internally mounted 3/4 HP or 3 HP motors depending on model, hand pendant control on 20' coil cord (foot control available), and UL and/or CSA approved controller components. Rectangular structural tube scissor legs and torque tubes provide maximum stability and minimal deflection. A hydraulic flow limiter valve in installed at the base of each cylinder. Ecoa DSL lift tables are all steel construction with high quality components for years of reliable service.
Ecoa CLT Compact Double Scissor Lift Tables are built to order with an estimated lead time to leave the warehouse of 8 to 10 weeks.
