Presto B800 Pallet Stackers are manual push with powered lift stackers that feature a straddle leg width that is fixed at 26” I.D. making them perfect for handling smaller pallets or open bottom skids weighing up to 2,000 LBS. With maximum lift heights of 62" and 74", these Presto pallet stackers are ideal for loading / unloading trucks and transporting loads to where they are needed. The fork width is adjustable. The forks are 30” long and the load center is 20”. Presto B800 electric pallet stackers come standard with (1) heavy duty 12v battery with microprocessor charger. Options include solid steel slip on platform, wired remote hand or foot control, fifth wheel with tiller, roller bed with winch for die pulling, eagle beak vertical drum grabber, boom with hook, ram, extended backplate, inverted forks, roller bed, custom platforms and more - see link below.
Presto B800 pallet stackers are built to order with an estimated lead time to leave the warehouse of 3 to 4 weeks.
Specifications:
- Fixed straddle leg width: 26" I.D. (32" O.D.)
- 2,000 LB capacity at 20" load center
- Lowered Height: 2-1/2" | Max. Lift Height: 62" & 74" depending on model
- Adjustable Fork Width: 6-1/2" to 26-1/2" O.D.
- Individual Fork Size: 30"L x 3"W x 1½" Thick (20" load center)
- Lift Speed: 5" per second
- Fixed mast
- Flow control valve for smooth lowering
- Dual leaf-type chains with 8250 LB yield point
- 12v heavy duty battery & microprocessor charger
- Turning Radius With 40" Load: 85" Aisle (12" operator clearance)
- Floor saving 5" dia. phenolic load wheels
- Hand-operated floor lock
- Warranty: 1 year on welded structural frame. All other parts are 90 days parts and 30 days labor.

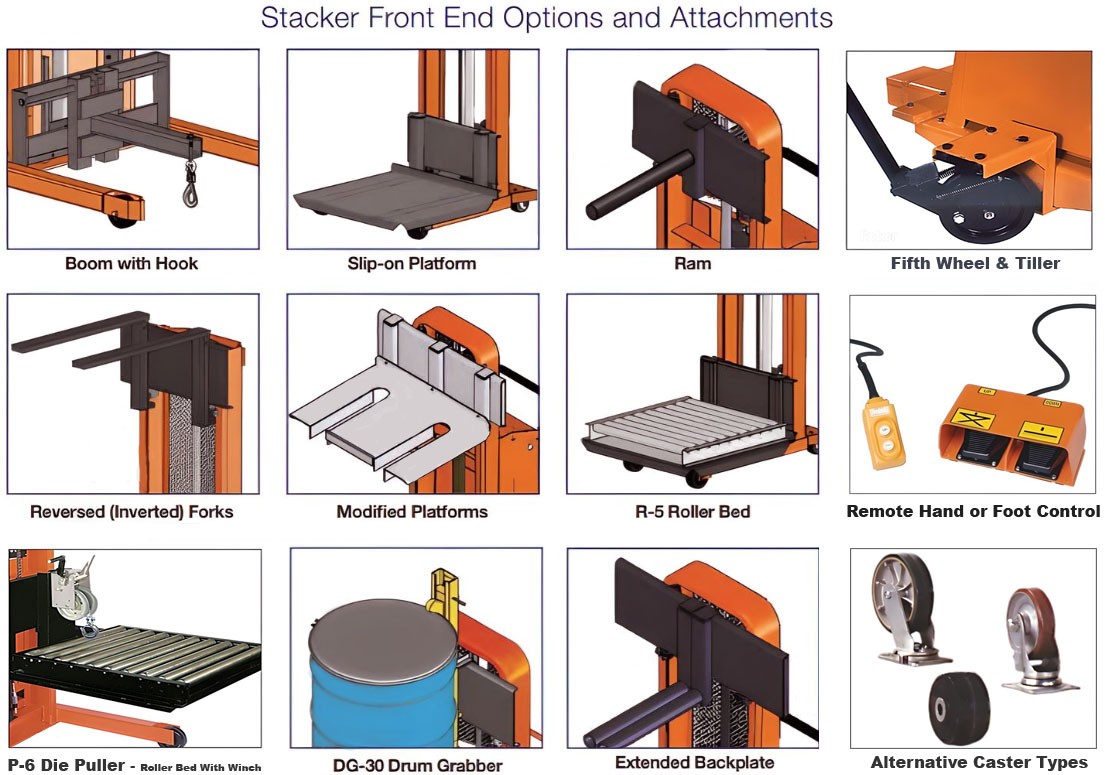

Stacker Options:
To see all available options for Presto Stackers, Click on link or photo below to view selections & request a quote.
