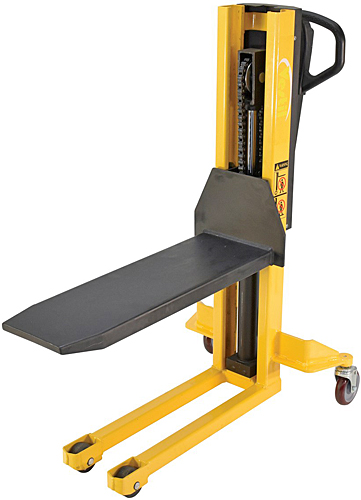

The Vestil VHPS-NM-600-39 Single Fork Skid Lifter is designed to lift smaller items with ease. With a 10½"W x 32"L single fork, this skid positioner is suited for open-bottom skids, crates and baskets - it cannot be used with pallets. The single mast is 48¼" high, while the handle has a hydraulic hand pump to raise the fork. Service range is 3½" to 39", with ⅞" stroke per pump and 57 pumps to maximum lift height. Down time is 12 seconds. The VHPS-NM-600-39 skid positioner has a maximum capacity of 600 LBS. Made of steel with a yellow and black powder coat finish.
Specifications:
- Maximum capacity: 600 LBS
- Single fork: 10½"W x 32"L
- Service range: 3½" to 39"
- Manual hand pump raises load
- 5" dia. x ¼"W poly-on-poly steer wheels, 3⅛" dia. x 1⅜"W poly on poly load wheel
- Includes foot brake for parking
- Overall size: 24"W x 45"L x 48¼"H
- Weight: 200 LBS
