Vestil TRI-AA Adjustable Leg Aluminum Tripod Hoist Stand

Vestil TRI-AA Adjustable Aluminum Tripod Hoist Stand
Rotate up for smooth surfaces or down for spike pad
Vestil Aluminum Tripod Hoist
Adjustable Height Tripod Crane
Back to List
$2,036.00
SKU: TRI-AA
Qty:



Additional Info

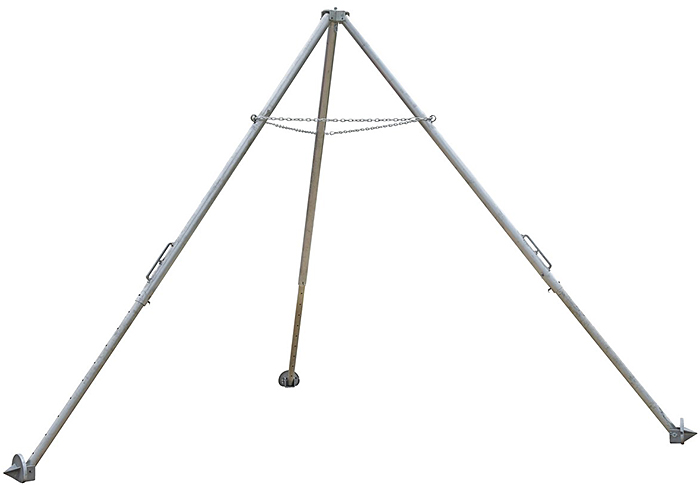

The Vestil TRI-AA Aluminum Tripod Hoist Stand provides a convenient height-adjustable and portable lifting solution. This tripod crane is designed for use in limited access areas and confined spaces. Independently adjustable legs allow for use on uneven surfaces. Leg height adjusts in six-inch increments. Features pivoting feet that easily switch between flat feet for smooth surfaces and spiked feet for use on outdoor terrain. A swivel eyebolt and safety chain come standard. Portable tripod hoists fold easily for portability and storage with collapsed dimensions of approximately 126"L x 20"W x 20"D. Chain hoist not included. The Vestil Tri-AA Portable Tripod Crane is made of lightweight aluminum. Meets ANSI safety requirements for confined space Z117.1.



The Vestil TRI-AA Adjustable Leg Aluminum Tripod Hoist is built to order with an estimated lead time to leave the warehouse of 5 business days.



Specifications:

  • Capacity: 1,000 LBS
  • Adjustable height legs
  • Pivot feet with option of spiked or smooth bottom, for different surfaces
  • Overall height range: 111⅝" - 171⅞"
  • Eyelet height range: 104¼" - 164½"
  • Maximum base radius: 74⅞"
  • Includes swivel eyebolt and safety chain
  • Steel construction with powder coat finish
  • Weight: 247 LBS



Hoist sold separately. Click link to see our selection of Hoists and Trolleys







Product should be inspected frequently to insure safe operation. Testing and inspection of the unit is the responsibility of the end user after final assembly has been completed. For further details see ASME B30.17.
