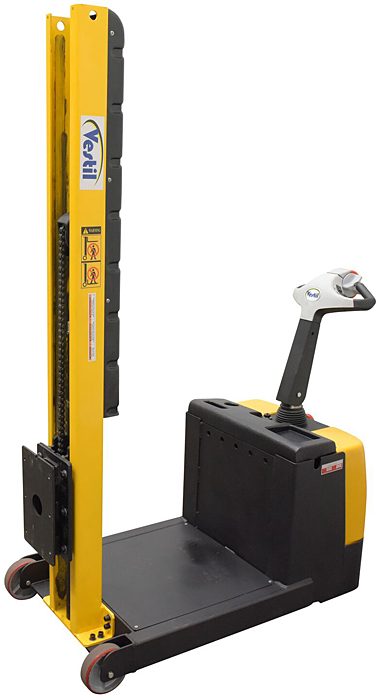

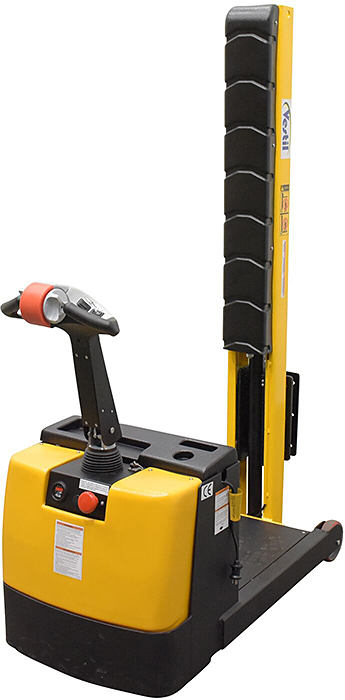

Vestil S-CB-NM-60 Counterbalance Stacker

Vestil S-CB-NM-60

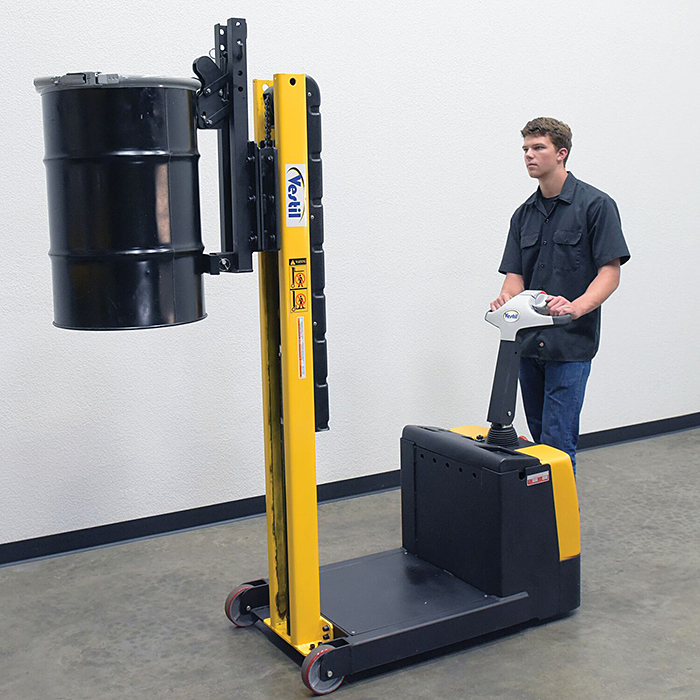

Vestil Counterbalance Stacker With Optional Single Drum Gripper

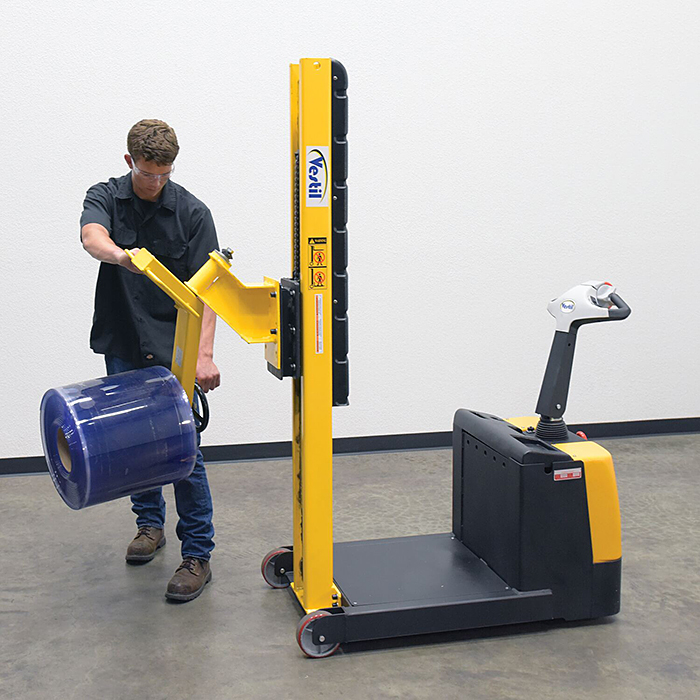

S-CB-NM-60 With Optional Reel Rotator

Vestil S-CB-NM-60

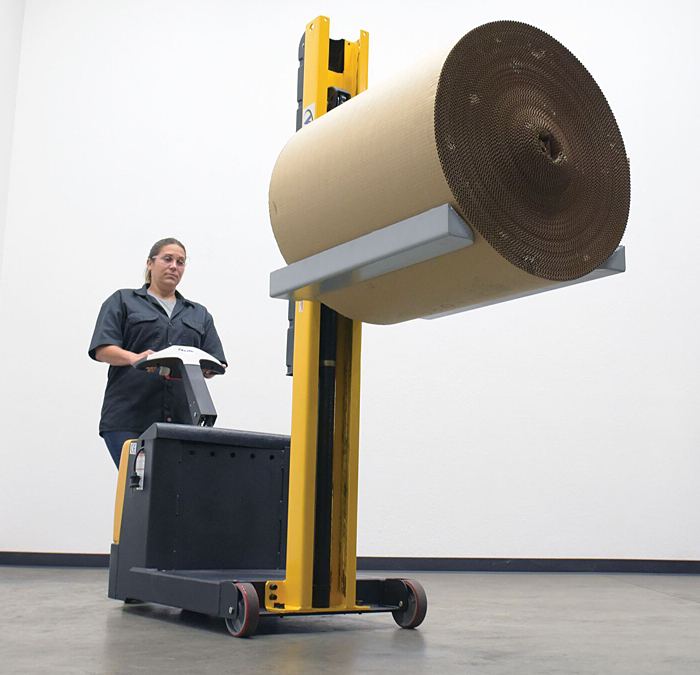

S-CB-NM-60 With Optional Fixed Roll Forks

Click to see More Photos

Back to List

$6,610.00

SKU: S-CB-NM-60

Email This Page Print Page

Scroll Down for More Info

Additional Info

S-CB-NM-60.pdf (113.0 KB)

The Vestil S-CB-NM-60 Counterbalance Stacker with Powered Drive & Lift can be used with 17 different optional attachments including pallet forks, a ball hitch, buggy lifter, drum grippers, spindles and roll lifters, roller conveyor, and reel rotator - see detailed info below. The maximum lift capacity is 600 LBS and the maximum lift height is 60". This versatile electric stacker features a counterbalance that eliminates the need for front legs allowing the unit to get in close to grab the load. Ideal for die loading, machine feeding, and for loading/unloading trucks. Lowered fork height of 8.5" and a max raised fork height of 60". The ergonomic handle features an easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift and lower controls, proprietary safety-enhancing emergency reverse function and horn. Powered by (2) 12V, 55Ah lead acid batteries with an integral 24V/10amp battery charger & battery level gauge included. The Vestil S-CB-NM-60 counterbalance stacker includes a quick access battery compartment makes for easy battery maintenance. Stacker features an automatic dead-man feature that activates when the user releases handle for increased safety.

The Vestil S-CB-NM-60 Counterbalance Stacker has an estimated lead time to leave the warehouse of 3 business days.

Specifications:

17 optional multi-functional attachments available - see info below
Capacity: 600 LBS - Please note: optional attachment capacity may be less than stacker capacity
Lowered Height: 8.5" | Max. Raised Height: 60"
Counterbalance eliminates need for front support legs
Drive Motor: 24V / 0.5Kw
Travel Speed: With load: 1.8 mph | Without Load: 2.7 mph
Lift Motor: 24V / 0.8Kw
Lift Speed: With load: 2.95" / sec | Without Load: 4" / sec
(2) 12V, 55Ah lead acid batteries, includes integral 24V 10amp battery charger & battery level gauge
Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds & lift/lower controls
Proprietary safety-enhancing emergency reverse function and horn
Automatic dead-man feature that activates when the user releases handle
Rolls on poly-on-steel steer and load wheels
Overall size: 25.56"W x 51.18"L x 61.81"H
Weight: 780 LBS

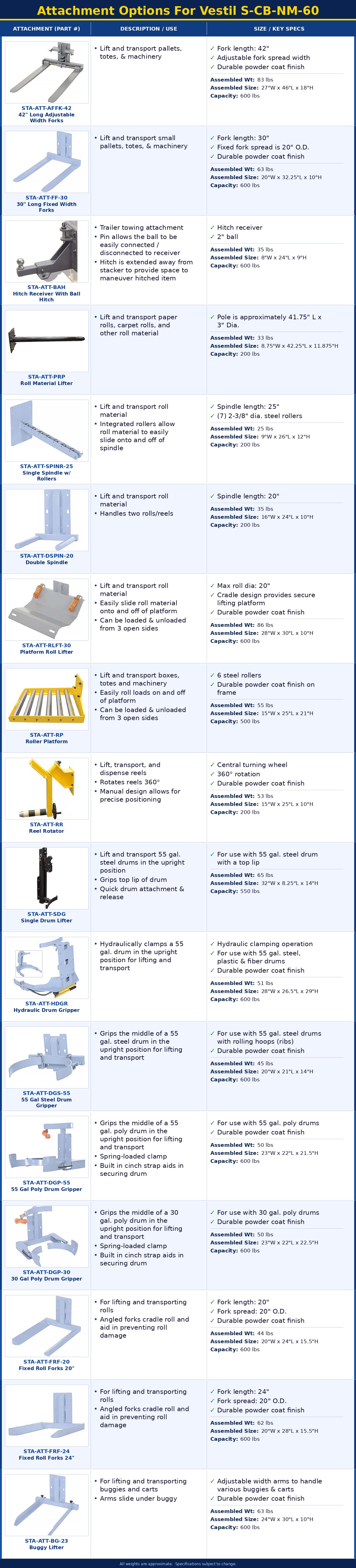

S-CB-NM-60 Attachments

Vestil S-CB-NM-60 Counterbalance Stacker:

SKU	Capacity/Desc.	Weight	Price	Qty
S-CB-NM-60	600 LBS	780 LBS	$6,610.00

Optional Attachments:

SKU	Capacity/Desc.	Capacity	Weight	Price
STA-ATT-AFFK-42	Adjustable Fork Attachment - 42"L	600 LBS	83 LBS	$966.00
STA-ATT-FF-30	Power Lift Fixed Forks Attachment - 30"L	600 LBS	65 LBS	$476.00
STA-ATT-BAH	Power Lift Single Ball Hitch	600 LBS	35 LBS	$115.00
STA-ATT-PRP	Power Lift Paper/Carpet Roll Lifter Attachment	200 LBS	33 LBS	$299.00
STA-ATT-SPINR-25	Single Spindle With Rollers Attachment - 2-3/8"	200 LBS	25 LBS	$482.00
STA-ATT-DSPIN-20	Power Lift Fixed Double Spindle Attachment	200 LBS	35 LBS	$251.00
STA-ATT-RLFT-30	Power Lift Roll Lifter Attachment - 20" Diameter	600 LBS	86 LBS	$593.00
STA-ATT-RP	Power Lift Roller Platform Attachment - 6 rollers - open 3 sided design	500 LBS	55 LBS	$549.00
STA-ATT-RR	Power Reel Rotator Attachment - Centrally located turning wheel	200 LBS	53 LBS	$356.00
STA-ATT-SDG	Power Lift Single Drum Gripper Attachment	550 LBS	65 LBS	$394.00
STA-ATT-HDGR	Hydraulic Drum Gripper Attachment - 55 gal plastic, fiber or steel drums only	600 LBS	51 LBS	$696.00
STA-ATT-DGS-55	Manual Steel Drum Gripper Attachment - 55 gal steel drum only	600 LBS	46 LBS	$509.00
STA-ATT-DGP-55	Manual Poly Drum Gripper Attachment - 55 gal poly drum only	600 LBS	50 LBS	$666.00
STA-ATT-DGP-30	Manual Poly Drum Gripper Attachment - 30 gal poly drums only	600 LBS	50 LBS	$593.00
STA-ATT-FRF-20	Power Lift Fixed Roll Fork Attachment - 20"L	600 LBS	64 LBS	$437.00
STA-ATT-FRF-24	Power Lift Fixed Roll Fork Attachment - 24"L	600 LBS	46 LBS	$539.00
STA-ATT-BG-23	Power Lift Buggy Lifter Attachment	600 LBS	63 LBS	$275.00
