Vestil PEL-88S-D3 Platform Lift Truck

Vestil PEL-88S-D3
Vestil PEL-INDEX-4 Programmable Height Indexing
PEL-2PB Detachable Hand Held Control On 8' Coil Cord
Vestil PEL-88S-D3 DC Powered Platform Lift
Back to List
$2,165.00 - $5,442.00


The Vestil PEL-88S-D3 is a DC powered platform lift truck designed to be sturdy and lightweight making it ideal for transporting and positioning materials weighing up to 175 LBS to a maximum height of 57”. This versatile platform lift comes standard with (2) 12V batteries and a 115V on-board charger (other power options available - see chart below). The 23½” x 18½” platform has a 9” horizontal load center. The push button control panel allows for slow, medium, or fast lift and lower speeds. A detachable handheld control on coil cord is optional. The low profile design is perfect for maneuvering in narrow aisles and confined spaces. An optional Programmable Height Indexing function allows the operator to select multiple preset working heights with the touch of a button. Platform lift truck rolls easily on (2) front swivel and (2) rear swivel-locking casters. The Vestil PEL-88S-D3 features all steel construction with durable powder coat finish and a high density polyethylene platform for years of reliable service.

Also available: Model PEL-400S-57-D3-KEG, which has a keg lifting attachment instead of a platform. Lifts kegs weighing up to 175 LBS to a maximum raised height of 37".



  • 175 LB capacity
  • Lowered Height 5⁵⁄₈” / Raised Height 57" for platform models; 37" for keg lift

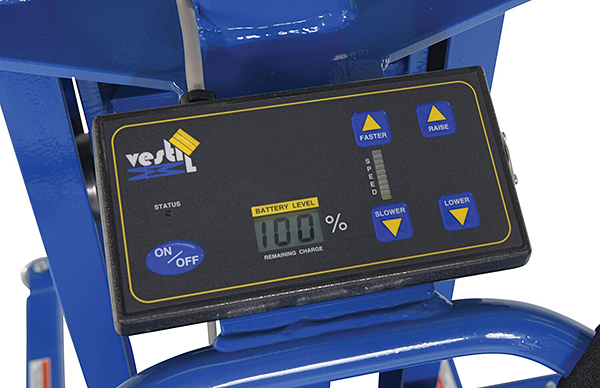

  • Standard push button control panel with slow, medium, and fast speeds
  • 23½” x 18½” high density polyethylene platform with 9" horizontal load center / keg lifting attachment
  • (2) 12V AGM maintenance free batteries and a 115V AC on-board charger (other power options available - see chart below)
  • (2) front swivel and (2) rear swivel locking poly casters
  • All steel with blue powder coat finish



  • Detachable handheld control on coil cord for remote operation (PEL-2PB)
  • Wireless Remote Control - Model PEL-RRC
  • Programmable Height Indexing option allows presets of multiple working heights at a touch of a button. PEL-INDEX-4 features 4 setpoints and 2 increments, PEL-INDEX-21 features 21 setpoints and no increments. Accurate to +-1/4" to 3/4" depending on the speed setting being used.


             - Model PEL-88S-D3 only


Vestil PEL-88S Platform Lift Trucks:
SKUCapacity/Desc.Estimated lead timeWeightPriceQty
PEL-88S-D3175 LBS / 24v DC Powered Platform Lift Truck3 bus. days180 LBS $2,165.00
PEL-88S-D3-KEG175 LBS / 24v DC Powered Keg Lift Truck10 bus. days265 LBS $2,297.00
PEL-88S-D3A1 175 LBS / 24v DC or 115v 1 PH. AC Powered Platform Lift Truck10 bus. days180 LBS $2,972.00
PEL-88A-A1175 LBS / 115v 1 PH. AC Powered Platform Lift Truck10 bus. days180 LBS $2,747.00
Options - Will Increase Lead Time:
PEL-2PBDetachable Hand Held Control On Coil Cord1 LBS $95.00
PEL-RRCWireless Remote Control1 LBS $787.00
PEL-INDEX-44 Setpoints & 2 Increments Programmable Height Indexing0 LBS $1,852.00
PEL-INDEX-2121 Setpoints & 0 Increments Programmable Height Indexing 0 LBS $1,852.00
Attachments - Will Increase Lead Time:
PEL-HOOKHook Arm With (3) 11/16" Holes & 1 Hook9 LBS $80.00
PEL-SPINSingle Spindle - 20"L x 3/8" Dia.11 LBS $97.00
PEL-DSPINDouble Spindle - 2 Spindles @ 20"L x 3/8 Dia. Each21 LBS $131.00
PEL-VBLKBlock Attachment - 20"L x 18¹³⁄₁₆"W27 LBS $131.00
PEL-CONVConveyor With Brake - Usable Dims 20¹⁄₈"L x 22"W x 9"H40 LBS $618.00
PEL-PAILPail Dumper - Max Pail Dia. 11" / Max Capacity 125 LBS20 LBS $327.00
PEL-RRReel Rotator With 9"L (usable) x 15/16" Dia. Arbor40 LBS $393.00
