Vestil PEL-400S-72-D3 Platform Lift Truck

Vestil PEL-400S-72-D3
Vestil PEL-INDEX-4 Programmable Height Indexing
PEL-CONV, PEL-DSPIN, PEL-PAIL, PEL-HOOK
PEL-SPIN, PEL-VBLK, PEL-RR
Back to List
$3,773.00 - $7,485.00
SKU: PEL-400S-72-D3

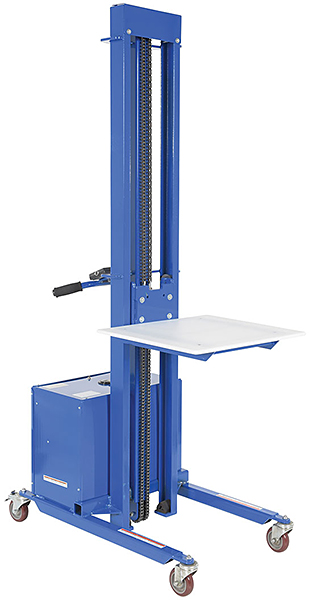

The Vestil PEL-400S-72-DC is a DC powered platform lift truck designed to be sturdy and lightweight making it ideal for transporting and positioning materials weighing up to 400 LBS to a maximum height of 72”. This versatile platform lift comes standard with (2) 12V AGM batteries and a 115V on-board charger (other power options available - see chart below). The 24” x 20” platform has a 9” horizontal load center. The push button control panel allows for slow, medium, or fast lift and lower speeds. A detachable handheld control on coil cord is optional. The low profile design is perfect for maneuvering in narrow aisles and confined spaces. An optional Programmable Height Indexing function allows the operator to select multiple preset working heights with the touch of a button. Platform lift truck rolls easily on (2) front swivel and (2) rear swivel-locking casters. The PEL-400S-72-D3 features all steel construction with durable powder coat finish and a high density polyethylene platform for years of reliable service.



Specifications:

  • 400 LB capacity
  • Lowered Height 6½” / Raised Height 72"

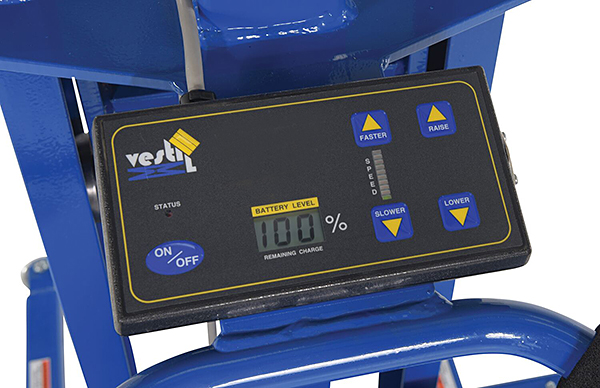

  • Standard push button control panel with slow, medium, and fast speeds
  • 23½” x 18½” high density polyethylene platform with 9" horizontal load center
  • (2) 12V AGM batteries and a 115V AC on-board charger (other power options available - see chart below)
  • (2) rigid front wheels and (2) swivel locking rear wheels
  • All steel construction with blue powder coat finish



Options:

  • Various AC & DC power options (see chart below)
  • Detachable handheld control with coil cord for remote operation (PEL-2PB)
  • Wireless Remote Control available - Model PEL-RRC
  • Programmable Height Indexing option allows presets of multiple working heights at a touch of a button. PEL-INDEX-4 features 4 setpoints and 2 increments, PEL-INDEX-21 features 21 setpoints and no increments. Accurate to +-1/4" to 3/4" depending on the speed setting being used.







Vestil PEL-400S-72 Platform Lift Trucks:
SKUCapacity/Desc.WeightPriceQty
PEL-400S-72-D3400 LBS / 24v DC Powered Platform Lift Truck560 LBS $3,773.00
PEL-400S-72-D3A2400 LBS / 24v DC & 230v 1 PH. AC Powered Platform Lift Truck566 LBS $5,145.00
PEL-400S-72-A2400 LBS / 230v 1 PH. AC Powered Platform Lift Truck566 LBS $5,070.00
Options - Will Increase Lead Time:
SKUCapacity/Desc.WeightPriceQty
PEL-2PBDetachable Hand Held Control1 LBS $89.00
PEL-RRCWireless Remote Control1 LBS $776.00
PEL-INDEX-44 Setpoints & 2 Increments Programmable Height Indexing2 LBS $1,680.00
PEL-INDEX-2121 Setpoints & 0 Increments Programmable Height Indexing 2 LBS $1,680.00
Attachments - Will Increase Lead Time:
SKUCapacity/Desc.WeightPriceQty
PEL-HOOKHook Arm With (3) 11/16" Holes & 1 Hook9 LBS $73.00
PEL-SPINSingle Spindle - 20"L x 3/8" Dia.11 LBS $90.00
PEL-DSPINDouble Spindle - 2 Spindles @ 20"L x 3/8 Dia. Each21 LBS $119.00
PEL-VBLKBlock Attachment - 20"L x 18¹³⁄₁₆"W27 LBS $118.00
PEL-CONVConveyor With Brake - Usable Dims 20¹⁄₈"L x 22"W x 9"H40 LBS $560.00
PEL-PAILPail Dumper - Max Pail Dia. 11" / Max Capacity 125 LBS20 LBS $660.00
PEL-RRReel Rotator With 9"L (usable) x ¹⁵⁄₁₆" Dia. Arbor40 LBS $356.00
