Vestil MWP-440-M Manual Work Positioner

Vestil MWP-440-M Manual Work Positioner
Vestil MWP-400-M Optional Attachments - Click To Enlarge

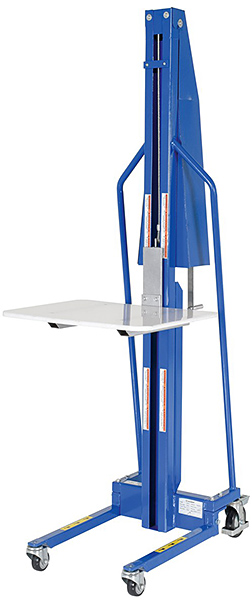

Vestil MWP-400-M Hand Winch Lift Truck
Vestil MWP-400-M Platform Lift Truck
Click to see More Photos
Back to List
SKU: MWP-440-M


Scroll Down for More Info

The Vestil MWP-440-M Manual Work Positioner is designed to easily lift and lower loads weighing up to 440 LBS. This lightweight hand winch lift truck is ideal for narrow aisles and small spaces. The platform is 18½"W x 23¾"L and is height adjusted via a manual hand winch. The lowered height is 5¼" and the maximum raised height is 59". The hand winch raises the platform at an approximate rate of 1¹⁄₈" per crank rotation. An auto brake system allows for controlled platform lowering. The MWP-440-M rolls easily on front swivel wheels and rear swivel wheels with brakes. Steel construction and a tough enamel finish provide for a long service life. Several attachments are available (see chart below and photo above).



  • Capacity: 440 LBS
  • Manual hand winch raises / lowers platform
  • Lowered height: 5¼" / Raised height: 59"
  • Auto brake for controlled lowering
  • Platform size: 18½"W x 23¾"L
  • (2) 3" dia. swivel load casters, (2) 5" dia. swivel locking steer casters
  • Overall size: 23¾"W x 32"L x 75¼"H
  • Steel construction
  • Weight: 186 LBS



Vestil MWP-440-M Manual Work Positioner:
SKUCapacity/Desc.Platform (WxL)Service RangeWeightPriceQty
MWP-440-M440 LBS23-3/4" x 18-1/2" 5-1/4" to 59"186 LBS $836.00
MWP-VBLKV BLOCK ATTACHMENT for carrying roll material. 16"W x 16"D x 3-1/4"H15 LBS $123.00
MWP-RRREEL ROTATOR ATTACHMENT - Allows for the easy rotation of roll material from the vertical to horizontal position and vice versa.25 LBS $258.00
MWP-DSPINDOUBLE SPINDLE ATTACHMENT - 2"D x 17-1/2"L (5-1/2" between spindles)15 LBS $87.00
