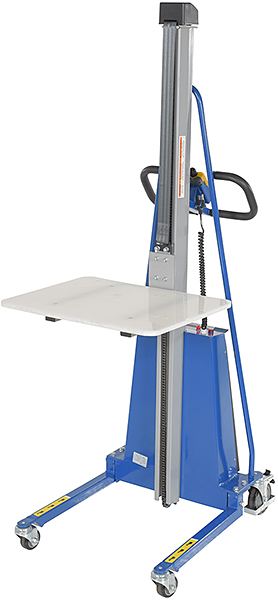

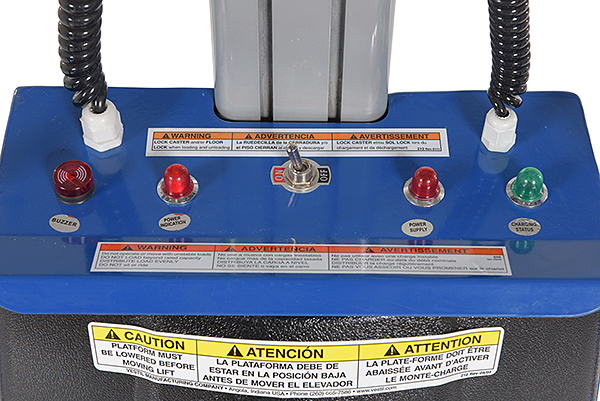

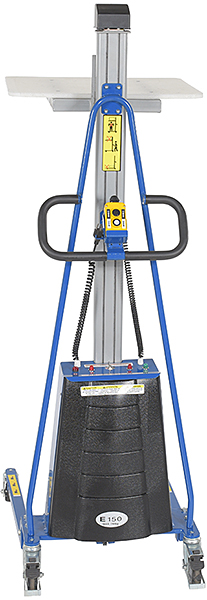

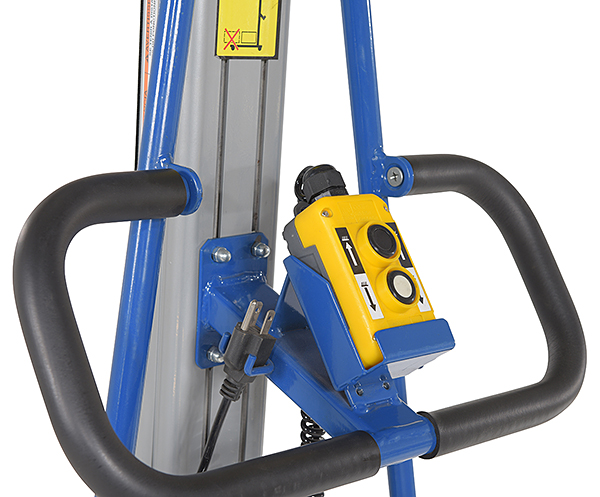

The Vestil MWP-330-DC electric work positioner is designed to easily lift and lower loads weighing up to 330 LBS. This lightweight DC-powered lift truck is ideal for narrow aisles and small spaces. The platform is 18½"W x 23⅝"L and is height adjusted via Up and Down buttons. The lowered height is 5¼" and the maximum raised height is 59". Electric work positioner is powered by (2) 12V AGM batteries. Lift speed is 30 seconds, and lowering speed 29 seconds. The Vestil MWP-330-DC rolls easily on front swivel wheels and rear swivel wheels with brakes. Steel construction and a tough enamel finish provide for a long service life. Several attachments are available (see chart below and photo above).
The Vestil MWP-330-DC electric work positioner has an estimated lead time to leave the warehouse of 3 business days.
Specifications:
- Capacity: 330 LBS
- Powered by (2) 12V AGM batteries
- Lowered height: 5¼" / Raised height: 59"
- Lift speed: 30 sec / Down speed: 29 sec
- Platform size: 23⅝"W x 18½"L
- (2) 3" dia. swivel load casters, (2) 5" dia. swivel locking steer casters
- Steel construction
- Overall size: 23⅝"W x 34¼"L x 70½"H
- Weight: 178 LBS
Options: - See Image Above & Chart Below
- V Block Attachment - For carrying roll material. Size is 16"W x 16"D x 3-1/4"H, Handles a max. roll diameter of 24".
- Reel Rotator Attachment - Allows for the easy rotation of roll material from the vertical to horizontal position and vice versa.
- Double Spindle Attachment - Double spindles that are 2"D x 17-1/2"L. There is 5-1/2" between spindles.
- Single Spindle Attachment - Single spindle that is 2"D x 23-1/2"L
