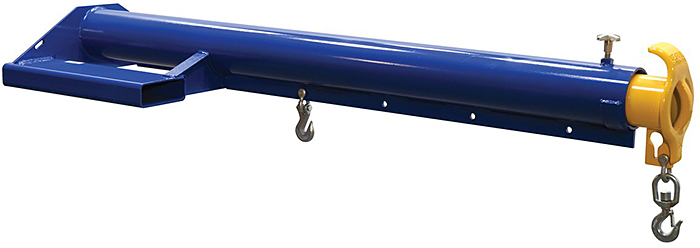

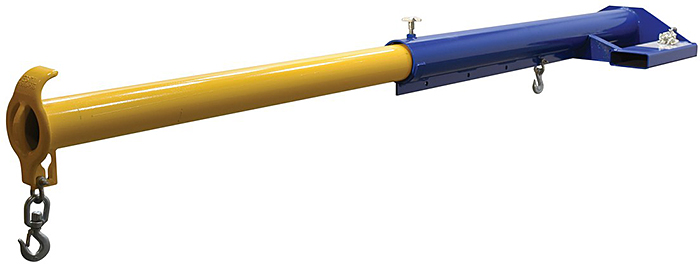

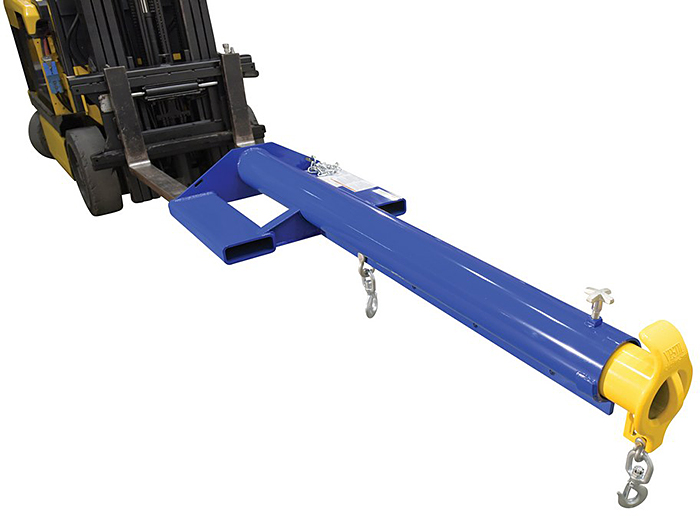

The Vestil LM-EBT-4-24 Telescoping Forklift Boom is an economical and efficient choice for a wide array of lifting & transporting applications. This heavy-duty forklift boom attachment has an 85” retracted length and a max. 153” extended length. Lifting capacity ranges from 4,000 LBS at 36” to 1,750 LBS at 144”. Boom comes standard with one rigid and one swivel lifting hook. In addition to the end hook point, this versatile forklift boom features 4 convenient intermediate hook points. The LM-EBT-4-24 is constructed of structural steel with a durable enamel finish for years of the service. Welded to meet AWS specifications.
OSHA regulations require that users of forklift attachments obtain written approval from the forklift manufacturer before using the attachment.
- Telescopic with an infinitely adjustable locking screw
- Fork pockets are 7½"W x 2½"H usable on 11", 24", 30", or 36" center depending on model
- Larger pockets optional - see options below
- Two lifting hooks (1 swivel & 1 rigid)
- Slot lock for easy chain use
- End hook point plus 4 intermediate hook points
- Safety restraint to secure the boom to the forklift for safe operation
- Overall Extended Size: 151½”L x 13½"H
Options: (may increase standard lead time)
- Model LM-FP - Larger Fork Pockets 8¼"W x 4¼"H (Inside Dimensions)
- Model LM-FP-37 - Larger Fork Pockets 7"W x 3"H (Inside Dimensions)
- Model LM-FP-39 - Larger Fork Pockets 9"W x 3"H (Inside Dimensions)
