Vestil LM-1T-8-24-HBE-DC Hydraulic Telescoping Forklift Boom

Vestil LM-1T-8-24-HBE-DC Hydraulic Telescoping Forklift Boom
Vestil LM-1T-8-24-HBE-DC Powered Telescoping Forklift Boom
Vestil LM-1T-8-24-HBE-DC Telescoping Forklift Boom
Vestil LM-1T-8-24-HBE-DC Electric Forklift Boom
Click to see More Photos
Back to List
$3,995.00
SKU: LM-1T-8-24-HBE-DC
Qty:



Scroll Down for More Info
Additional Info

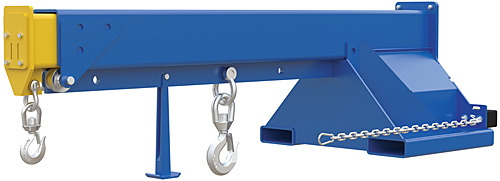

The Vestil LM-1T-8-24-HBE-DC Hydraulic Telescoping Forklift Boom features a 24½" overall height and heavy-duty frame support leg. The boom is extended and retracted using a 12V DC power unit with a hand control on an 8' cord, and can be extended/retracted while loaded. This hydraulic forklift boom has an 83¾” retracted length and a max. 144¾” extended length. Lifting capacity ranges from 8,000 LBS at 36” to 2,200 LBS at 142” - see chart below. Boom comes standard with two lifting hooks. In addition to the end hook point, this versatile forklift boom features 4 convenient intermediate hook points. The LM-1T-8-24-HBE-DC is constructed of structural steel with a durable powder coat finish for years of service.

OSHA regulations require that users of forklift attachments obtain written approval from the forklift manufacturer before using the attachment.



The LM-1T-8-24-HBE-DC forklift boom is built to order with an estimated lead time to leave the warehouse of 50 to 60 business days.



Specifications:

  • Maximum capacity: 8,000 LBS / Movable capacity 2,000 LBS
  • Extends & Retracts using 12V DC battery with hand control on 8' cord;
  • Can be extended/retracted under load
  • Telescopic and features an infinitely adjustable locking screw
  • Min. hook point is 36", Max. hook point is 142"
  • Fork pockets are 7¼"W x 2¼"H usable on 24" centers
  • 36" Safety restraint to secure the boom to the forklift for safe operation
  • Two lifting hooks
  • Overall Size: 83¾"L to 144¾" x 32"W x 24½"H
  • Weight: 858 LBS
