Vestil JIB-P Transportable Jib Cranes

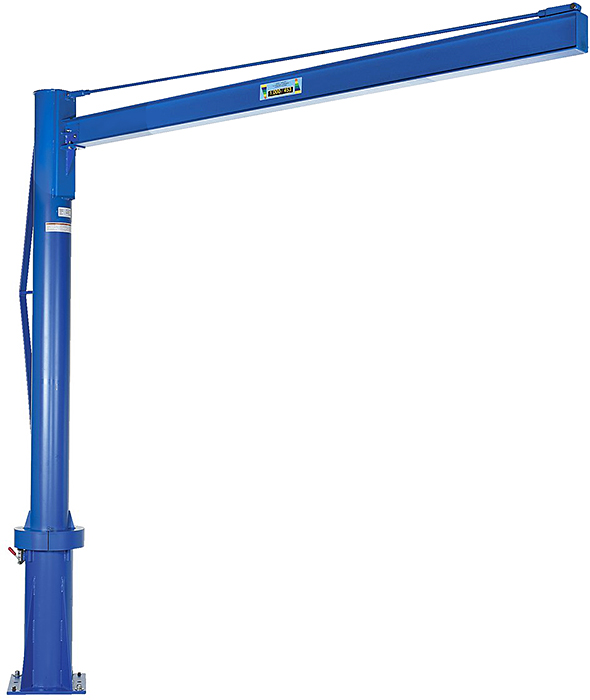

Vestil JIB-P-10-10-10 Multi-Station Transportable Jib Crane
Vestil JIB-P Base
Back to List
$1,585.00 - $2,530.00
SKU: JIB-P-10-10-10

Vestil JIB-P Multi-Station Transportable Jib Cranes are built for use in multiple locations. Cranes are designed to handle most applications requiring up to 1,000 uniform pounds of capacity and up to 120" radius reach. Cranes swivels 360 degrees on a tapered bearing. I-beam is a W type measuring 6 inches high with a 3 inch flange width. Vestil JIB-P jib cranes comes standard with crane and one base socket. Additional base sockets may be purchased for use in other locations (see options below). Hoist and trolley sold separately.



JIB-P Series jib cranes are built to order with an estimated lead time to leave the warehouse of 12 to 15 business days.



Specifications:

  • W Type I-Beam (6" high with 3" flange width)
  • Handles loads up to 1,000 LBS and up to 120" radius reach
  • Friction brake design allows positive locking and controlled rotation of heavy loads
  • 360° continuous rotation of heavy loads
  • Swivel function is handled via a tapered bearing
  • Rugged welded steel construction



Vestil JIB-P Multi-Station Transportable Jib Cranes:
SKUCapacity/Desc.Span (Feet)Usable Height (Feet)WeightPriceQty
JIB-P-10-6-61,000 LBS6'6'578 LBS ($1,585.00)
JIB-P-10-6-81,000 LBS6'8'640 LBS ($1,669.00)
JIB-P-10-6-101,000 LBS6'10'701 LBS ($1,758.00)
JIB-P-10-8-61,000 LBS8'6'606 LBS ($1,628.00)
JIB-P-10-8-81,000 LBS8'8'677 LBS ($1,715.00)
JIB-P-10-8-101,000 LBS8'10'720 LBS ($1,805.00)
JIB-P-10-10-61,000 LBS10'6'632 LBS ($1,789.00)
JIB-P-10-10-81,000 LBS10'8'695 LBS ($1,877.00)
JIB-P-10-10-101,000 LBS10'10'757 LBS ($1,966.00)
Options:
SKUCapacity/Desc.WeightPriceQty

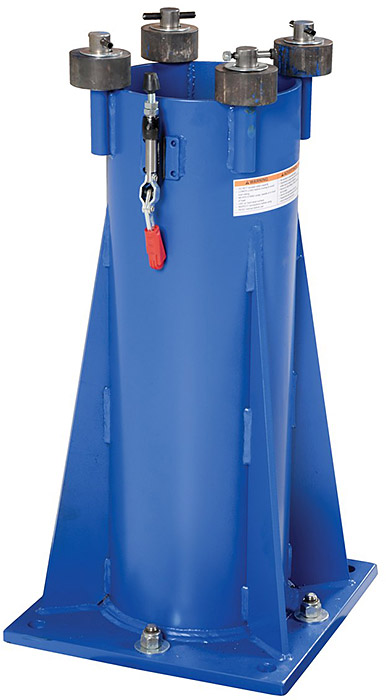

JIB-P-BExtra base socket: 32"H with 17"x17" base145 LBS ($564.00)
