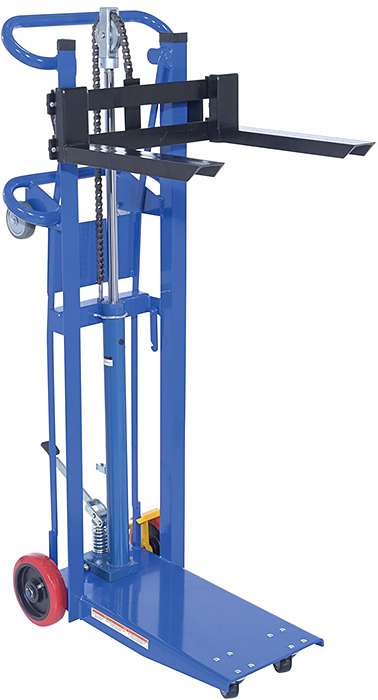

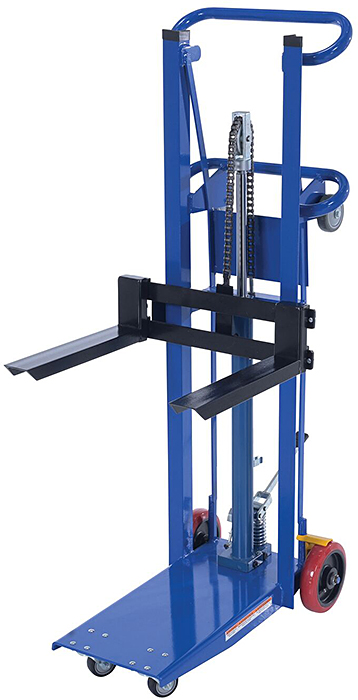

The Vestil HYDRA-4-AF-18 Hydra Cart is a manual platform lift truck is designed to allow a single operator to transport loads in the lowered position and lift materials weighing up to 750 LBS to a height of 48". This manual platform lift features 3"W x 18"L lifting forks and a bottom stationary 23"W x 18”L platform making it versatile for use in which is perfect for use work areas and for unloading heavy objects from trucks. Truck loading and unloading is made easy by rollers built into the handle. The Hydra Cart’s forks are raised using a precision hydraulic system operated by an easy action foot pump that raises approximately 1" per pump. A single wheel brake holds the unit in place while loading and unloading. The Vestil HYDRA-4-AF-18 is all steel construction with a durable powder coat finish for years of reliable service.
The Vestil HYDRA-4-4-AF-18 manual platform lift truck has an estimated lead time to leave the warehouse of 4 business days.
Specifications:
- Capacity: 750 LBS
- 3"W x 18"L forks
- Fork Service Range: 6¼" to 48"
- Stationary Lower Platform Size: 23"w x 18"L
- Hydraulic foot pump yields approximately 1” of fork travel per stroke
- Single wheel brake

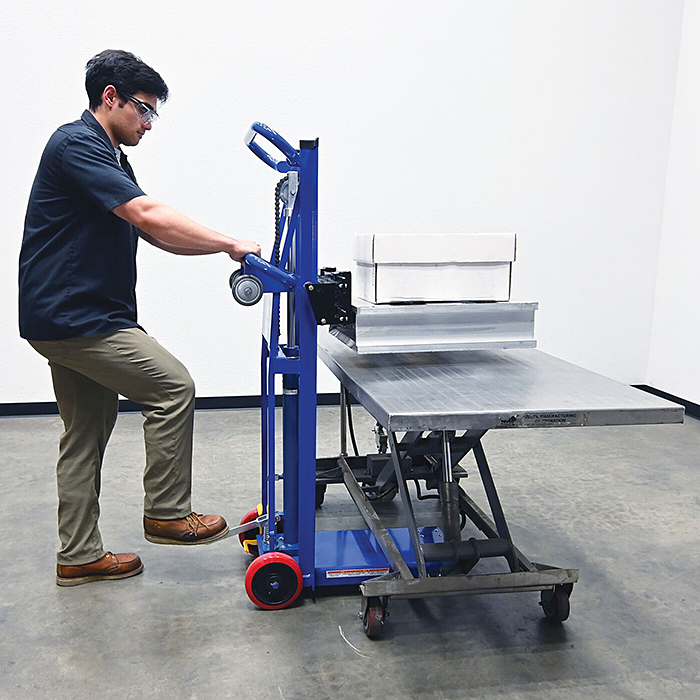

- Additional rollers on the handle for easy truck loading
- All steel construction with blue powder coat finish
- Overall Size: 23.5"W x 33.8"L x 65.625"H
- Weight: 196 LBS
Options - See Chart Below:

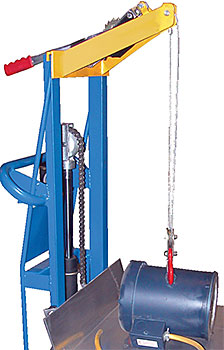

- Hand Winch With Hook - 400 LB Capacity - Model Hydra-H
