Vestil HYD-CB-10-DC Counterbalance Hefty-Lift

Vestil HYD-CB-10-DC Counter-Balanced Hefty Lift
Vestil HYD Attachments
Vestil HYD-CB-10-DC
Click to see More Photos
Back to List
$3,184.00
SKU: HYD-CB-10-DC



Scroll Down for More Info
Additional Info

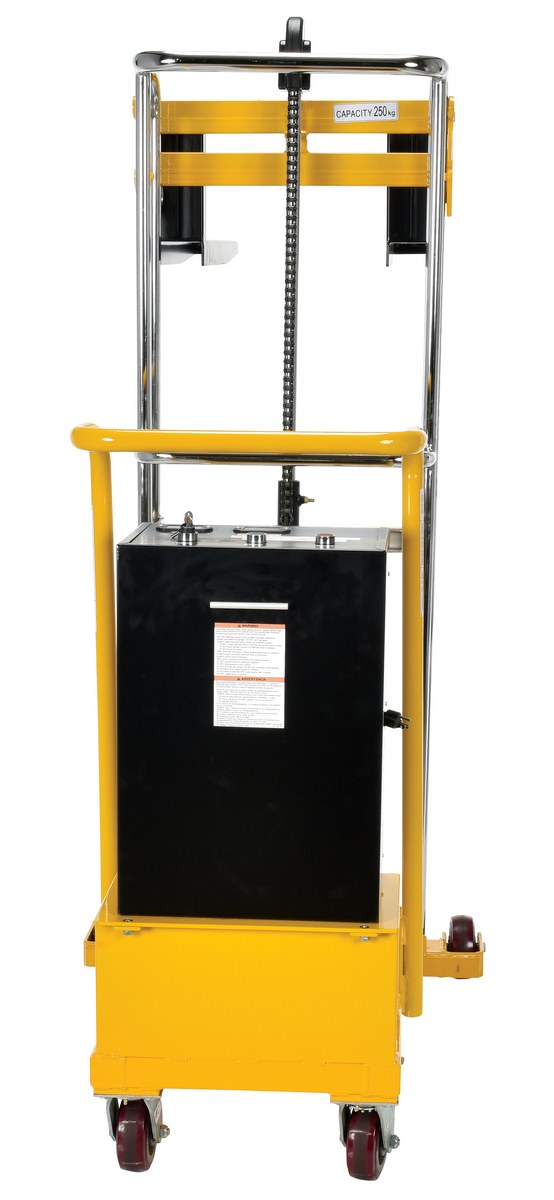

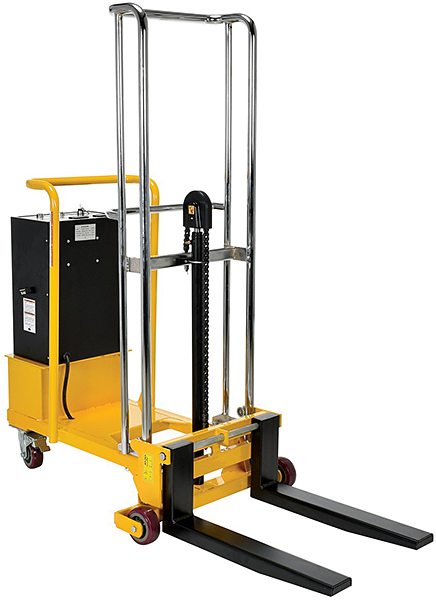

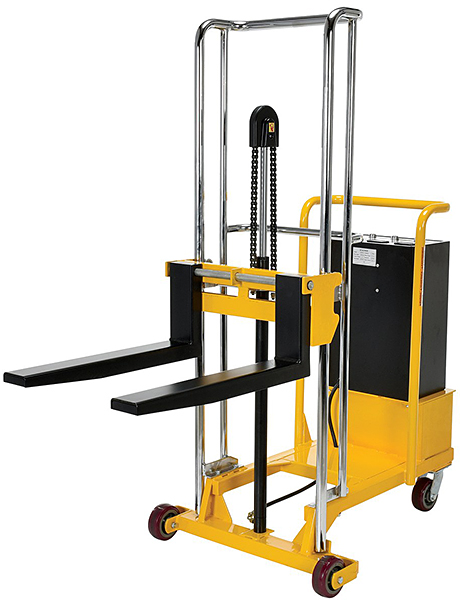

The Vestil HYD-CB-10-DC Counterbalance Hefti-Lift is a battery powered portable counter-balanced platform lift that provides a powerful solution for transporting, lifting, and positioning materials. There are no front support legs to get in the way which allows the operator to get the forks into closed bottom pallets and loads that are too wide for straddle legs. The DC powered Hefti-Lift has a 0.9 HP lift motor that is powered by (1) 12V battery (included). Charging is accomplished using the included 115V 6 amp battery charger. This versatile platform lift features a removable chrome platform allowing the unit to lift up to 550 LBS of material to a maximum height of 55½" using the platform or the 4½" W x 2½" L forks. The Vestil HYD-CB-10-DC Counter-Balanced Hefti-Lift rolls smoothly on two front rigid and two rear swivel poly-on-steel casters. All welded steel construction with chrome platform and uprights for years of service.



The Vestil HYD-CB-10-DC Counterbalance Hefti-Lift has an estimated lead time to leave the warehouse of 3 to 5 business days.



Specifications:

  • Maximum Capacity: 550 LBS
  • Powerful 0.9 HP Lift Motor
  • Includes 12V battery and 115V 6 amp battery charger
  • Removable 22⅛"W x 25¾"L chrome platform
  • Lowered height: 2¾" / Max. Raised height: 55½"
  • Each fork is 4½"W x 25¾"L x 2½"Thick
  • Overall fork dimensions are 22⅛"W x 25¾"L
  • All welded steel construction with chrome platform and uprights
  • Two front rigid & two rear swivel polyurethane casters
  • Weight: 506 LBS

Optional Attachments (see photos above and pricing below):

  • Single Spindle - Model HYDC-SPIN
  • Double Spindle - Model HYDC-DSPIN
  • V-Shape Fork - Model HYDC-VFRK
  • Roller Platform - Model HYDC-RP
  • Ball Transfer Platform - Model HYDC-BTP
  • Stainless Steel Platform - Model HYDC-SSP
  • V Block Platform - Model HYDC-VBLK
  • Rubber Roller - Model HYDC-RR
  • Fork Hook - Model HYDC-FRKHK







Vestil HYD-CB-10-DC Hefti-Lift:
SKUCapacity/Desc.WeightPriceQty
HYD-CB-10-DC550 LBS - Counterbalanced DC Powered Lift506 LBS $3,184.00
Attachments:
SKUCapacity/Desc.WeightPriceQty
HYDC-DSPINDouble Spindle18 LBS $91.00
HYDC-VFRKV-Shape Fork28 LBS $150.00
HYDC-RPRoller Platform44 LBS $366.00
HYDC-BTPBall Transfer Platform34 LBS $400.00
HYDC-SSPStainless Steel Platform22 LBS $241.00
HYDC-VBLKV Block27 LBS $152.00
HYDC-RRRubber Roller22 LBS $348.00
HYDC-FRKHKFork Hook15 LBS $176.00
