Vestil HBD-2-36 Hydraulic Box Dumper

Vestil HBD-2-36 Hydraulic Box Dumper
Vestil HBD-2-36
Click to see More Photos
Back to List
SKU: HBD-2-36


Scroll Down for More Info
Additional Info

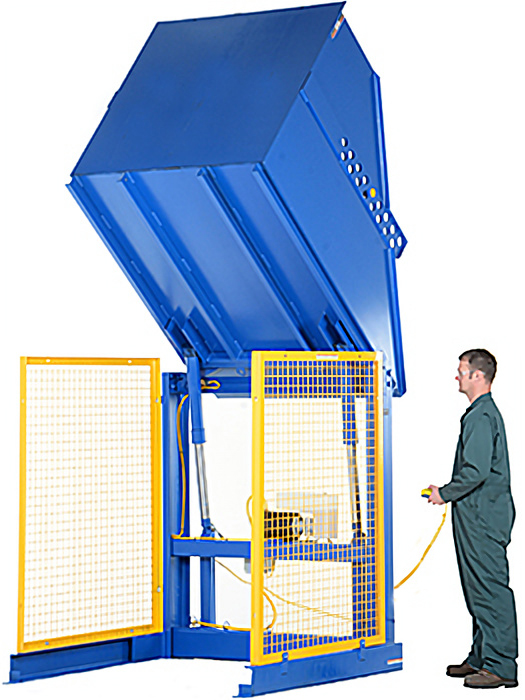

The Vestil HBD-2-36 Hydraulic Box Dumper allows for the controlled dumping of up to 2,000 LBS of material from boxes, crates, or totes. A ³⁄₈" lowered height allows for easy pallet truck loading and unloading. The maximum rotation is 135° yielding a 45 degree dump angle and the dumper may be stopped at any point during the cycle. The load retaining bar adjusts every 2" to accommodate a range of container heights. Tote dumper comes standard with an internal 2HP motor that operates on 460V/3PH power (other motor voltages available – see options below). A hand held control and protective mesh side screens also come standard. The Vestil HBD-2-36 hydraulic box dumper features all steel construction with a durable blue enamel finish for years of reliable service.

The standard duty cycle is a maximum of 15 starts per hour in a normal environment. A start is defined as anytime the operator pushes the "up" button. Jogging or bouncing of the chute is NOT recommended.


The Vestil HBD-2-36 box dumper is built to order with an estimated lead time to leave the warehouse of 10 to 12 weeks.


To ensure that the proper size is ordered please complete the Hydraulic Box Dumper Survey above and fax or email it to us.



  • Maximum Capacity: 2,000 LBS
  • Dump Height: 36"
  • Usable chute size is 52"W x 50"L and chute reach is 10" when fully rotated
  • Maximum rotation is 135° and dump angle is 45°
  • Level height 53½" | Rotated height is 111"
  • ³⁄₈" lowered height allows for easy loading with a pallet jack
  • Retaining bar adjusts from 18" to 36" in 2" increments to accommodate various load sizes
  • 460V/3PH 2 HP motor comes standard (other voltages available)
  • Hand held control on coil cord
  • Cast iron pump with integral valving
  • Hydraulic actuators have internal brass velocity fuse w/stainless steel spring for emergency lockup
  • Overall size is 69"W x 68½"L
  • Weight: 1641 LBS
  • Heavy duty weld steel construction meets A.W.S.



  • Voltage change to 115v/1ph, 208-230v/1ph, 208-230v/3ph (replaces standard 460v/3ph)- Models with prefix VCC (12V power option also available - please contact us for a quote)
  • Side guard extensions and gate with magnetic interlock switch on load end. Magnetic interlock switch prevents dump operation if the gate door is open - Model HBD-GATE-36




Vestil HBD-2-36 Box Dumper:
SKUCapacity/Desc.Dump HeightRetaining Bar Adj.WeightPriceQty
HBD-2-362000 LBS36"18" to 36"1641 LBS $5,907.00
VCC-115-1Voltage Change To 115v/1ph Power (replaces standard 460v/3ph)0 LBS $76.00
VCC-208/230-1Voltage Change To 208v-230v/1ph Power (replaces standard 460v/3ph)0 LBS $76.00
VCC-208/230-3Voltage Change To 208v-230v/3ph Power (replaces standard 460v/3ph)0 LBS $76.00
HBD-GATE-36Side Guard Extensions & Gate With Magnetic Interlock Switch On Load End540 LBS $2,403.00
