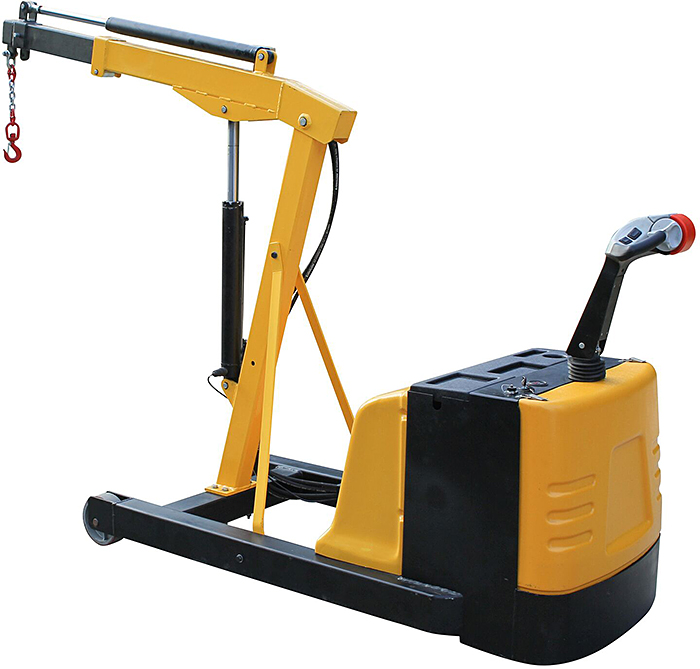

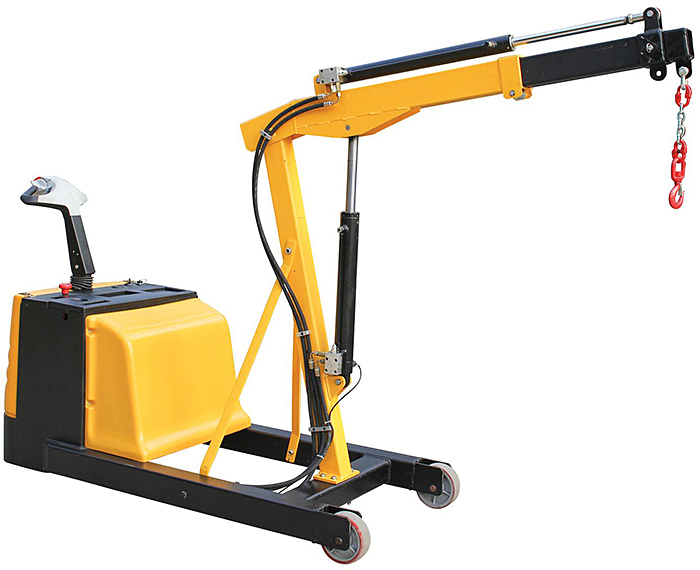

Vestil EPFC-CB-15 Counterbalance Mobile Floor Crane

Vestil EPFC-CB-15
Vestil EPFC-CB-15 Mobile Floor Crane
Optional Vestil EPFC-HC Hand Control On Coil Cord
Back to List
$8,077.00 - $8,805.00
SKU: EPFC-CB-15



Additional Info

Vestil EPFC-CB-15 Mobile Floor Crane is a powered drive and lift (power hoist & power in/out boom) crane with a counterbalance that eliminates the need for long front outriggers. Designed for getting in close to the load. Can lift and transport loads weighing up to 1,500 LBS when the booms is at 43½" and 400 lbs when the boom is extended to 94". This counterbalance electric floor crane features 24V DC drive and lift motors run on (2) 12v batteries for an estimated 3-4 hours of continuous operation and 8 hours of intermittent operation. Travel speed is 2.18 MPH when fully loaded. Ergonomic handle houses throttle with infinite adjustment of forward and reverse speeds, lift and lower controls, safety belly switch for emergency reverse function, and horn. The EPFC-CB-15 mobile floor crane comes standard with two 12V, 80 - 95/Ah lead acid deep cycle batteries, an integral battery charger, battery level gauge, and rigid hook with safety latch.



The Vestil EPFC-CB-15 Electric Floor Crane normally leaves the warehouse in 5 business days.



Features:

  • Counterbalance design eliminates the need for front outriggers allowing the operator to get close to the load.
  • Ergonomic handle features with easy to operate power drive & lift functions
  • Infinite adjustment of forward and reverse speeds
  • Safety enhancing emergency reverse belly switch
  • (2) 12V batteries, integral battery charger, & battery level gauge (AGM battery upgrade available - see options chart below)
  • Heavy duty rigid hook with safety latch
  • Electromagnetic disc brake with automatic dead-man feature
  • Poly-on-steel load and steer wheels
  • Optional remote hand on coil cord - see options chart below



Specifications:

  • Hook positions are at boom lengths: 44¼", 68¼", 92¼
  • Capacity: 1,500 LBS at 44¼" Hook Position, 800 LBS at 68¼", 400 LBS at 92¼" Hook Position
  • Hook Heights Measured From The Hook To The Ground: From 22" to 70" at 44¼" Boom Position (fully retracted) | From 12½" to 90" at 68¼" Boom Position | From 4" to 105" at 92¼" Boom Position (fully extended)
  • Lift Speed Loaded: ½” per second
  • Lower Speed Loaded: ¾” per second
  • Travel Speed Loaded: 2.18 mph
  • Retracted Size: 35"W x 110"L x 68"H
  • Drive Motor: DC 24V, 0.7KW / Lift Motor: DC 24V, 2KW
  • Batteries: (2) Lead Acid, 12V / 85-95AH
  • Weight: 1,700 LBS





Vestil EPFC-CB-15 Floor Crane:
SKUCapacity/Desc.WeightPriceQty
EPFC-CB-15Counterbalance Floor Crane1700 LBS $8,077.00
Options:
SKUCapacity/Desc.WeightPriceQty
EPFC-HCRemote Hand Control On Coil Cord5 LBS $177.00
AGM-UPG-2-12VAGM Battery Upgrade (replaces standard lead acid batteries)120 LBS $728.00

Customer Reviews

There are no customer reviews for this product. However, you can be the first person to add a review for this product.
