Vestil EHLTX Low Profile Lift Tables

Vestil EHLTX Low Profile Lift Table
Vestil EHLTX
Vestil ARX Approach Ramp
Vestil FC-2 Foot Control
Optional Accordion Skirting - Call For Info
Vestil ROTATE Carousel
Vestil RRC-2PB Remote Control
VESTIL SCALE - Optional Integrated Scale
Vestil PROGRAM
Back to List
$4,320.00 - $7,239.00
SKU: EHLTX-2-39

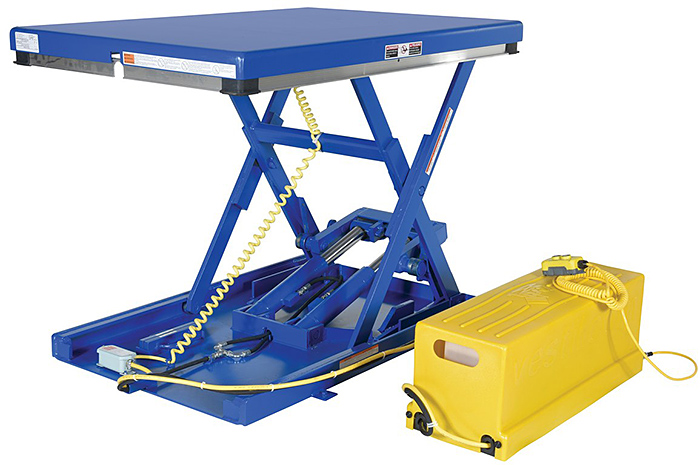

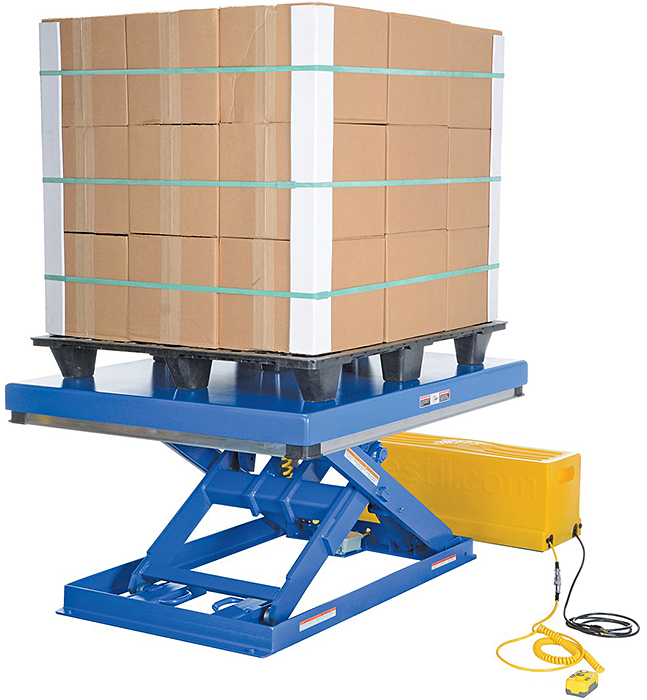

Vestil EHLTX Low Profile Lift Tables, models EHLTX-1-39, EHLTX-2-39, EHLTX-3-39, & EHLTX-3.5-39 feature a lowered height of only 3¼" or 4¼" depending on the model. These versatile scissor lift tables allow a single operator to easily load and unload skids and pallets using a pallet truck and optional approach ramp eliminating the need to pit mount the table. A remote power unit comes standard with a plastic dust cover to protect the hydraulic motor and components. Standard safety features are electric perimeter pinch point guards, emergency stop velocity fuse in cylinders, fused 24V AC hand held control, and maintenance supports. Vestil EHLTX low profile lift tables feature all steel construction for years of dependable service.



Vestil EHLTX low profile lift tables are built to order with an estimated lead time to leave the warehouse of 25 business days.



Specifications:

  • Lowered platform height is 3¼" or 4½" depending on the model
  • Raised platform height is 39"
  • 460V/3 phase (2.8 amps) 60 Hz totally enclosed remote power unit (other voltages available)
  • Remote power unit measures 32-1/2" x 12" 12" and comes with 8' cords & hoses
  • Fused 24V hand held pendant control on 8 foot coil cord
  • Internal Velocity fuse in cylinders
  • Electric perimeter pinch point guard for OSHA compliance
  • Maintenance supports
  • Pressure plated pump/manifold system



Options:

  • Voltage change to 115v/1ph (24 amps), 208-230v/1ph (12 amps), 208-230v/3ph (5.6 amps), or 12v DC. REPLACES standard 460v/3ph (2.8 amps) motor. Please specify voltage in order notes when checking out. Model VCC
  • Approach ramps for easy loading and unloading with pallet truck. Model ARX
  • Foot control - replaces hand control. Model FC-2
  • Wireless remote control. Model RRC-2
  • Integrated scale features include LCD readout, zero weight & tare weight, lb or kg, 5,000 lb. capacity, installs & can be removed in seconds. Model SCALE
  • Programmable Height Control features fully integrated controller with 4 preset heights for repeat repositioning applications, 15 button keypad with LCD Display. Model PROGRAM
  • 45" diameter built-in manual carousel. Position pallets, boxes, or crates without ever stepping around table. 4,000 lb. capacity. Requires a minimum paltform size of 48" x 48".  Model ROTATE
  • Accordion skirting (contact us for pricing).





Vestil EHLTX- Low Profile Lift Tables:
SKUCapacity/Desc.Platform WidthsPlatform LengthsLowered|Raised Ht.Lift TimeWeightPriceQty
EHLTX-1-391000 LBS36"-60"53"-60"3-1/4" | 39"14 Sec.915 LBS ($4,320.00)
EHLTX-2-392000 LBS36"-60"53"-60"3-1/4" | 39"14 Sec.975 LBS ($4,590.00)
EHLTX-3-393000 LBS36"-60"53"-60"4-1/2" | 39"22 Sec.1092 LBS ($5,267.00)
EHLTX-3.5-393500 LBS36"-60"53"-60"4-1/2" | 39"22 Secs1869 LBS ($5,535.00)
Options:
SKUCapacity/Desc.WeightPriceQty
VCCVoltage Change (replaces standard 460v/3PH) - See Options0 LBS ($84.00)
ARX-3639-3Approach Ramp 36"W x 39"L x 3"H (use with EHLTX-1-39 & EHLTX-2-39)150 LBS ($407.00)
ARX-3654-4Approach Ramp 36"W x 51"L x 4¼"H (use with EHLTX-3-39 & EHLTX3.5-39) 200 LBS ($478.00)
FC-2Foot Control (replaces 2 button hand control)5 LBS ($150.00)
RRC-2PBWireless Remote Control1 LBS ($1,017.00)
SCALEIntegrated Scale286 LBS ($1,704.00)
PROGRAMProgrammable Height Control0 LBS ($1,664.00)
ROTATEBuilt-In Manual Carousel - 45" Diameter0 LBS ($1,021.00)
