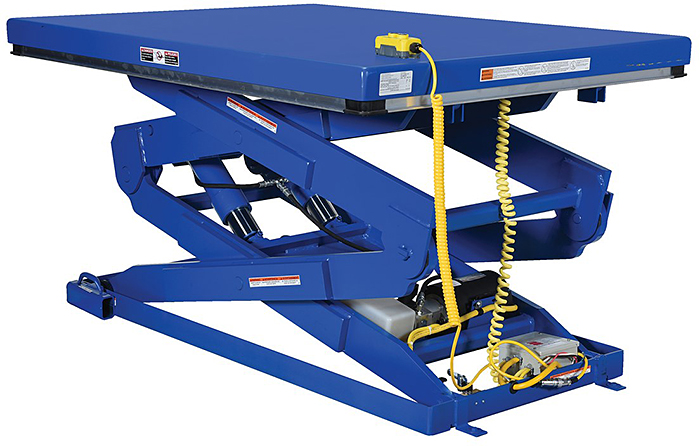

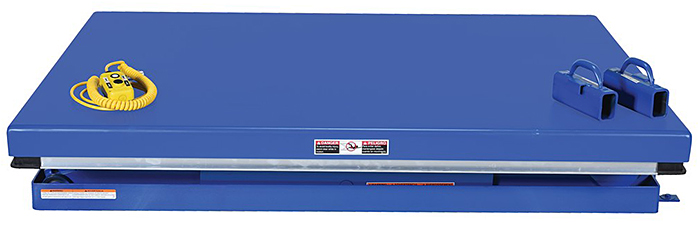

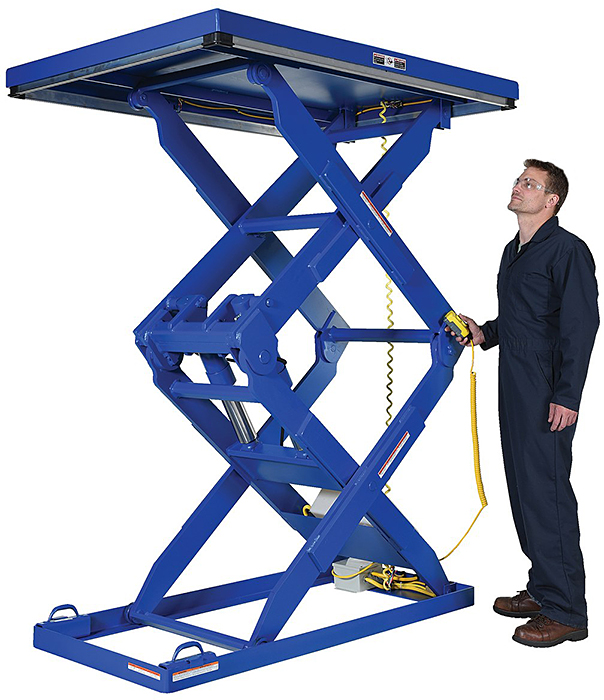

Vestil EHLTD Double Scissor Lift Tables

Vestil EHLTD Double Scissor Lift Table
Vestil EHLTD Lift Table
Vestil EHLTD
Back to List
$4,744.00 - $9,718.00
SKU: EHLTD-4-70



Additional Info

Vestil EHLTD Double Scissor Lift Tables feature lift heights of 70" or 84" depending on the model. These full featured scissor lift tables are ideal for all types of manufacturing and warehouse lifting applications where extra lift height is needed. Units are electric hydraulic powered and come standard with a 2HP 460V / 3 phase 60HZ totally enclosed motor, other voltages available - see options below. Vestil EHLTD lift tables feature a 24V AC push-button hand control, maintenance prop, and upper travel limit switch to stop table at maximum height reducing motor wear. All steel construction with durable blue enamel finish.

Safety features include: electric toe guard to protect pinch points during lowering of the table, brass safety velocity fuse to maintain platform height regardless of hydraulic pressure, and 3000 psi hydraulic component rating.



Vestil EHLTD Double Scissor Lift Tables are built to order with an estimated lead time to ship of 25 business days.



Specifications:

  • 24V hand control (foot control optional)
  • All welded steel construction meets AWS standards
  • Pinch Point Guard
  • Heavy duty deep section double scissor legs
  • Adjustable upward travel limit switch
  • Brass safety velocity fuse in hydraulic actuator prevents sudden drops
  • 3000 PSI component rating for swaged hoses and fittings
  • 2 HP 460 Volt 3 phase motor delivers best torque with minimal amperage draw (other voltages available)
  • 24V fused control circuit
  • Long life bearings (pins and bearings are replaceable)



 Options:

  • Voltage change to 115v/1ph, 208-230v/1ph, or 208-230v/3ph (replaces standard 460v/3ph) - Models with prefix VCC
  • Foot control - replaces hand control - Model FC-2
  • Integrated scale features include LCD readout, zero weight & tare weight, lb or kg, 5,000 lb. capacity, installs & removes in seconds. Adds 4.5" to platform height. Not designed to be driven over if pit mounted - please contact us if you require a scale that can be driven over. Available on 36"x36", 48"x48" & 48"x60" deck sizes. Model EHLTD-SCALE
  • Programmable Height Control features fully integrated controller with 4 preset heights for repeat repositioning applications. Functions up to 70" lift height & 15 button keypad with LCD display. Model EHLTD-70-PROGRAM
  • Built-in manual carousel with 45" diameter. Position pallets, boxes or crates without ever stepping around the table. De-rates table capacity by 300 LBS and has a 4,000 LB max. capacity. Adds 1" to service range. Available on tables that have at least a 48"x48" deck size. Model EHLTD-ROTATE
  • Accordion Skirting - Please contact us for pricing



Please specify platform size in order notes when ordering: Width may be 34" to 48" and Length may be 48" to 72". Platform sized selected does not affect prices shown in table below.







Vestil EHLTD Double Scissor Lift Tables:
SKUCapacity/Desc.Platform WidthsPlatform LengthsLowered/ Raised Ht.Lift TimeWeightPriceQty
EHLTD-1-701000 LBS34" to 48"48" to 72"10"/70"11 sec1157 LBS $4,744.00
EHLTD-1-841000 LBS34" to 48"64" to 88"12"/84"16 sec1576 LBS $5,622.00
EHLTD-2-702000 LBS34" to 48"48" to 72"10"/70"16 sec1250 LBS $5,289.00
EHLTD-2-842000 LBS34" to 48"64" to 88"12"/84"32 sec1669 LBS $6,051.00
EHLTD-3-703000 LBS34" to 48"48" to 72"10"/70"22 sec1343 LBS $5,641.00
EHLTD-3-843000 LBS34" to 48"64" to 88"12"/84"48 sec1762 LBS $6,214.00
EHLTD-4-704000 LBS34" to 48"48" to 72"10"/70"32 sec1436 LBS $5,999.00
EHLTD-4-844000 LBS34" to 48"64" to 88"12"/84"48 sec1855 LBS $6,721.00
EHLTD-5-705000 LBS34" to 48"48" to 72"10"/70"34 sec1529 LBS $6,779.00
EHLTD-5-845000 LBS34" to 48"64" to 88"12"/84"48 sec1948 LBS $8,120.00
Options:
SKUCapacity/Desc.WeightPriceQty
VCC-115-1Voltage Change To 115v/1ph Power (replaces standard 460v/3ph)0 LBS $76.00
VCC-208/230-1Voltage Change To 208v-230v/1ph Power (replaces standard 460v/3ph)0 LBS $76.00
VCC-208/230-3Voltage Change To 208v-230v/3ph Power (replaces standard 460v/3ph)0 LBS $76.00
FC-2Foot Control (replaces 2 button hand control)5 LBS $150.00
EHLTD-SCALEIntegrated Scale - adds 4.5" to the height of the lift. Available on 36"x36", 48"x295 LBS $1,598.00
EHLTD-70-PROGRAMProgrammable Height Control - up to 70" lift height295 LBS $1,493.00
EHLTD-ROTATEBuilt-In 45" Dia. Manual Carousel350 LBS $958.00
