Vestil EHLT-WS Lift Tables

Vestil EHLT-WS-4048-1.5-36
Vestil EHLT-WS-2448-1.5-36 Work Station Lift Tables
Vestil EHLT-WS
Click to see More Photos
Back to List
SKU: EHLT-WS-4048-1.5-36


Scroll Down for More Info

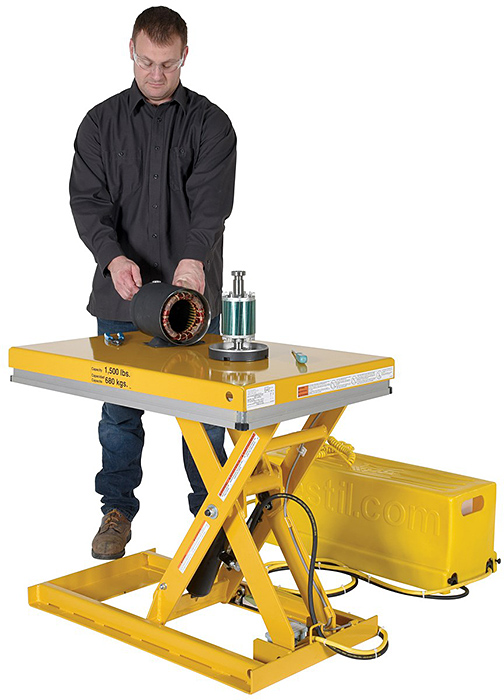

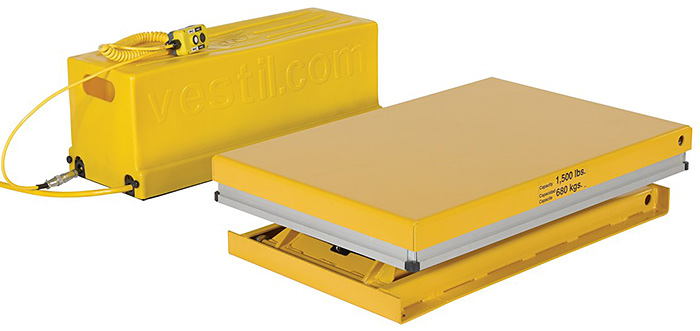

Vestil EHLT-WS Lift Tables with external power unit, models EHLT-WS-2436-1.5-29, EHLT-WS-2448-1.5-36, EHLT-WS-3248-1.5-36, & EHLT-WS-4048-1.5-36 raise products to an ergonomic working height for maximum user productivity and comfort. Lift tables are designed to maximize safety and minimize the operating space needed. Great for manufacturing facilities and warehouses. Comes standard with enclosed external power unit, hand pendent control, and 460V 3PH motor (other voltages available). Vestil EHLT-WS lift tables feature all steel construction of years of reliable service.


Vestil EHLT-WS Lifts Tables with external power unit are built to order with a normal lead time to leave the warehouse of 3 to 4 weeks.



  • Voltage change to 115v/1ph, 208-230v/1ph, or 208-230v/3ph (replaces standard 460v/3ph) - Models with prefix VCC
  • Foot control - replaces hand control. Model FC-2



Vestil EHLT-WS Lift Tables:
SKUCapacity/Desc.Platform WxLLowered | Raised HeightLift Time WeightPriceQty
EHLT-WS-2436-1.5-311500 LBS24"x36"8-5/8" | 31"13 sec.385 LBS $2,218.00
EHLT-WS-2448-1.5-361500 LBS 24"x48"7" | 36"13 sec.415 LBS $2,343.00
EHLT-WS-3248-1.5-361500 LBS 32"x48"7" | 36"13 sec.430 LBS $2,382.00
EHLT-WS-4048-1.5-361500 LBS 40"x48"7" | 36"13 sec.457 LBS $2,447.00
VCC-115-1Voltage Change To 115v/1ph Power (replaces standard 460v/3ph)0 LBS $76.00
VCC-208/230-1Voltage Change To 208v-230v/1ph Power (replaces standard 460v/3ph)0 LBS $76.00
VCC-208/230-3Voltage Change To 208v-230v/3ph Power (replaces standard 460v/3ph)0 LBS $76.00
FC-2Foot Control (replaces 2 button hand control)5 LBS $150.00
