Vestil COL Cross-Over Ladders

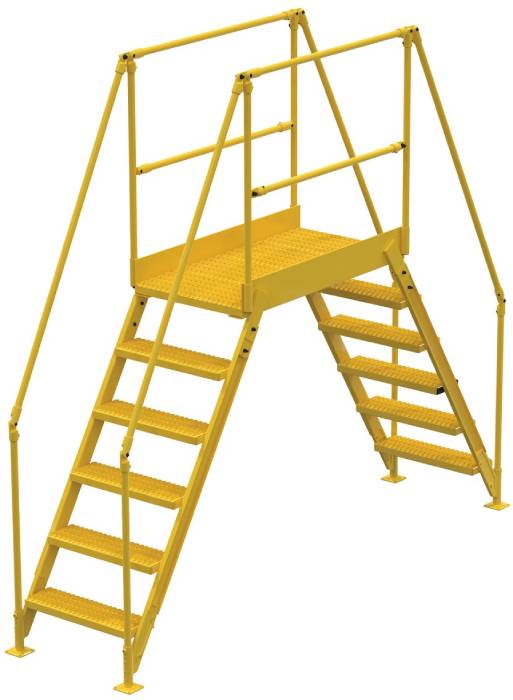

Vestil COL-6-56-44 Crossover Ladder
Vestil COL-6-56-14 Crossover Ladder
Vestil COL Bridge Ladder
Back to List
$943.00 - $1,476.00
SKU: COL-6-56-33



Vestil COL Crossover Ladders are ideal for mounting wherever permanent access is needed at crossover points. Bridge ladders enable workers to safely pass over machinery or pipes, instead of having to go around, thus saving time and effort. Crossover ladders are available in a wide variety of sizes, with 3, 4, 5 or 6 steps, and with platform lengths of 14", 23", 33" or 44". Steps are 23½" wide and 7" deep with a step height of 10" and a 58° angle. Vestil COL bridge ladders are made of welded steel with a yellow powder coat finish for high visibility. Crossover ladders must be anchored to the floor.



Specifications:

  • The upper platform features removable two sided 42" high handrail with 21" mid-rail and fixed 4" toeboards to prevent objects from rolling off
  • Serrated steps for extra grip and safety are 23½" wide and 7" deep with a step height of 10"
  • The angle of the steps is 58°
  • The overall ladder width is 29¼"
  • Ground legs include floor mounting pads
  • All welded steel construction but can be knocked-down for storage and shipping
  • Uniform capacity is 500 pounds
  • Meets OSHA 1910.25 and ANSI A14.7
  • Powder coat yellow finish







Click on thumbnail photo of drawing above to enlarge. Letters in drawing (A, B, C, D, E, F) correspond to letters in the chart below where measurements for the drawing are given.

Vestil Crossover Ladders:
SKUCapacity/Desc.A / BC / DE / FWeightPriceQty
COL-3-26-143 Steps28-1/4" / 14-1/8"54-1/2" / 72-7/8"30" / 24"264 LBS $943.00
COL-3-26-233 Steps28-1/4" / 26-1/8"66-1/2" / 72-7/8"30" / 36"282 LBS $999.00
COL-3-26-333 Steps 28-1/4" / 38-1/8"78-1/2" / 72-7/8"30" / 48"315 LBS $1,062.00
COL-3-26-443 Steps 28-1/4" / 50-1/8"90-1/2" / 73"30" / 60"349 LBS $1,117.00
COL-4-36-144 Steps38-1/4" / 14-1/8"67" / 82-7/8"40" / 24"282 LBS $1,068.00
COL-4-36-234 Steps 38-1/4" / 26-1/8"79" / 82-7/8"40" / 36"317 LBS $1,123.00
COL-4-36-334 Steps 38-1/4" / 38-1/8"91" / 82-7/8"40" / 48"323 LBS $1,187.00
COL-4-36-444 Steps38-1/4" / 50-1/8"103" / 83"40" / 60"378 LBS $1,239.00
COL-5-46-145 Steps48-1/4" / 14-1/8"79-1/2" / 92-7/8"50" / 24"306 LBS $1,182.00
COL-5-46-235 Steps48-1/4" / 26-1/5"91-1/2" / 92-7/8"50" / 36"346 LBS $1,238.00
COL-5-46-335 Steps48-1/4" / 38-1/8"103-1/2" / 92-7/8"50" / 48"349 LBS $1,300.00
COL-5-46-445 Steps48-1/4" / 50-1/8"115-1/2" / 93"50" / 60"404 LBS $1,352.00
COL-6-56-146 Steps58-1/4" / 14-1/8"92 / 102-7/8"60" / 24"348 LBS $1,306.00
COL-6-56-236 Steps58-1/4" / 26-1/8"104" / 102-7/8"60" / 36"398 LBS $1,362.00
COL-6-56-336 Steps58-1/4" / 38-1/8"116" / 102-7/8"60" / 48"401 LBS $1,423.00
COL-6-56-446 Steps58-1/4" / 50-1/8"128" / 103"60" / 60"460 LBS $1,476.00
