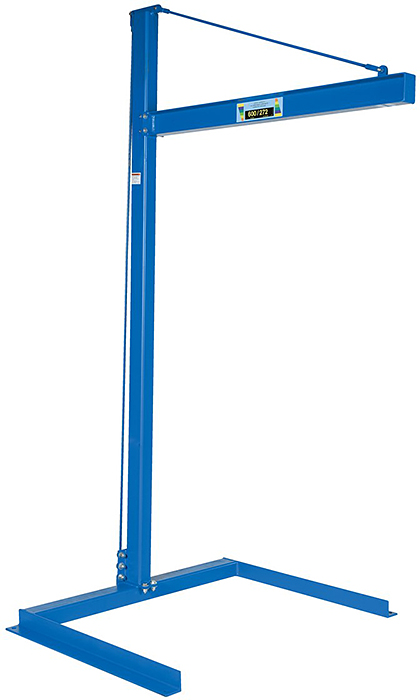

The Vestil CJIB-20 Mini Crane is designed for use in work cells and work areas. With an outrigger length of 39¾", and a 47¾" straddle width, it can be mounted to the floor underneath a work table, facilitating the transfer of objects from carts to the work bench. Height under beam on this mini jib crane is 78½". The I-Beam span is 54", with a 4" flange, and 6" height. This compact jib crane has a maximum capacity of 2,000 LBS and is made from steel with a painted finish for durability and long life.
The Vestil CJIB-20 Mini Jib is built to order and has an estimated lead time of 10 business days to leave the warehouse.
- Maximum capacity: 2,000 LBS
- Under I-Beam to ground: 78½"
- I-Beam usable length: 54"
- I-Beam flange: 4"
- I-Beam height: 6"
- Straddle width: 47¾" I.D.
- Outrigger length: 39¾"
- (4) 3/4" diameter mounting holes (hardware not included)
- Steel construction with a blue powder coating
- Weight: 512 LBS
Hoist and Trolley sold separately. Click link to see our selection of Hoists and Trolleys
Product should be inspected frequently to insure safe operation. Testing and inspection of the unit is the responsibility of the end user after final assembly has been completed. For further details see ASME B30.17.
