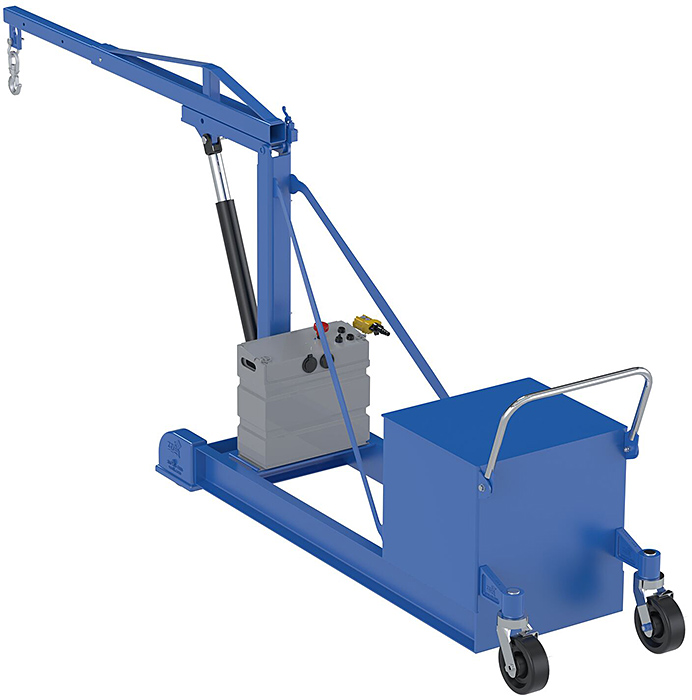

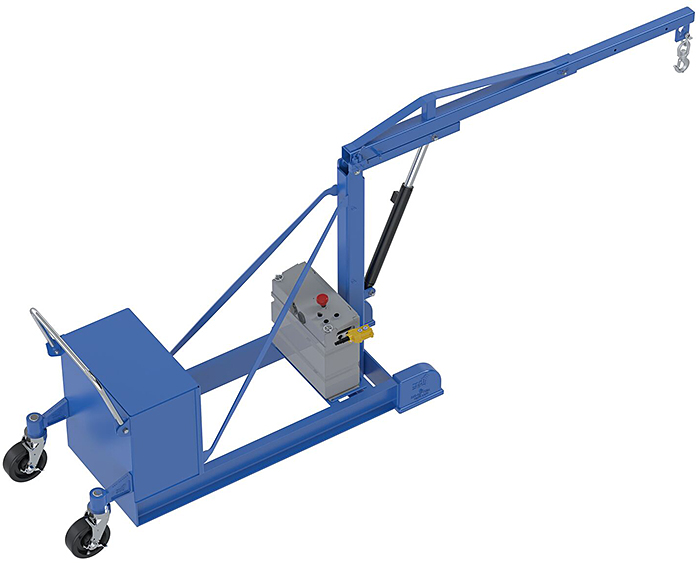

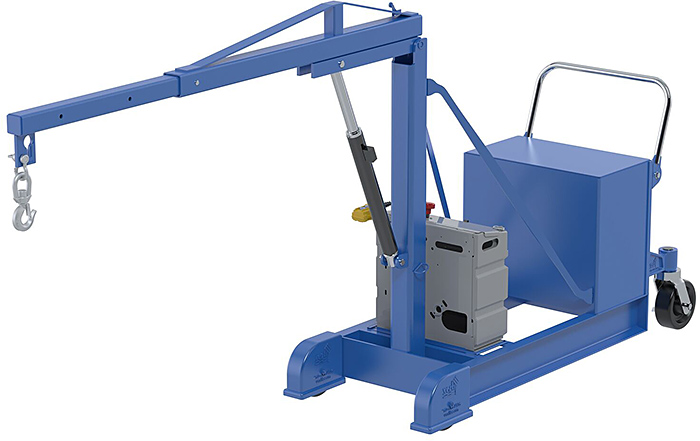

The Vestil CBFC-500-DC Counterbalance Floor Crane features an adjustable boom that raises and extends, allowing it to lift a variety of load types weighing up to 500 LBS. This versatile hydraulic floor crane comes with a counter-balance which eliminates the need for front legs, making the crane more maneuverable and allowing it to access tight work spaces. The boom is raised at the press of a button using DC power and also telescopes in 12” increments using a quick release pin for a longer reach. Floor crane rolls smoothly on (2) front 8” rigid glass filled nylon casters & (2) rear 6” swivel phenolic casters. The Vestil CBFC-500-DC floor crane is all welded steel construction with durable blue enamel finish for a long service life.
The Vestil CBFC-500-DC Counterbalance Crane is built to order with an estimated lead time to leave the warehouse of 10 to 12 weeks.
Specifications:
- Capacity: 500 LBS @ 39¼", 400 LBS @ 51¼", 300 LBS @ 63¼"
- Vertical hook height is adjustable from 5" to 90"
- DC powered lift
- Boom telescopes in 12" increments with hook points At: 39¼", 51¼",63¼"
- (2) front 8” rigid glass filled nylon casters & (2) rear 6” swivel phenolic casters
- Overall Size: 29" x 135⅛" x 102"
- Weight: 1,277 LBS
Options:
- Power Traction Drive System - Allows a single operator to safely transport products at a maximum speed of 2.5 mph. Includes combination throttle/direction controller, auto-reverse emergency belly switch and (2) 12V batteries. Model CBFC-PTDS-E
