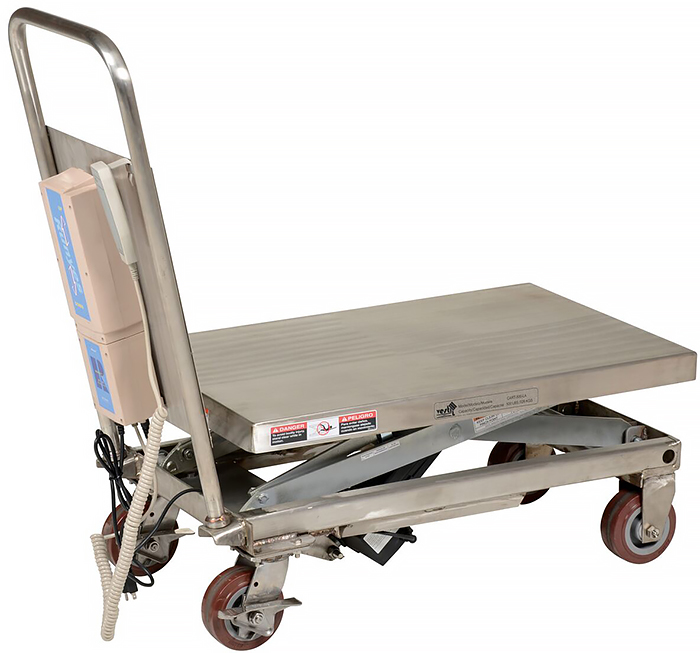

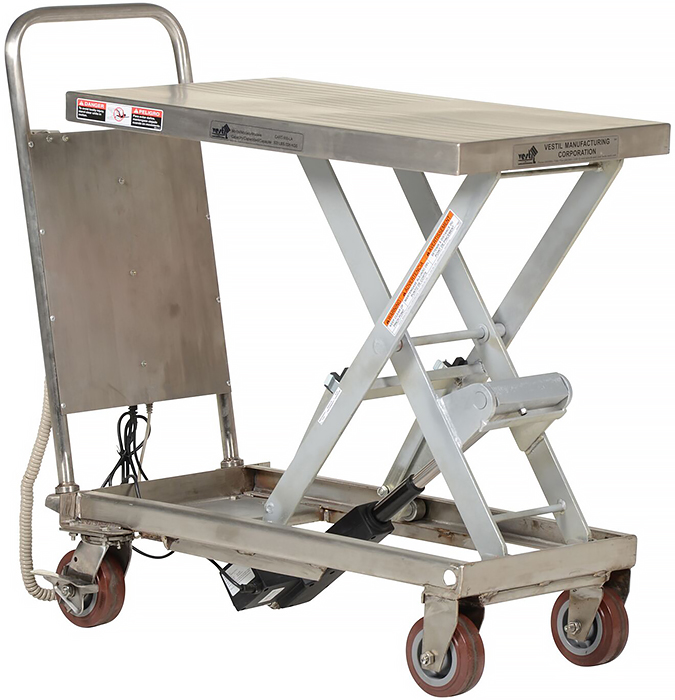

The Vestil CART-500-LA-PSS linear actuated lift cart features partial stainless steel construction for use in clean and washdown environments. The platform, handle, base frame, caster brackets, and hardware are stainless steel. The scissor legs are zinc-plated. Battery pack, charger, and hand control are plastic. The platform is raised and lowered with an electric linear actuator for precise positioning. Linear actuator prevents the platform from drifting down - a common problem with hydraulic carts. The platform size is 19-1/2”W x 32”L and has a maximum raised height of 33”. Hand pendant control on 6' coil cord. An internal safety velocity fuse in the cylinder prevents platform from falling in the event of a hydraulic failure. The Vestil CART-500-LA linear actuated lift cart rolls smoothly on two rigid and two swivel with brake poly-on-steel casters.
The Vestil CART-500-LA linear actuated lift cart has an estimated lead time to leave the warehouse of 3 business days
Specifications:
- Platform, handle, base frame, caster brackets, & hardware are stainless steel | Scissor legs are zinc coated steel | Battery pack, charger, & hand control are plastic
- Electric linear actuator provides precise positioning and prevents platform drift down
- Manual push / 12V DC powered lift
- 500 LB capacity
- 15" lowered height / 33" maximum raised height
- Platform Size: 19-1/2"W x 32"L
- Velocity fuse in cylinder prevents platform drop in case of hydraulic failure
- Hand pendant control on 6' coil cord
- Battery pack and battery charger
- 4" diameter poly on steel casters, (2) front rigid and (2) rear swivel with brakes
- Overall Size: 44.5"W x 53.5"L x 42"H
- Weight: 185 LBS
