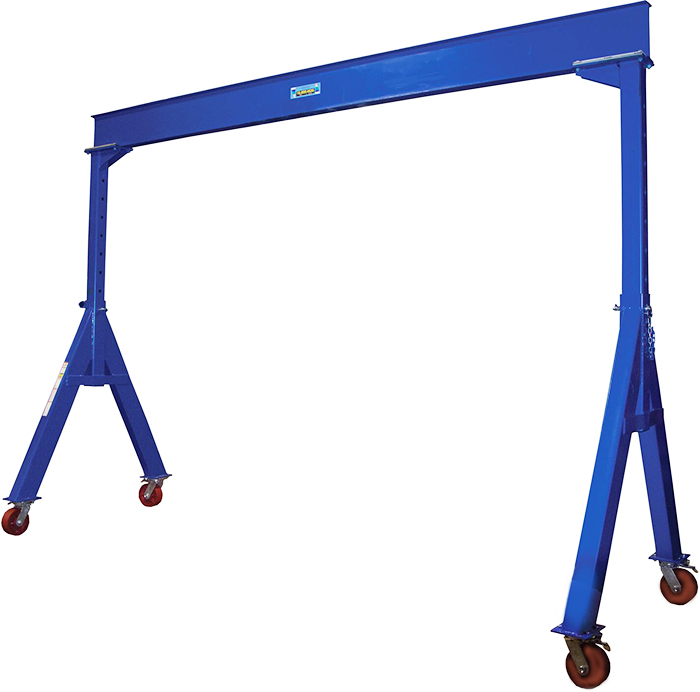

Vestil AHS-10-15-10 Steel Gantry Crane

Vestil AHS-10-15-10 Steel Gantry Crane
Vestil FES-KIT Festoon System
Vestil AHS-KIT Come Alongs
Click to see More Photos
Back to List
$4,915.00
SKU: AHS-10-15-10



Scroll Down for More Info
Additional Info

The Vestil AHS-10-15-10 Steel Gantry Crane is a 10,000 LB capacity crane built to handle an array of overhead lifting tasks. This portable gantry crane provides an economical and more flexible alternative to stationary cranes. The I-Beam height is adjustable in 6” increments and may be adjusted using a forklift or optional come alongs. The distance between the uprights is customizable by loosening the locking plate bolts, moving the uprights, and then re-tightening the bolts. The oversized 8" diameter 4 position locking swivel casters on this industrial gantry crane allow the user to lock the casters at 0°, 90°, 180° and 270° for easy movement of the crane. All steel construction with durable enamel finish for a long service life. The Vestil AHS-10-15-10 Steel Gantry Crane is not designed to be moved while loaded.



The AHS-10-15-10 Steel Gantry Crane has an estimated lead time to leave the warehouse of 40 to 45 business days.



Specifications:

  • Capacity:10,000 LBS
  • I-Beam Length: 15'
  • Under I-Beam Usable Height: 6' to 10'
  • Height is adjustable in 6" increments
  • W Type I-Beam with 4" flange width
  • Distance between the uprights is adjustable
  • Usable distance between uprights is overall beam length minus 11"
  • Usable trolley travel length is overall beam length minus 30"
  • Base Width: 64-1/2"
  • 8" four-position swivel position locking steel casters (lock at 0°, 90°, 180°, 270°)
  • All steel construction



Options:

  • Optional Come Alongs for easy one-person height adjustment (includes 2 racheting come alongs). Not for lifting - Model AHS-KIT
  • Festoon System -115V AC - Model AHS-FES-KIT

Hoist and Trolley sold separately. Click link to see our selection of Hoists and Trolleys







Product should be inspected frequently to ensure safe operation. Testing and inspection of the unit is the responsibility of the end user after final assembly has been completed. For further details see ASME B30.17.

Vestil Steel Gantry Crane - AHS-10-15-10:
SKUCapacity/Desc.I-Beam LengthUnder I-Beam Usable HeightWeightPriceQty
AHS-10-15-1010000 LBS15'6'6" to 10'839 LBS $4,915.00
Options:
SKUCapacity/Desc.WeightPriceQty
FES-KITFestoon System 115V AC16 LBS $141.00
AHS-KITCome Alongs For One-person Height Adjustment - Set of 214 LBS $118.00
