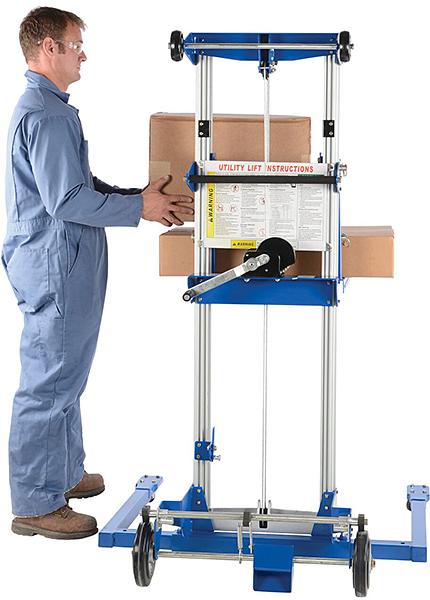

Vestil A-LIFT-S-HP Hand Winch Lift Truck With Straddle Legs is a compact portable material lift that features adjustable straddle legs allowing the operator to lift open and closed bottom pallets and containers. 4" wide by 1¾" thick steel forks measure 22" long and can be inverted to provide two different lift heights. Straddle legs are adjustable in width from 21½" I.D. to 36" I.D. and 29" O.D. to 44" O.D. Raise and lower function is completed using a hand-crank winch that features a reversible handle and a hold-down device for securing the carriage during transport. Forks are raised 1" per complete hand crank rotation. The A-LIFT-S-HP rolls smoothly on two 8" non-marking rear wheels and two 2" front swivel casters. Made of steel and aluminum for years of reliable service.
Specifications:
- 400 LB Capacity
- Forks can be inverted to provide two different lift heights
- Forks in regular / down position: Lowered Height is 1¼" / Raised Height is 98⁷⁄₁₆"

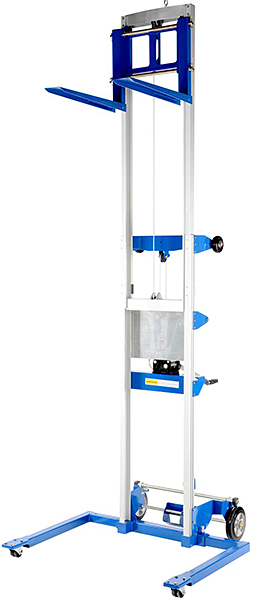

- Forks in inverted / up position: Lowered Height is 21¼" / Raised Height is 120"

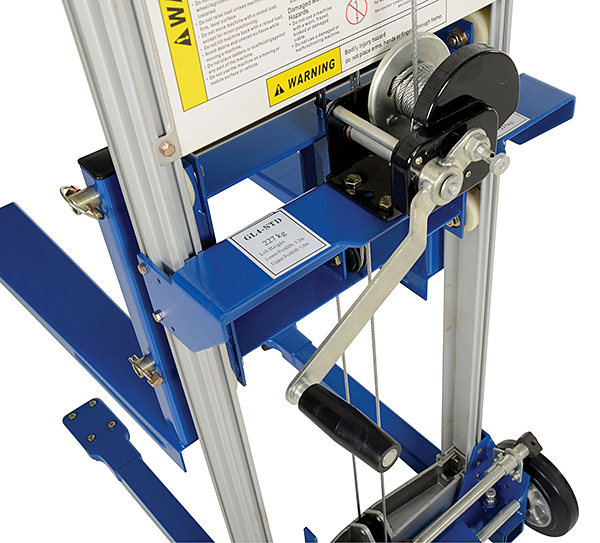

- Lift function operated via a hand-crank winch (lifts forks 1" per crank)
- Straddle Legs adjust in width from 21¼" I.D. to 36" I.D. (29" O.D. to 44" O.D.)
- Individual Fork Size: 4" W x 22" L x 1¾" Thick
- Fixed steel forks (do not adjust horizontally)
- Caster brakes hold lift truck in place while loading and unloading

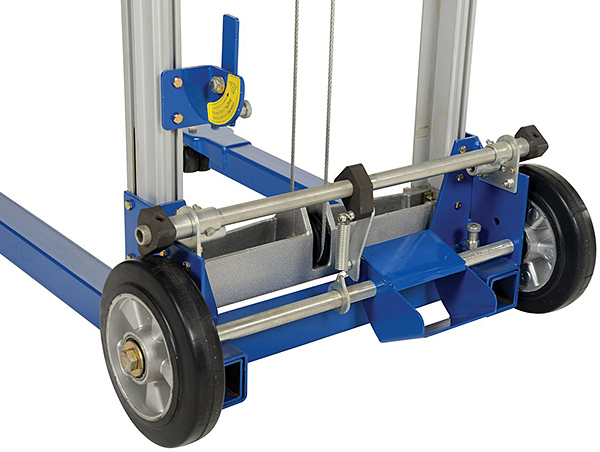

- (2) 8" non-marking rear wheels and (2) 2" front swivel wheels
- Overall Size: 43⁷⁄₈"W x 42½"L x 67⁵⁄₁₆"H
- Weight: 219 LBS
Options:
- Deck platform - fits over forks (Model A-LIFT-DK).
- 10" pneumatic rear wheels (Model A-LIFT-PN).
- Aluminum Retractable 18"W x 68"H Ladder with 11" rung spacing (Model A-LIFT-LAD).
