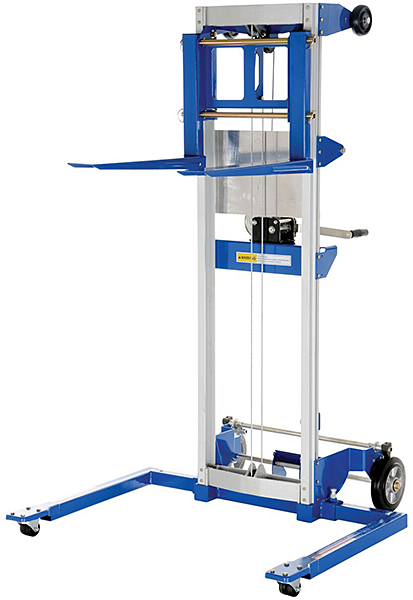

Vestil A-LIFT-S Hand Winch Lift Truck

Vestil A-LIFT-S Hand Winch Lift Truck

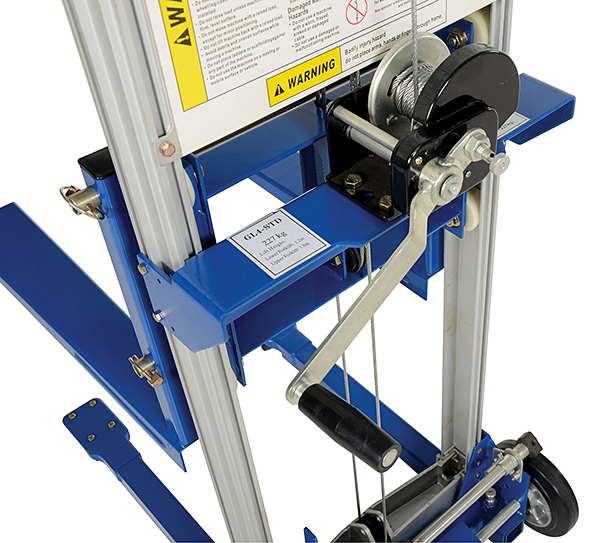

Hand Winch Close Up

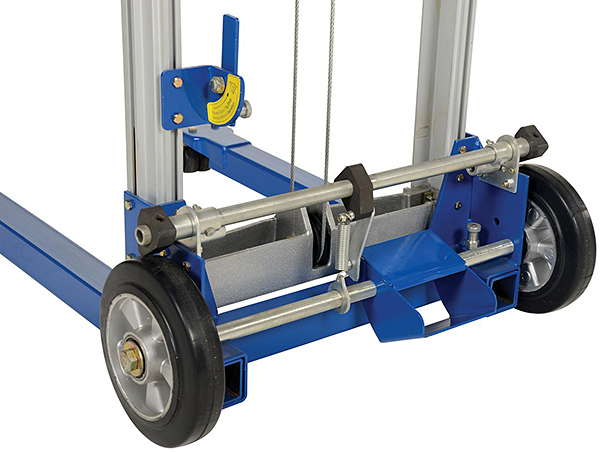

A-LIFT-S Wheels Close Up
Vestil A-LIFT-DK Deck Platform
Vestil A-LIFT-LAD Retractable Ladder
Vestil A-LIFT-S
Click to see More Photos
Back to List
Scroll Down for More Info
Additional Info

Vestil A-LIFT-S Hand Winch Lift Truck With Straddle Legs is a compact portable material lift that features adjustable straddle legs allowing the operator to lift open and closed bottom pallets and containers. 4" wide by 1¾" thick steel forks measure 22" long and can be inverted to provide two different lift heights. Straddle legs are adjustable in width from 21½" I.D. to 36" I.D. and 29" O.D. to 44" O.D. Raise and lower function is completed using a hand-crank winch that features a reversible handle and a hold-down device for securing the carriage during transport. Forks are raised 1" per complete hand crank rotation. The A-LIFT-S rolls smoothly on two 8" non-marking rear wheels and two 2" front swivel casters. Made of steel and aluminum for years of reliable service.



  • 500 LB Capacity
  • Forks can be inverted to provide two different lift heights
  • Forks in regular / down position: Lowered Height is 1¼" / Raised Height is 47¼"
  • Forks in inverted / up position: Lowered Height is 21¼" / Raised Height is 67⁷⁄₈"
  • Lift function operated via a hand-crank winch (lifts forks 1" per crank)
  • Straddle Legs adjust in width from 21¼" I.D. to 36" I.D. (29" O.D. to 44" O.D.)
  • Individual Fork Size: 4" W x 22" L x 1¾" Thick
  • Fixed steel forks (do not adjust horizontally)
  • Caster brakes hold lift truck in place while loading and unloading
  • (2) 8" non-marking rear wheels and (2) 2" front swivel wheels
  • Overall Size: 43⁷⁄₈"W x 42½"L x 67⁵⁄₁₆"H
  • Weight: 200 LBS



  • Deck platform - fits over forks (Model A-LIFT-DK).
  • 10" pneumatic rear wheels (Model A-LIFT-PN).
  • Aluminum Retractable 18"W x 68"H Ladder with 11" rung spacing (Model A-LIFT-LAD).




Vestil A-LIFT-S Hand Winch Lift Truck:
A-LIFT-S500 LBS200 LBS $1,204.00
A-LIFT-DKDeck platform 20"W x 24"L (fits over forks)25 LBS $125.00
A-LIFT-PN10" pneumatic rear wheels 20 LBS $70.00
A-LIFT-LADAluminum Retractable 18"W x 68"H Ladder16 LBS $326.00
