The Valley Craft F87022B6 Platform Lift Truck is a semi-powered material handling solution designed to ergonomically lift and rotate a variety of materials. With its single base unit, it efficiently addresses diverse material handling needs with its 800 LB capacity. This platform lift truck operates as a standalone unit, eliminating the need for a separate forklift. Pneumatic-powered lift system ensures safe and controlled lifting with a manual drive, is suitable for spark-resistant environments. Valley Craft Semi-Powered Platform Lift Truck can raise materials up to 71 inches off the floor, features straddle legs that extend under pallets, shelving, or the outside of drums. The Valley Craft F87022B6 platform lift truck is compatible with interchangeable platforms, forks, and drum attachments. Constructed of heavy gauge steel with premium green powder coat finish for years of long service life.
The Valley Craft F87022B6 Platform Lift Truck is built to order with an estimated lead time to leave the factory of 8 business days.
Specifications:
- Capacity: 800 LBS
- Manual push with air powered hydraulic motor (requires pneumatic air line)
- Max Lift Height: 71”
- Min Center Grip height: 13” off the floor
- Lift Distance: 58”
- Lift speed: 3.4 sec
- Turn radius: 44"
- Rolls on (2) 6″ Front Rigid & (2) 4″ Rear Swivel casters
- Straddle Legs are fixed at 26" I.D.
- Constructed of steel with green powder coat finish
- Ships fully assembled
- Overall size: 43”L x 30”W x 78”H

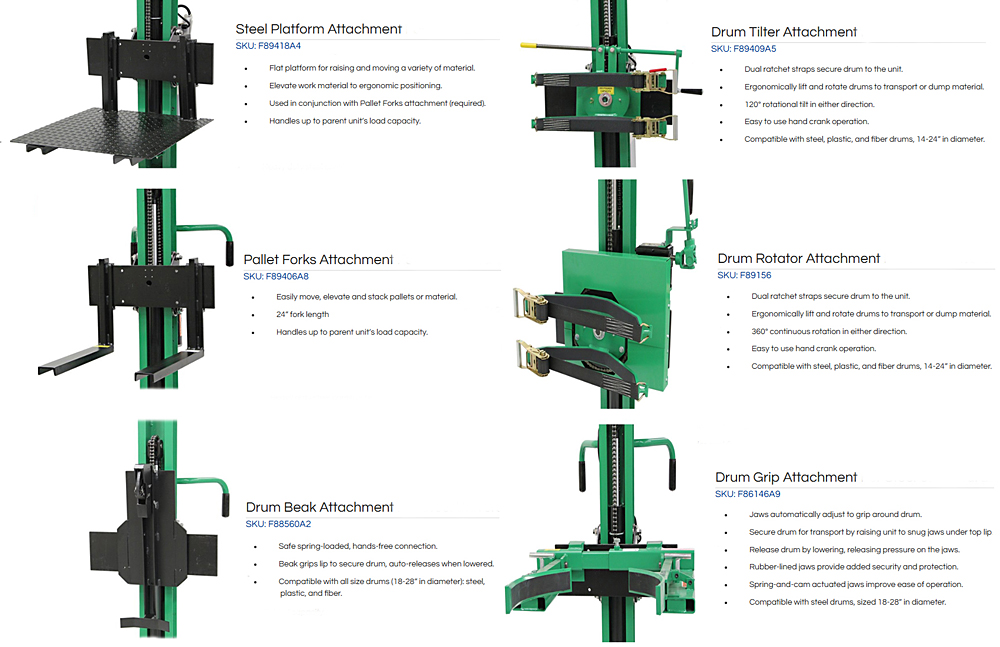

Options:- See Chart Below
