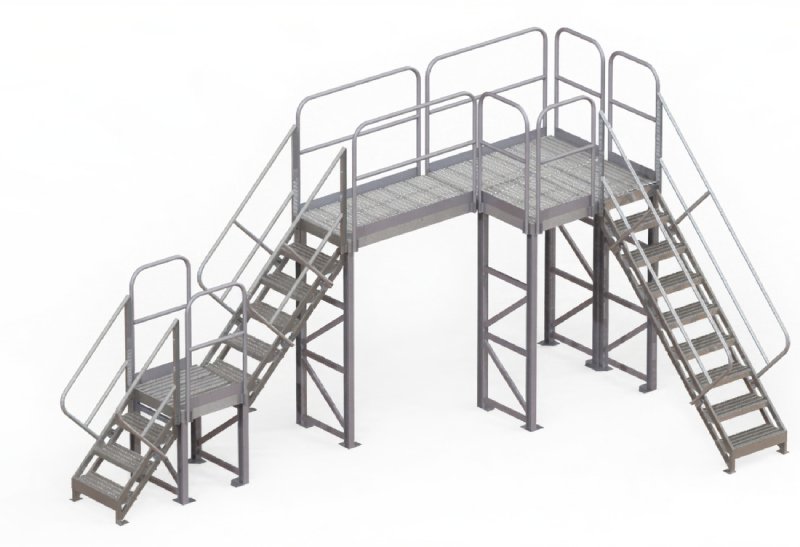

The Tri-Arc Multi-Platform Access System has an 18" to 81" height range, five interchangeable components, and a fully customizable platform and ladder configuration for work at height. Platforms are available in 30", 60", 90", and 120" lengths at a 30" width, and 45-degree incline stairway ladders feature 24" wide steps in 9" height increments, letting users enter or exit an elevated platform or connect two platforms of different heights. Guardrails come in 30" and 60" lengths with a 42" top rail height and 4" kick plate, and platform support legs clear obstructions from 14" to 77" in 9" height increments. Stairway ladder handrails fasten to either side of the ladder and must be ordered to match the ladder height. All components require mounting to a floor surface, with hardware not included. The Tri-Arc Multi-Platform Access System complies with applicable OSHA and ANSI standards.
.gif)
The Tri-Arc Multi-Platform Access System has an estimated lead time to leave the warehouse of 7 to 10 business days.

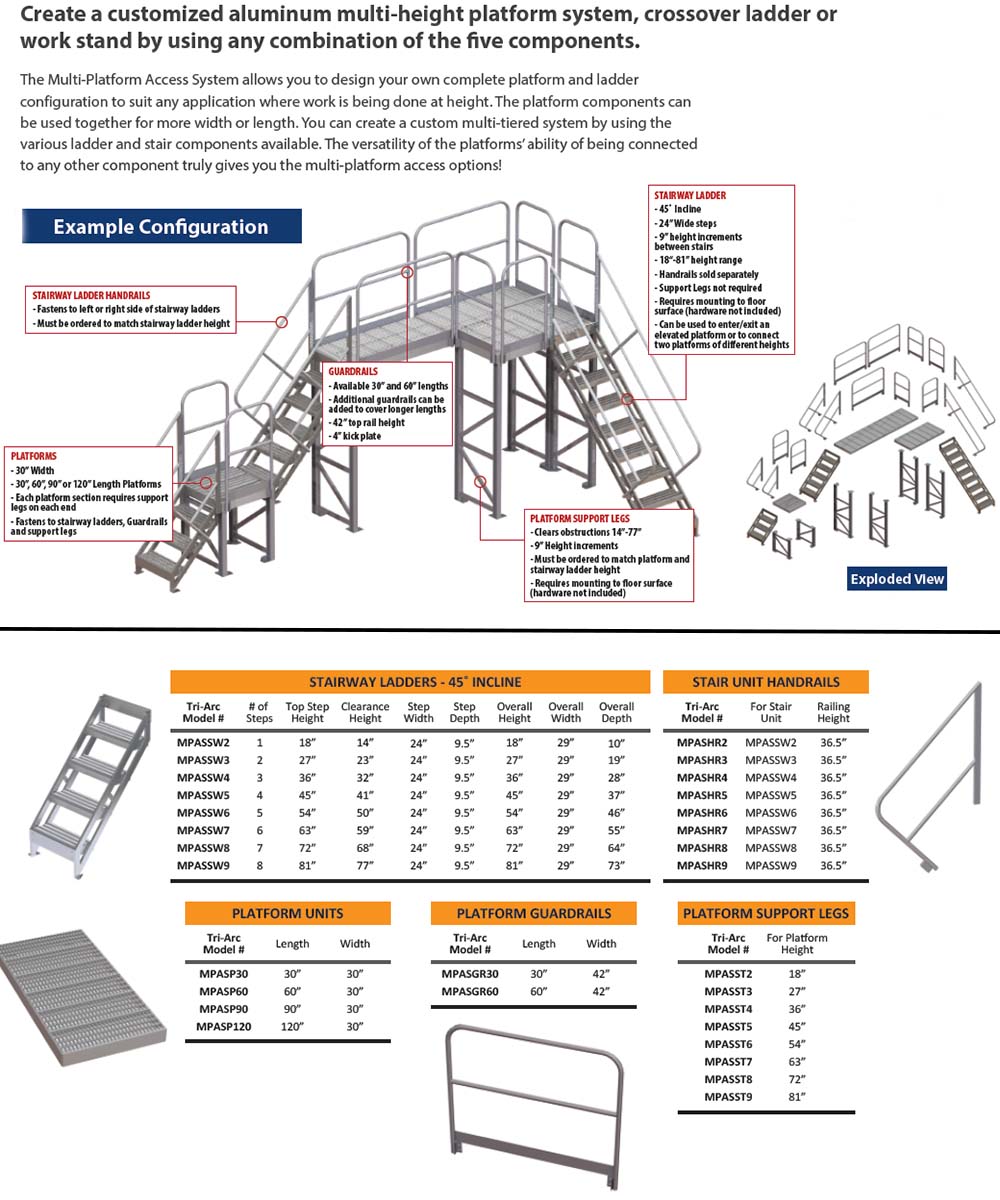

Specifications:
- 18" to 81" overall height range

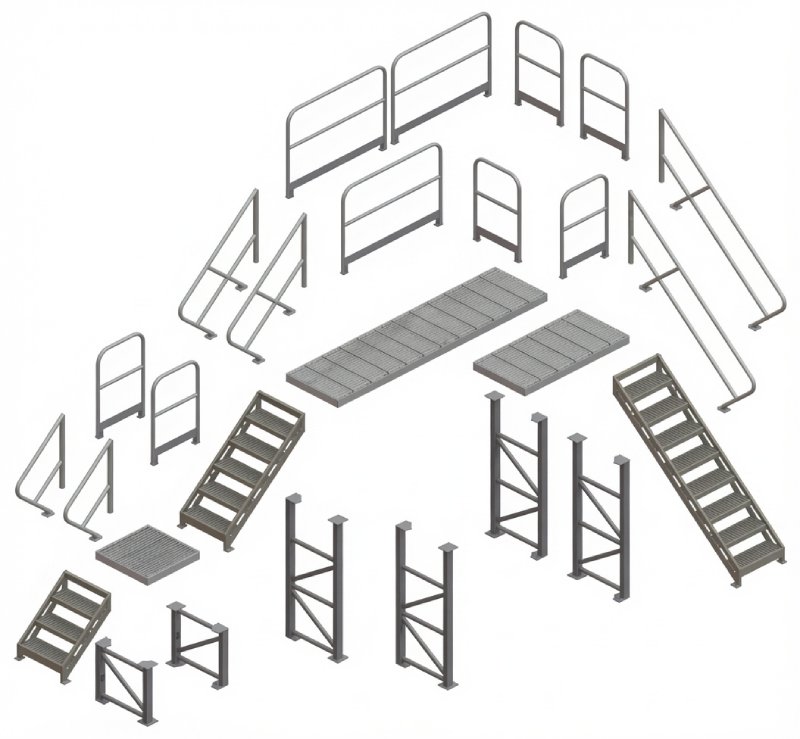

- Five interchangeable components: platforms, stairway ladders, guardrails, support legs, handrails
- Platforms: 30" width, available in 30", 60", 90", and 120" lengths
- Stairway ladders: 45-degree incline, 24" wide steps, 9.5" step depth, 9" height increments
- Guardrails: 30" and 60" lengths, 42" top rail height, 4" kick plate
- Platform support legs: clear obstructions 14"-77", 9" height increments
- Stairway ladder handrails: 36.5" railing height, fastens to either side of ladder
- Aluminum construction
- Requires mounting to floor surface: hardware not included
- Complies with applicable OSHA and ANSI standards
