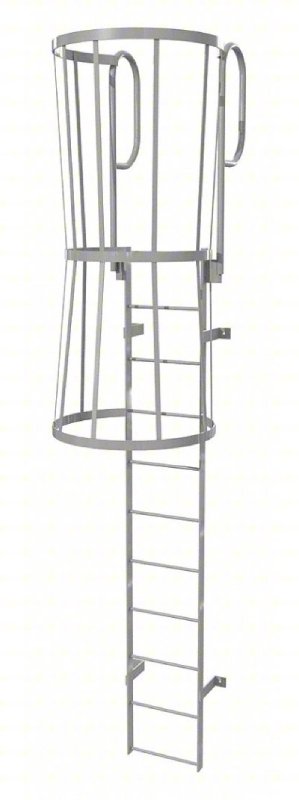

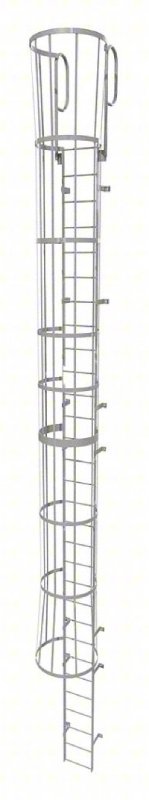

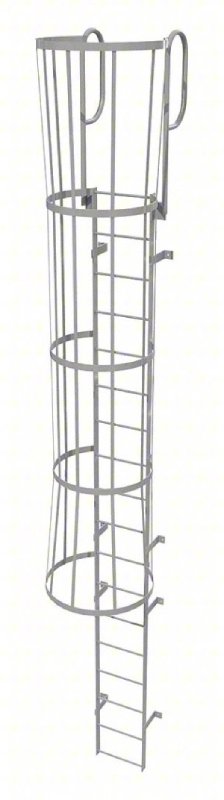

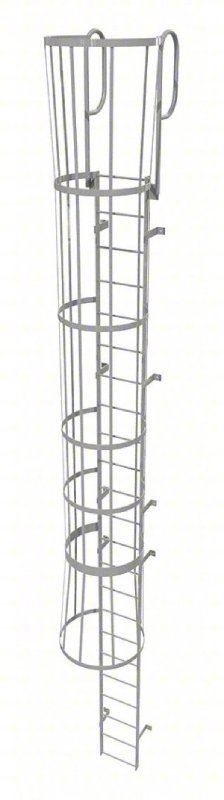

The Tri-Arc Fixed Steel Ladder with Walk-Thru and Cage is a permanently mounted vertical access ladder designed for roof, mezzanine, and machinery access. Available with 11 to 30 rungs and lengths from 10 to 29 feet, this ladder suits a wide range of access needs. Built with 3/4" solid round rungs spaced 12" apart on an 18" wide ladder, this ladder provides a secure and reliable means of vertical ascent. Side rails are constructed from 2-1/2" x 3/8" flat bar steel for superior strength and durability. A full safety cage surrounds the climbing area to provide an added layer of security for vertical climbs at height. The walk-thru configuration features 42" guardrails at the top of the ladder for safe transition onto the platform or roof. The overall ladder width is 36" and the ladder is finished in powder coat gray for long-lasting durability. The Tri-Arc Fixed Steel Ladder with Walk-Thru and Cage ships knocked down and complies with applicable OSHA and ANSI standards.
.gif)
The Tri-Arc Fixed Steel Ladder with Walk-Thru and Cage has an estimated lead time to leave the warehouse of 5 business days.
Specifications:
- Available with 11 to 30 rungs
- Lengths from 10 ft to 29 ft
- 18" ladder width
- 36" overall width
- 3/4" solid round rungs
- 12" spacing between rungs
- 2-1/2" x 3/8" flat bar side rails
- Full safety cage - Begins at the 7th rung on all models
- Powder coat gray finish
- 42" walk-thru guardrails at top of ladder
- Ships knocked down: Assembly required
- Complies with applicable OSHA and ANSI standards
