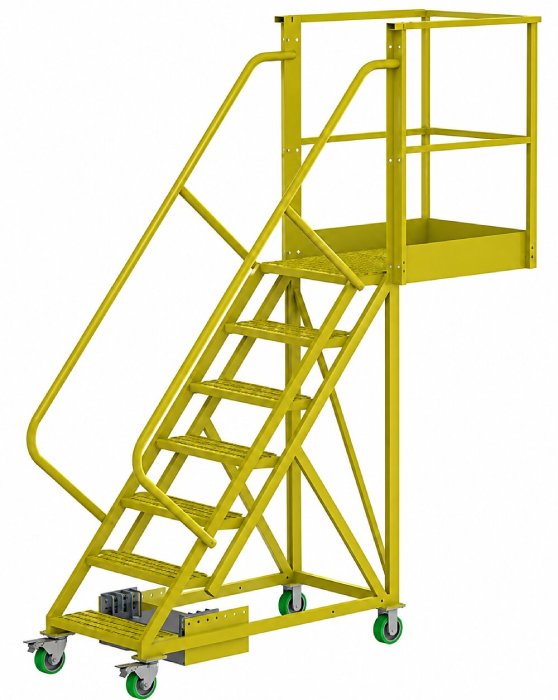

The Tri-Arc 7 Step Cantilever Ladder has a 70" platform height, a 24" wide platform, and a 300 lb. rated capacity. The cantilevered platform is counterweighted and available in lengths ranging from 20" to 40". Rails are constructed from rigid 1-1/16" tubular steel and steps are available with either serrated or perforated tread for high quality slip resistance. The ladder has a sturdy base with an overall assembled height of 112". Platform heights are available from 50" on the 5-step model up to 90" on the 9-step model. Finished in powder coat yellow, the Tri-Arc 7 Step Cantilever Ladder ships knocked down and meets OSHA 1910.29 and ANSI A14.7 standards.
.gif)
The Tri-Arc 7 Step Cantilever Ladder has an estimated lead time to leave the warehouse of 5 business days.
Specifications:
- 300 lb. capacity
- Cantilevered platform lengths of 20", 30", and 40"
- Platform height 70" / Overall height 112"

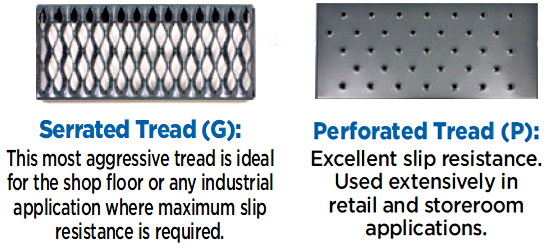

- 24" wide steps with serrated or perforated tread
- Counterweighted for 300 lb. capacity
- 1-1/16" tubular steel construction
- Powder coat yellow finish
- Ships knocked down: Assembly required
- Meets OSHA 1910.29 and ANSI A14.7 standards
