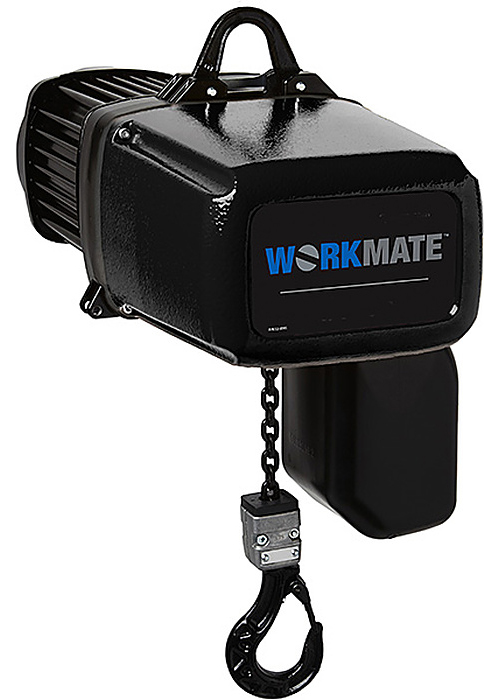

Spanco Workmate 1/4 ton electric chain hoists are compact, lightweight hoists built for repetitive lifting at workstations, assembly lines, and maintenance areas, and they are available in single phase or three phase models so you can match the hoist to your power supply. The single phase SP250 runs on 110V or 230V power with a .4 HP single-speed motor that lifts at 16 FPM, so it can go to work in shops without three phase service, while the three phase SP250 runs on 230V or 460V power with a .6/.15 HP dual-speed motor that lifts at 32 FPM high speed and 8 FPM low speed for precise load positioning. Both models use a single chain fall, carry an H4 duty rating for all-day industrial use, and come standard in 10', 15', or 20' lift heights with your choice of eyebolt or hook suspension. A cast aluminum body and end caps with IP65 protection keep the hoist dust tight and water jet resistant, and the 42V low-voltage controls make the 2-button pendant safer to handle. Inside, a 3-stage helical gearbox, polygon shaft and hub connections, and an easy-to-service slip clutch provide smooth, long-lasting performance, while a maintenance-free DC spring-loaded disc brake holds the load securely when the motor stops. The case-hardened manganese phosphate profile steel load chain offers an 8:1 safety factor and excellent corrosion resistance, and every hoist ships complete with load chain, chain container, 2-button pendant control, power cord, suspension, and load hook. Spanco Workmate 1/4 ton electric chain hoists are backed by a two-year warranty.
10', 15', & 20' lift heights for sale on this page, see chart below. Custom lift heights from 10' to 40' available in 1' increments, please request a quote if you need a custom lift height.
Specifications:
- Capacity: 1/4 Ton (500 LBS)
- Standard Lift Heights: 10', 15', or 20' - custom lift heights from 10' to 40' in 1' increments available
- Suspension: Eyebolt or hook
- Power: SP250 single phase 110V or 230V, 60 Hz | SP250 three phase 230V or 460V, 60 Hz
- SP250 Single Phase: Motor .4 HP single-speed, 1 chain fall | Amp Draw: 9.2 (110V), 3.4 (230V)
- SP250 Single Phase Lift Speed: 16 FPM
- SP250 Three Phase: Motor .6/.15 HP dual-speed, 1 chain fall | Amp Draw: 3.8/3.2 (230V), 1.8/1.3 (460V)
- SP250 Three Phase Lift Speeds: 32 FPM High Speed / 8 FPM Low Speed
- Duty Rating: H4 (HMI)
- Controls: 42V low-voltage control with 2-button pendant
- Protection: IP65 dust tight and water jet resistant housing with built-in drains
- Housing: Cast aluminum body and end caps
- Load Chain: Case-hardened manganese phosphate profile steel chain with corrosion-resistant coating
- Safety Factor: 8:1
- Gearbox: 3-stage gearbox with helical gearing
- Overload Protection: Easy-to-service slip clutch
- Brake: Maintenance-free DC spring-loaded single-disc brake holds the load when power is removed
- Hooks: Durable cast hooks with guided safety latches
- Includes load chain, chain container, 2-button pendant control, 3' power cord, suspension, and load hook
- Two-year warranty on material and workmanship
Options:
- Additional lift heights from 10' to 40' in one-foot increments - Contact HOF for pricing
- Twist lock plug kit(male & female)connects incoming main electrical power to hoist/trolley,
quick connect/disconnect, for 1P/125V, 1P/250V, 3P/250V or 3P/480V - See Chart Below - 575V power - Contact HOF for pricing
