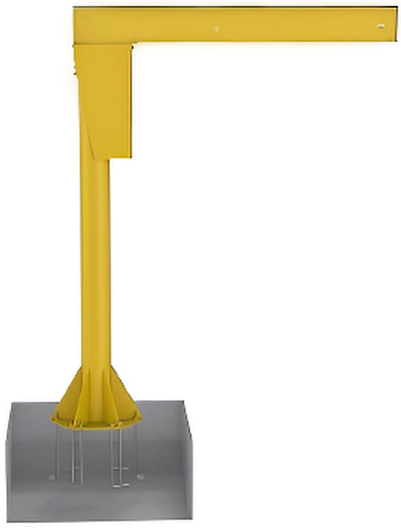

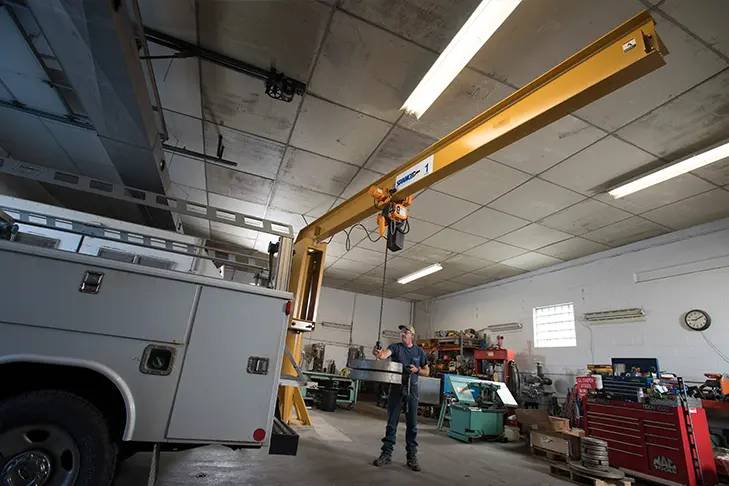

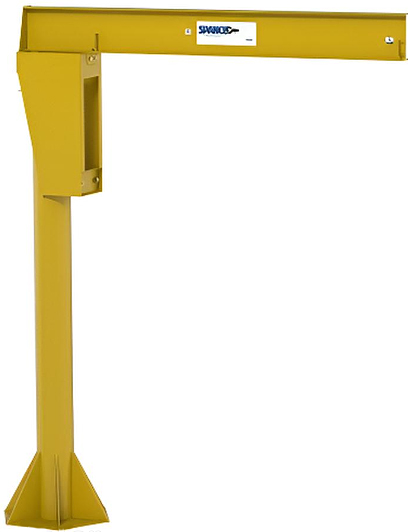

Spanco 500 LB Jib Cranes are designed to lift and rotate loads with ease. Key features include 360° rotating boom, beam spans ranging from 8’ to 50', and heights under beam of 8’ to 40’ allowing these cranes to be useful for a variety of applications. Installation of Spanco jib cranes shown on this page requires the hexagonal base plate to be anchor bolted to a reinforced concrete foundation (3000 PSI) and the crane mast to be bolted to the base plate. The crane’s pipe mast features six gussets that reinforce the connection to the base plate. Additionally, the mast is built for minimum deflection and to resist bending, buckling, crushing, and wear from the trunnion roller assembly. All bearings are designed for a 5,000 hour B-10 lifespan. Each 500 LB jib crane design includes a 15% allowance of nameplate capacity for deadweight of trolley and hoist and an additional 25% allowance for impact. Electric motorized or air powered rotation is available. Trolley and hoist sold separately.
Spanco 500 LB Jib Cranes are built to order with an estimated lead time to leave the warehouse of 3 to 4 weeks.
Models with beam span and height under beam of up to 20' shown in the chart below. Please request a quote for larger models.
Specifications:
- See drawing in Additional Info above for specific crane model dimensions
- Can be equipped for outdoor use - Galvanized or Armorpoxy finish, Stainless steel wear rings & Continuous welds
- Capacity: 1/4 Ton (500 LBS)
- Beam Spans: 8' to 50'
- Under Beam Usable Heights: 8' to 40'
- Manual 360° rotation - motorized & air powered rotation available
- S or W beam depending on model (W beams are wide flange, models with this beam will have a W in the model number)
- Models with beam spans 8' to 12' require 3' concrete depth (E on drawing) and a pad size of 4'x4' (F on drawing)
- Models with beam spans 14' to 20' require 3' concrete depth (E on drawing) and a pad size of 5'x5' (F on drawing)
- Product should be inspected frequently to insure safe operation. Testing and inspection of the crane is the responsibility of the end user after final assembly has been completed. For further details see ASME B30.17.
Options - See Second Chart Below:

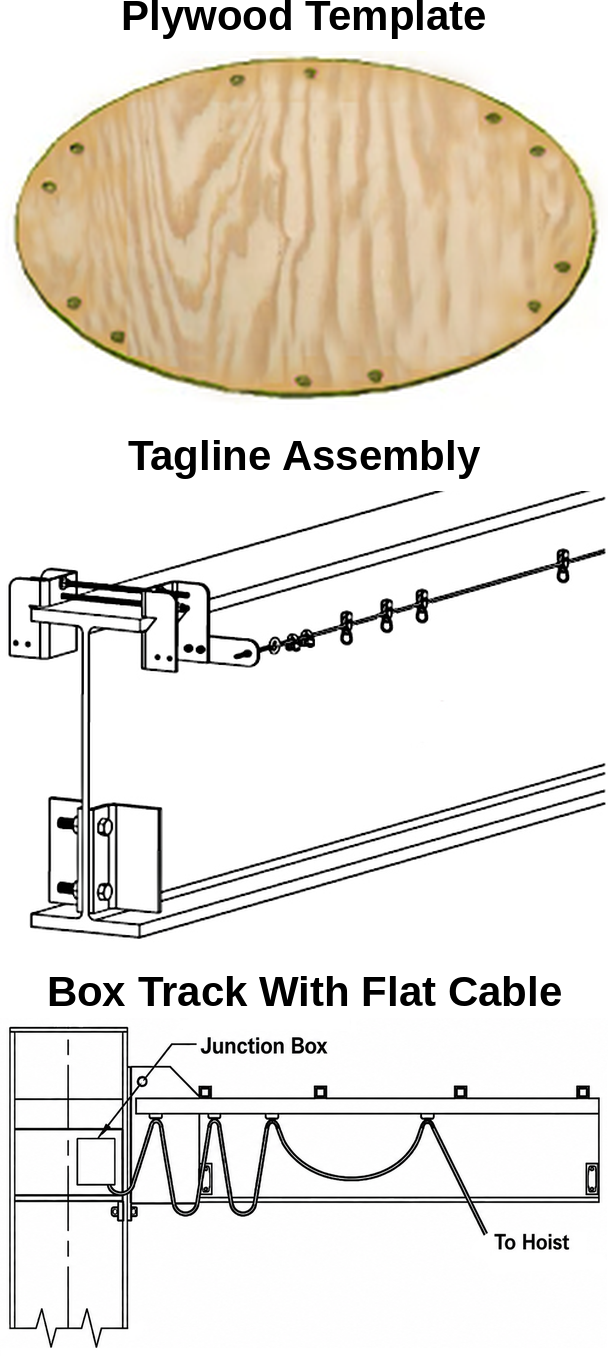

- Anchor Bolt Kit - 1" dia. J bolts - must be set in concrete. Qty 6 or Qty 12 - Models 06-0196, 06-0229
- Plywood Bolt Pattern Template - 24", 30", 36", & 42" diameters - see bolt template dia. in model chart below - Models 04-090, 04-091, 04-092, & 04-093
- Tagline Assembly Kit for hoist power cord management - Models with prefix 04053J
- Box Track For Power - single track & flat 4-conductor #12 AWG cable for hoist power cord management - Models with prefix BT-PO
- Box Track For Power & Control - two tracks & flat 4-conductor #12 AWG cable for trolley and/or hoist power cord management AND pendant control cord management - Models with prefix BT-PC
- Rotation Stops - includes 3 rotation stops, the first stop is factory welded to the back channel, the remaining two stops are welded in place by the customer once the mast has ben assembled - Model 06-0450

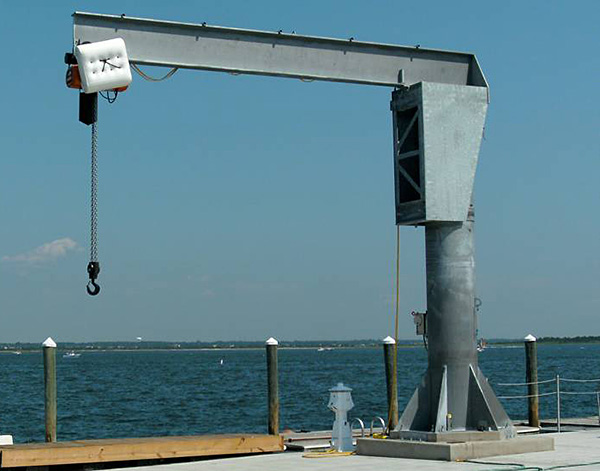

- Equip For Outdoor Use - Galvanized or armorpoxy finish, stainless steel wear rings, continuous welds - Please request a quote
- Motorized Rotation Drive Assembly - consists of spring-loaded, dual poly tires running on the outer surface of the mast that are by a double worm gear. Optional rotation limit switch & motor brake available - Please request a quote
- Top Entry Collector Ring - for use with motorized rotation - allows wiring to be dropped from overhead, fully weatherized, includes tagline assembly, allows for 360° crane rotation - Please request a quote
- Bottom Entry Collector Ring - for use with motorized rotation - supplies electrification to a hoist without regard for any overhead wiring, allows for 360° crane rotation- Please request a quote
- Top or Bottom Entry Air Swivel - for air-operated hoist & boom-hung tools, allows for 360° crane rotation - Please Request A Quote
Hoist and Trolley sold separately. Click link to see our selection: Hoists and Trolleys
